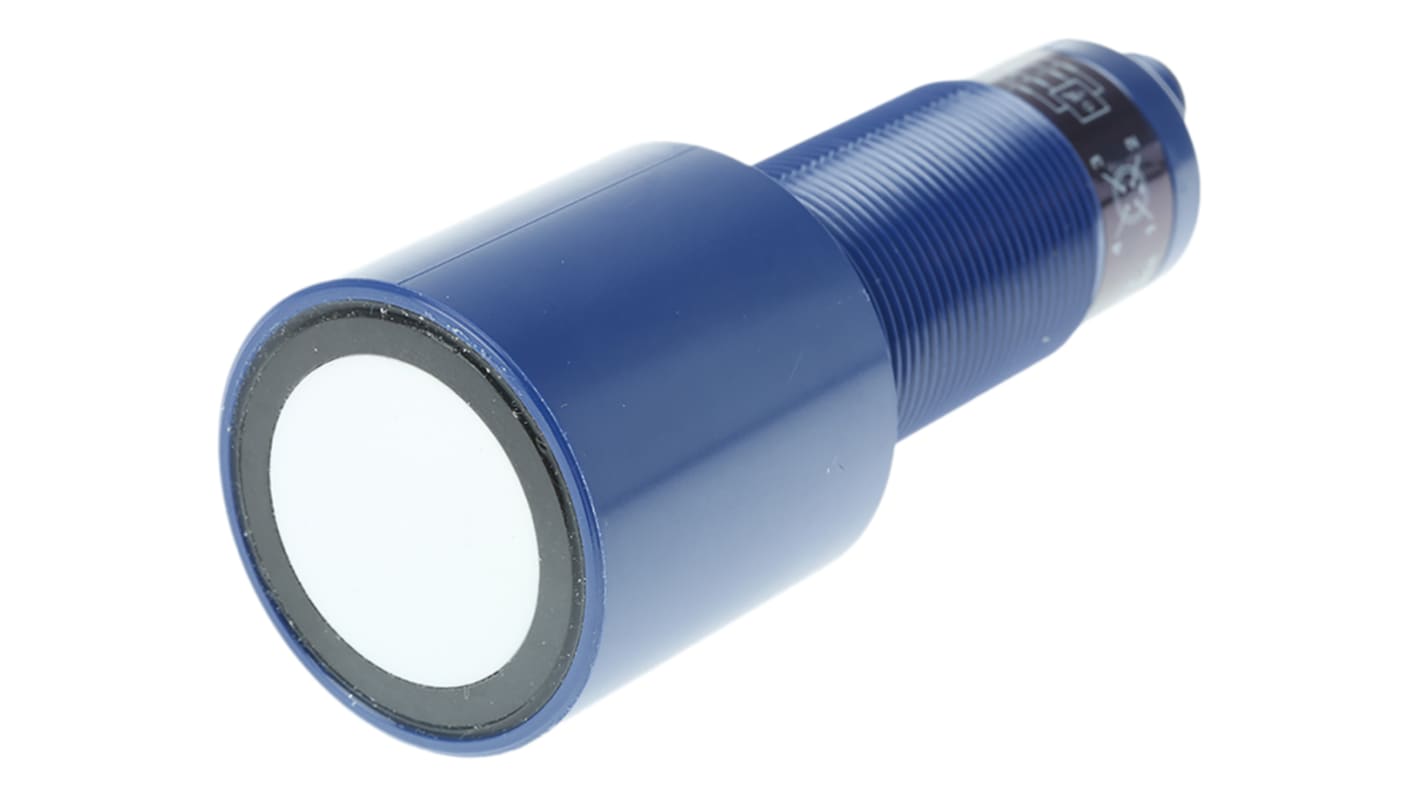

Telemecanique Sensors Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 300 → 8000 mm Detection, Analogue

RS Stock No.:: 612-2162
Mfr. Part No.:: XX930A3A1M12
Brand:: Telemecanique Sensors

Telemecanique Sensors Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 300 → 8000 mm Detection, Analogue

View all Proximity Sensors

Discontinued product

Alternative

This product is not currently available. Here is our alternative recommendation.

Schneider Electric Ultrasonic Barrel-Style Ultrasonic Sensor, M30, 8 mm Detection, PNP Output

RS Stock No.: 254-6452

Price Each

£786.52

(exc. VAT)

£943.82

(inc. VAT)

RS Stock No.:: 612-2162
Mfr. Part No.:: XX930A3A1M12
Brand:: Telemecanique Sensors

Technical Reference

Legislation and Compliance

COO (Country of Origin):: US

Product Details

Cylindrical Ultrasonic 0-10V - 8m Sn

IP65
Voltage output
M30 cylindrical body
Operating distance: adjustable using using teach mode
Minimum object size to be detected: 50.8mm up to 4732mm
Overall beam angle: 16°
Operating temperature: -20 to 60°C
Sensing face material: Epoxy
Body material: ULTEM®

OsiSense

Osisense ultrasonic sensors are ideal for use in many applications as detection of any material including metal, plastic, liquid and any colour is possible, the main types of applications are:

Food and Beverage processing.

For liquid level detection without contact with the liquid

Detection of powders

Detection of glass bottles

Packaging.

Detection of objects passing on a conveyor.

Automobile industry.

Monitoring presence of car windscreens.

Specifications

Attribute	Value
Sensor Technology	Ultrasonic
Body Style	Barrel
Thread Size	M30 x 1.5
Output Type	Analogue
Detection Range	300 → 8000 mm
Terminal Type	4-Pin M12 Connector
Supply Voltage	15 → 24 V dc
IP Rating	IP65
Length	106mm
Maximum DC Voltage	24V
Switching Current	100 mA
Housing Material	Plastic
Maximum Operating Temperature	+60°C
Short Circuit Overload Protection	Yes
Reverse Polarity Protection	Yes
Minimum Operating Temperature	-20°C
