Pepperl + Fuchs Inductive Threaded Barrel Proximity Sensor, M12, 2 mm Detection, PNP NC, 15 → 34 V dc
- RS Stock No.:
- 506-2570
- Mfr. Part No.:
- 3RG4012-0AF33-PF
- Brand:
- Pepperl + Fuchs

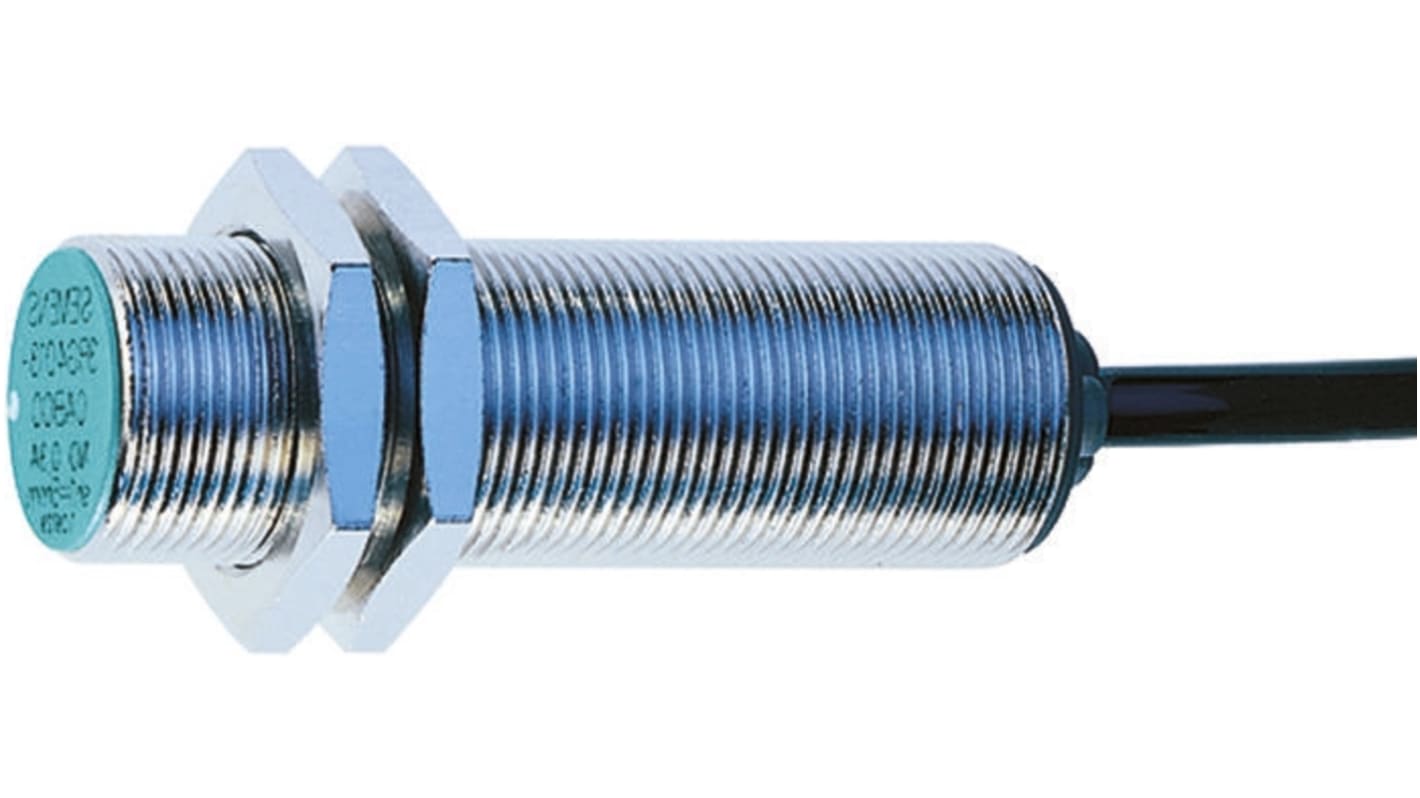

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£54.53
(exc. VAT)
£65.44
(inc. VAT)
- RS Stock No.:
- 506-2570
- Mfr. Part No.:
- 3RG4012-0AF33-PF
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Thread Size | M12 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 2 mm | |
| Digital Switching Output Type | PNP | |
| Output Function | NC | |
| Connection Type | Pre-Cabled | |
| Cable Length | 2m | |
| Supply Voltage | 15 → 34 V dc | |
| Length | 35mm | |
| IP Rating | IP67 | |
| Mounting Type | Flush | |
| Housing Material | Brass Nickel Plated | |
| Maximum DC Voltage | 34V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Reverse Polarity Protection | Yes | |
| Switching Frequency | 1.2 kHz | |
| Short Circuit Overload Protection | Yes | |
| Switching Current | 150 mA | |
| Maximum Switching Frequency | 1.2kHz | |
| Shielding | Shielded | |
Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Thread Size M12 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 2 mm | ||
Digital Switching Output Type PNP | ||
Output Function NC | ||
Connection Type Pre-Cabled | ||
Cable Length 2m | ||
Supply Voltage 15 → 34 V dc | ||
Length 35mm | ||
IP Rating IP67 | ||
Mounting Type Flush | ||
Housing Material Brass Nickel Plated | ||
Maximum DC Voltage 34V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Reverse Polarity Protection Yes | ||
Switching Frequency 1.2 kHz | ||
Short Circuit Overload Protection Yes | ||
Switching Current 150 mA | ||
Maximum Switching Frequency 1.2kHz | ||
Shielding Shielded | ||
- COO (Country of Origin):
- CZ
BERO 3RG40 - Inductive proximity switch, M8-M30 design
BERO inductive proximity switch
Switching distance1.5 → 10 mm
Short, cylindrical design
Embedded installation
Cable or plug version
LED status display
Switching distance1.5 → 10 mm
Short, cylindrical design
Embedded installation
Cable or plug version
LED status display
Features
Spurious switch-on pulse
Short-circuit proof / overload resistant
Polarity protection
Wire breakage protection
Anti-inductive protection
Short-circuit proof / overload resistant
Polarity protection
Wire breakage protection
Anti-inductive protection
Approvals
CE
