Telemecanique Sensors XS618B1MAL2 Threaded Barrel Inductive Proximity Sensor, M18 x 1 2-Wire XS 264V 8 mm 264 V ac 264 V
- RS Stock No.:
- 444-3344
- Distrelec Article No.:
- 302-25-557
- Mfr. Part No.:
- XS618B1MAL2
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£88.90
(exc. VAT)
£106.68
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 20 left, ready to ship
- Plus 4 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.90 |
*price indicative
- RS Stock No.:
- 444-3344
- Distrelec Article No.:
- 302-25-557
- Mfr. Part No.:
- XS618B1MAL2
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Thread Size | M18 x 1 | |
| Product Type | Inductive Proximity Sensor | |
| Body Style | Threaded Barrel | |
| Length | 62mm | |
| IP Rating | IP68, IP69K | |
| Terminal Type | M18 | |
| Mount Type | Flush | |
| Maximum Supply Voltage | 264V | |
| Housing Material | Nickel Plated Brass | |
| Maximum DC Voltage | 264V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Detection | 8mm | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Switching Current | 300mA | |
| Series | XS | |
| Shielding | Shielded | |
| Maximum Switching Frequency | 1kHz | |
| Maximum AC Voltage | 264V ac | |
| Output Type | 2-Wire | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Thread Size M18 x 1 | ||
Product Type Inductive Proximity Sensor | ||
Body Style Threaded Barrel | ||
Length 62mm | ||
IP Rating IP68, IP69K | ||
Terminal Type M18 | ||
Mount Type Flush | ||
Maximum Supply Voltage 264V | ||
Housing Material Nickel Plated Brass | ||
Maximum DC Voltage 264V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Detection 8mm | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Switching Current 300mA | ||
Series XS | ||
Shielding Shielded | ||
Maximum Switching Frequency 1kHz | ||
Maximum AC Voltage 264V ac | ||
Output Type 2-Wire | ||
RoHS Status: Exempt
- COO (Country of Origin):
- ID

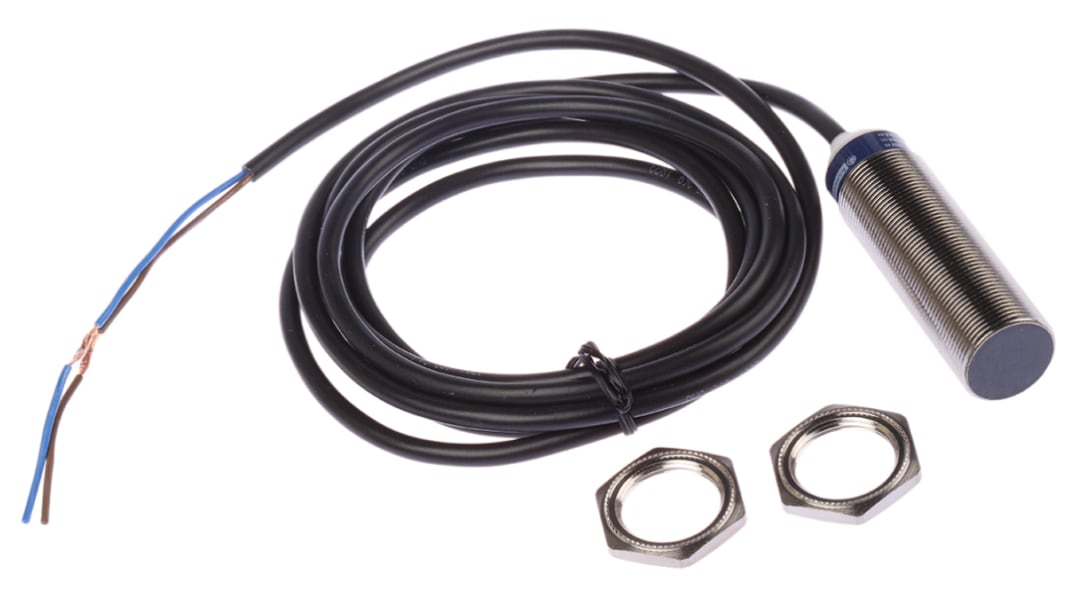

Telemecanique Sensors Series XS Inductive Proximity Sensor, 8mm Maximum Detection, M18 Thread Size - XS618B1MAL2
This inductive proximity sensor detects metallic targets without contact and is designed for industrial sensing in machinery and automation systems. It is built for embedded installation with a threaded barrel format and connects via a simple two‑wire arrangement suitable for Compact control circuits.
Features and Benefits:
• Shielded M18 thread for secure flush mounting and stable sensing performance • 8mm detection range to detect nearby metal components reliably • 300 mA switching capacity to drive small loads directly • Operates up to 1 kHz switching frequency for fast response cycles • 264V rated supply compatibility for AC and DC systems • Withstands ambient temperatures up to 70 °C for hot environments
Applications
• Suitable for position sensing on conveyor machinery • Ideal for proximity detection in packaging equipment • Used for end‑of‑travel sensing on linear actuators • Can be used for metal part presence checks in assembly lines • Used with control panels requiring IP‑rated sensors in wash‑down areas
What connection and mounting format does it use?
It employs a two‑wire connection and an M18x1 threaded barrel for flush installation into panels or brackets.
How does the sensor cope with harsh cleaning or high‑pressure washdowns?
The enclosure meets high ingress protection levels, providing resistance to dust, immersion and high‑pressure, high‑temperature wash procedures.
Can it be used where temperatures drop below freezing?
The operational lower temperature limit is -25 °C, allowing use in many chilled or unheated environments.
What material is used for the housing and why is that relevant?
The housing is nickel‑plated brass which offers mechanical strength and corrosion resistance suited to industrial settings.
What switching behaviour should integrators expect under Rapid cycling?
The device supports switching up to 1 kHz and is suitable for applications requiring frequent, repeatable detections.
