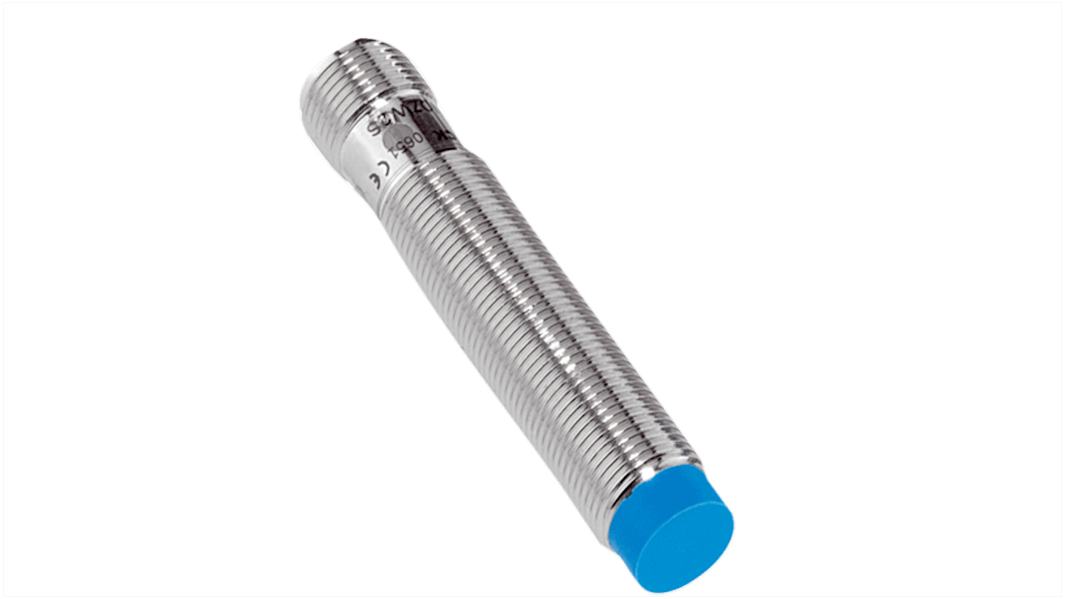

SICK Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, 10 → 30 V dc
- RS Stock No.:
- 285-1952
- Mfr. Part No.:
- IME12-04NNOZC0S
- Brand:
- SICK
Subtotal (1 unit)*
£24.12
(exc. VAT)
£28.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.12 |
*price indicative
- RS Stock No.:
- 285-1952
- Mfr. Part No.:
- IME12-04NNOZC0S
- Brand:
- SICK
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Thread Size | M12 | |
| Sensor Technology | Inductive | |
| Detection Range | 4 mm | |
| Body Style | Threaded Barrel | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP67 | |
| Length | 65mm | |
| Mounting Type | Non-Flush | |
| Width | 12mm | |
| Housing Material | Brass Nickel Plated | |
| Maximum DC Voltage | 30V | |
| Minimum Operating Temperature | -25°C | |
| Switching Current | 200 mA | |
| Reverse Polarity Protection | Yes | |
| Maximum Switching Frequency | 2000Hz | |
| Shielding | Shielded | |
| Short Circuit Overload Protection | Yes | |
| Series | IME12 | |
| Switching Frequency | 2 kHz | |
| Maximum Operating Temperature | +75°C | |
Select all | ||
|---|---|---|
Brand SICK | ||
Thread Size M12 | ||
Sensor Technology Inductive | ||
Detection Range 4 mm | ||
Body Style Threaded Barrel | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP67 | ||
Length 65mm | ||
Mounting Type Non-Flush | ||
Width 12mm | ||
Housing Material Brass Nickel Plated | ||
Maximum DC Voltage 30V | ||
Minimum Operating Temperature -25°C | ||
Switching Current 200 mA | ||
Reverse Polarity Protection Yes | ||
Maximum Switching Frequency 2000Hz | ||
Shielding Shielded | ||
Short Circuit Overload Protection Yes | ||
Series IME12 | ||
Switching Frequency 2 kHz | ||
Maximum Operating Temperature +75°C | ||
