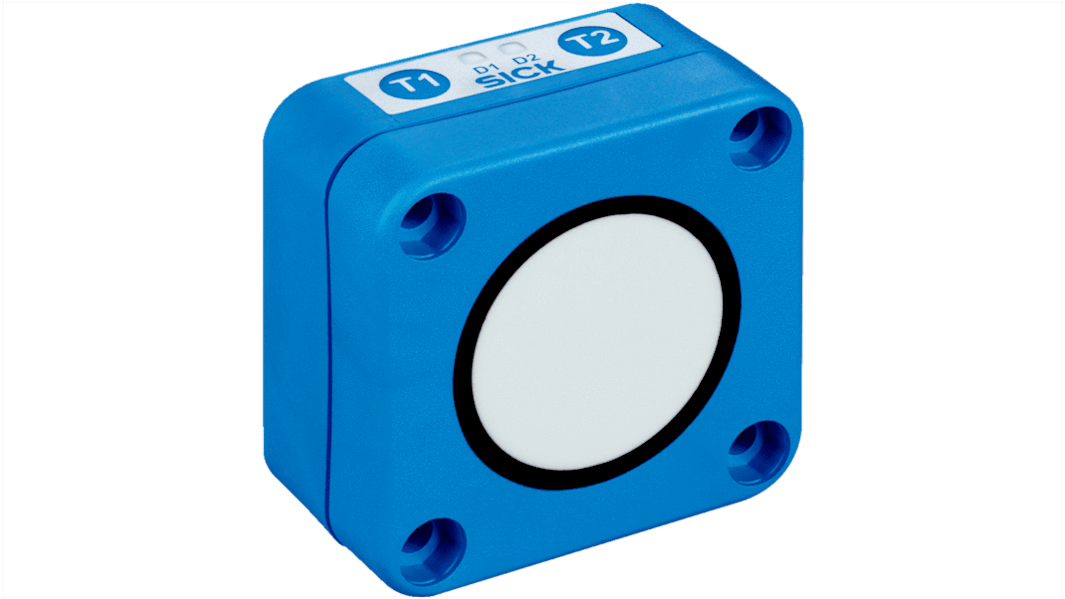

Sick UC30 Series Ultrasonic Rectangular-Style Ultrasonic Sensor, M12 x 1, 350 - 3400 mm Detection, PNP Output, 9
- RS Stock No.:
- 267-2084
- Mfr. Part No.:
- UC30-214162
- Brand:
- Sick
Available to back order for despatch 11/06/2024
Added
Price Each
£315.02
(exc. VAT)
£378.02
(inc. VAT)
Units | Per unit |
1 + | £315.02 |
- RS Stock No.:
- 267-2084
- Mfr. Part No.:
- UC30-214162
- Brand:
- Sick
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Overview
The sensors of the UC30 product family impress with excellent performance in a compact cubic housing. Due to color-independent detection, high contamination tolerance and outstanding background suppression, UC30 sensors deliver stable measurement results even under challenging conditions. Various output signals with sensing ranges of up to 8,000 mm as well as high measurement accuracy due to the integrated temperature compensation leave no applications unsolved.
Teach-in buttons and IO-Link also extend the diagnostic and configuration options of these ultrasonic sensors.
At a glance
Reliable measurement, regardless of material color, transparency, gloss, or ambient light
Rugged housing with teach-in buttons
Sensing ranges up to 8,000 mm
Analog output, push-pull digital output with IO-Link or two PNP/NPN digital outputs
Immune to dirt, dust, humidity, and fog
Adjustable sensitivity
Rugged housing with teach-in buttons
Sensing ranges up to 8,000 mm
Analog output, push-pull digital output with IO-Link or two PNP/NPN digital outputs
Immune to dirt, dust, humidity, and fog
Adjustable sensitivity
Your Benefit
Compact cubic housing for straightforward machine integration
Rugged, plastic housing ensures highest plant availability
Various output signals for solving complex applications available
IO-Link with many diagnostic options for fault-free operation and simple maintenance
Teach-in buttons for fast and easy commissioning
Rugged ultrasonic technology, measures reliably even in dirty, dusty, humid, and foggy conditions
Integrated temperature compensation ensures high measurement accuracy at all times for optimum process quality
Rugged, plastic housing ensures highest plant availability
Various output signals for solving complex applications available
IO-Link with many diagnostic options for fault-free operation and simple maintenance
Teach-in buttons for fast and easy commissioning
Rugged ultrasonic technology, measures reliably even in dirty, dusty, humid, and foggy conditions
Integrated temperature compensation ensures high measurement accuracy at all times for optimum process quality
Applications
Level regulation for liquids and bulk materials
Detection, measurement and positioning of dark, shiny, and transparent materials
Diameter check for metal, paper, and plastic coils
Continuous detection of fabrics and wire grids
Collision avoidance
Outdoor applications
Detection, measurement and positioning of dark, shiny, and transparent materials
Diameter check for metal, paper, and plastic coils
Continuous detection of fabrics and wire grids
Collision avoidance
Outdoor applications
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
Specifications
Attribute | Value |
---|---|
Sensor Technology | Ultrasonic |
Body Style | Rectangular |
Thread Size | M12 x 1 |
Output Type | PNP |
Detection Range | 350 - 3400 mm |
Terminal Type | M12 5 Pin Connector |
Series | UC30 |
Supply Voltage | 9 → 30 V dc |
IP Rating | IP67 |
Length | 62.2mm |
Switching Frequency | 4 Hz |
Width | 32.7mm |
Depth | 62.2mm |
Maximum DC Voltage | 30V |
Mounting Type | Flush Mount |
Switching Current | 200 mA |
Maximum Switching Frequency | 4Hz |
Maximum Operating Temperature | +70°C |
Housing Material | Plastic |
Minimum Operating Temperature | -25°C |
Short Circuit Overload Protection | Yes |
Standards Met | CE, EAC |
Reverse Polarity Protection | Yes |
