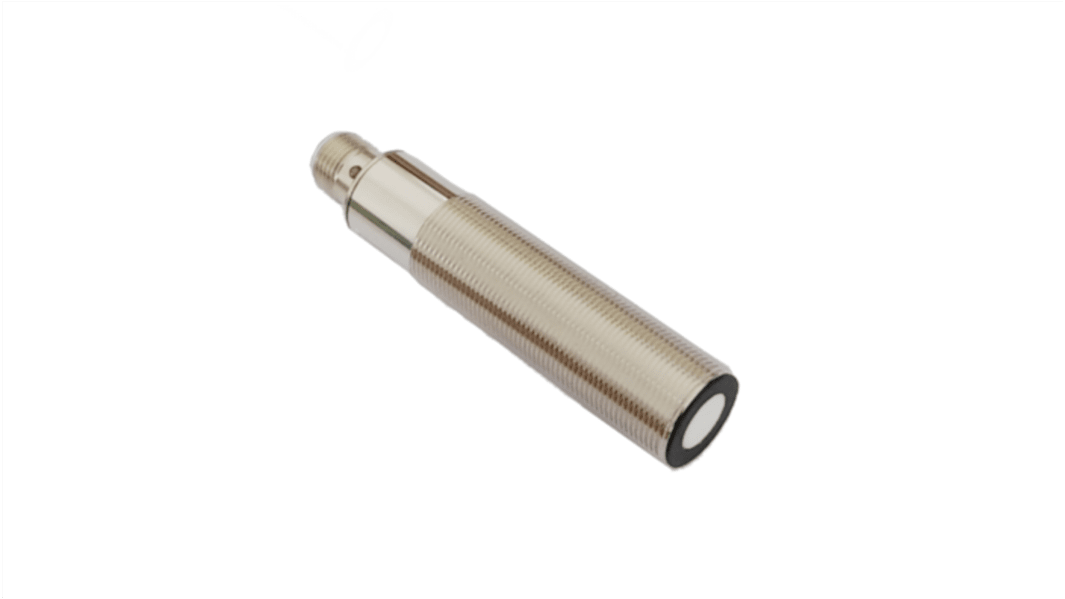

RS PRO Ultrasonic Threaded Barrel Proximity Sensor, M18, 500 mm Detection, PNP NO/NC, 10 → 30 V dc

Subtotal (1 unit)*

£195.85

(exc. VAT)

£235.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£195.85

*price indicative

RS Stock No.:
218-1178
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thread Size

M18

Sensor Technology

Ultrasonic

Detection Range

500 mm

Body Style

Threaded Barrel

Digital Switching Output Type

PNP

Output Function

NO/NC

Connection Type

M12

Supply Voltage

10 → 30 V dc

Length

86mm

IP Rating

IP67

Housing Material

Brass Nickel Plated

Width

18mm

Maximum DC Voltage

30V

Minimum Operating Temperature

-25°C

Maximum Switching Frequency

10Hz

Short Circuit Overload Protection

Yes

Switching Current

200 mA

Shielding

Shielded

Switching Frequency

10 Hz

Series

M18

Reverse Polarity Protection

Yes

Maximum Operating Temperature

+75°C

COO (Country of Origin):
CN

RS PRO Ultrasonic Proximity Sensor


Introducing the range of RS PRO Ultrasonic Proximity Sensors, ideal for obstacle detection, distance measurement and liquid and solid material sensing applications. These versatile and high-quality sensors are an essential addition to any environment where measurement of attributes like pressure, thickness, etc. are integral to business operations, like manufacturing plants and industrial environments. Thanks to the internal temperature compensation, each measurement is picked up with high accuracy, even in challenging environments where factors like dirt, dust or fog are present. Whether it’s position detection, detection of solid, liquid or powdered materials or distance measurement, with the RS PRO seal of approval, you are guaranteed a premium performance product, without the premium product price tag.

Features and Benefits:


  • This range of RS PRO ultrasonic sensors offer precise detection, long-term reliability and high accuracy thanks to internal temperature compensation

  • The sensors are completely encapsulated, which greatly increases shock and vibration resistance, and are easily integrated into the system due to the compact design

  • They also have an IP rating of 67 and are built from a nickel-plated brass housing for extra durability and protection, offering peace of mind and reliability

  • RS PRO ultrasonic sensors are ideal for use in demanding and adverse environments where accurate measurement is essential, and contamination needs to be avoided

  • The proximity sensor's operating temperature ranges from -25°C to +75°C

  • Additional features include a short circuit, power up pulse and reverse polarity protection

  • Available in a range of output types as well as a wide variety of detection ranges

Applications:


An ultrasonic proximity sensor is a non-contact device that is able to detect the presence or absence of virtually any object regardless of material. The sensors do this by emitting a high-frequency sonic pulse and monitoring the signal that is reflected back, picking up the difference in measurement, for example, if an object or obstacle is detected. An output signal is given when this happens – this is most commonly based on the measurement parameters and configuration the sensor has been set up with – and is then converted into a measurement distance for the user to evaluate.
These sensors are especially useful for production or laboratory environments where target objects and certain attributes need to be monitored for effective working and for the guarantee of quality, like measuring pressure, flow, thickness, liquid level and so much more.

Approvals and Certifications:


  • EN60947-5-2

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
