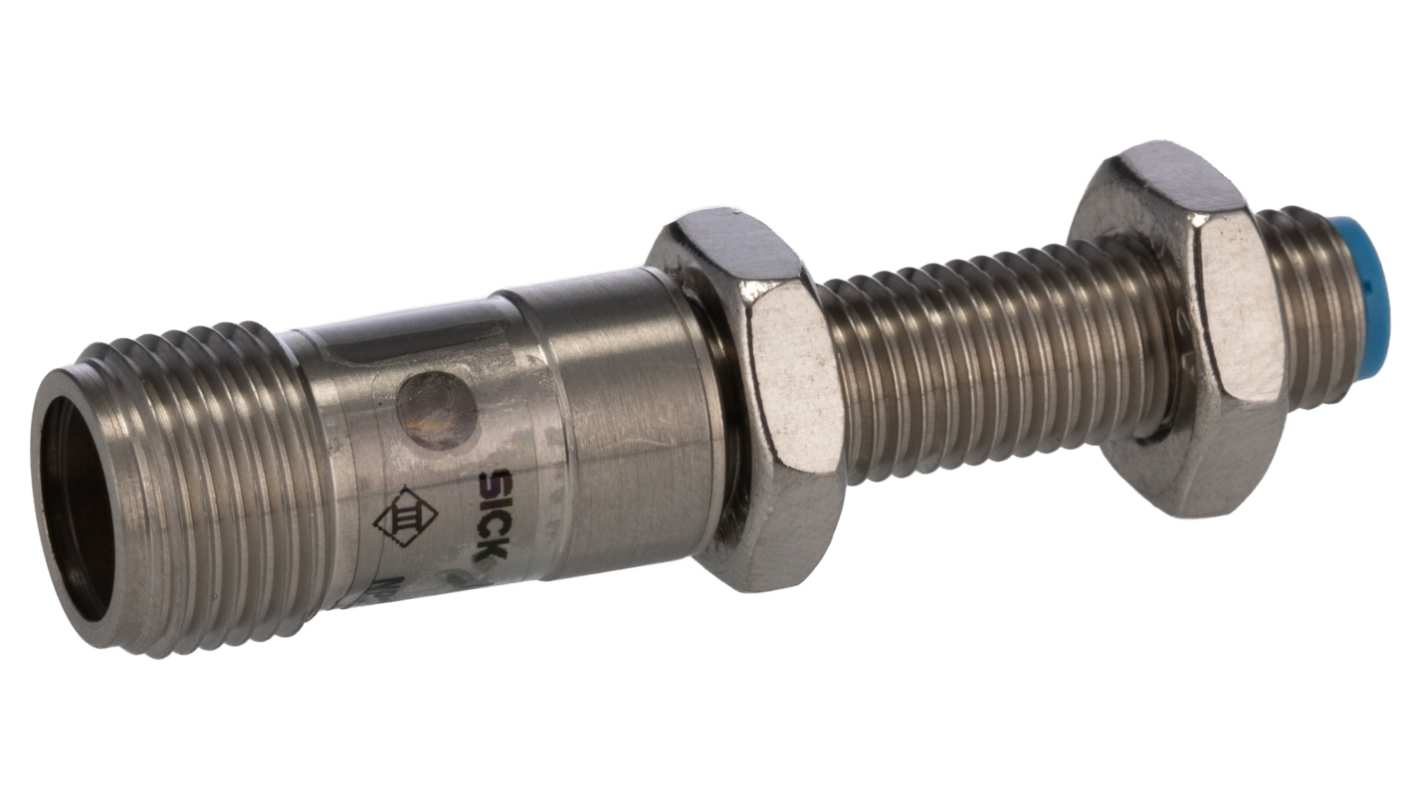

SICK Inductive Threaded Barrel Proximity Sensor, M8, 1.5 mm Detection, PNP NO, 10 → 30 V dc

RS Stock No.:: 209-3416
Mfr. Part No.:: IME08-1B5PSVC0S
Brand:: SICK

SICK Inductive Threaded Barrel Proximity Sensor, M8, 1.5 mm Detection, PNP NO, 10 → 30 V dc

Subtotal (1 unit)*

£36.98

(exc. VAT)

£44.38

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£36.98

*price indicative

Enhance Your Sensor Setup

Proximity sensors perform best when paired with the right accessories. From mounting brackets to protective covers and connectors, our sensor accessories help you install, secure, and optimise your sensing solution. If you're browsing proximity sensors, don’t forget to explore our accessories range to complete your setup and ensure reliable, long-term performance.

Shop Now

RS Stock No.:: 209-3416
Mfr. Part No.:: IME08-1B5PSVC0S
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Thread Size	M8
	Sensor Technology	Inductive
	Detection Range	1.5 mm
	Body Style	Threaded Barrel
	Output Function	NO
	Digital Switching Output Type	PNP
	Connection Type	M12
	Supply Voltage	10 → 30 V dc
	Length	52mm
	IP Rating	IP67
	Mounting Type	Flush
	Width	8mm
	Housing Material	Stainless Steel
	Maximum DC Voltage	30V
	Diameter	8 mm
	Minimum Operating Temperature	-25°C
	Series	IME
	Switching Frequency	4 kHz
	Reverse Polarity Protection	Yes
	Maximum Switching Frequency	4kHz
	Shielding	Shielded
	Standards Met	CE
	Maximum Operating Temperature	+75°C
	Short Circuit Overload Protection	Yes
	Switching Current	200 mA

	Select all
	Brand SICK
	Thread Size M8
	Sensor Technology Inductive
	Detection Range 1.5 mm
	Body Style Threaded Barrel
	Output Function NO
	Digital Switching Output Type PNP
	Connection Type M12
	Supply Voltage 10 → 30 V dc
	Length 52mm
	IP Rating IP67
	Mounting Type Flush
	Width 8mm
	Housing Material Stainless Steel
	Maximum DC Voltage 30V
	Diameter 8 mm
	Minimum Operating Temperature -25°C
	Series IME
	Switching Frequency 4 kHz
	Reverse Polarity Protection Yes
	Maximum Switching Frequency 4kHz
	Shielding Shielded
	Standards Met CE
	Maximum Operating Temperature +75°C
	Short Circuit Overload Protection Yes
	Switching Current 200 mA

Datasheet - IME08-1B5PSVC0S

COO (Country of Origin):: HU

SICK IME Series Proximity Sensor, 1.5mm Detection Range, PNP Output Type - IME08-1B5PSVC0S

This proximity sensor is an inductive device designed for efficient metal detection in various applications. With a detection range of 1.5mm and a flush mounting type, this M8 proximity sensor integrates seamlessly into automated systems. Featuring a robust stainless steel housing that ensures durability, it operates effectively within a supply voltage range of 10 to 30V DC. The sensor is rated IP67, making it resistant to dust and water, ideal for industrial environments.

Features & Benefits

• Inductive technology enhances reliability in metal detection
• PNP output function allows easy integration into control systems
• Compact M8 threaded barrel construction offers versatile installation
• High-frequency switching capability up to 4 kHz ensures rapid response
• Reverse polarity protection safeguards against wiring errors
• Short circuit overload protection enhances operational safety

Applications

• Utilised in automation systems for position sensing
• Implemented in robotics for object detection and avoidance
• Used with machinery for workpiece detection and monitoring
• Suitable for use in harsh industrial environments for reliable operation

How does the housing material contribute to the sensor's longevity?

The stainless steel construction provides excellent resistance to corrosion and mechanical impacts, prolonging the sensor's operational lifespan even in challenging environments.

What are the implications of the IP67 rating for this sensor?

The IP67 rating indicates the sensor's ability to withstand complete dust ingress and can endure immersion in water up to a depth of 1metre, making it suitable for outdoor and washdown applications.

Can this sensor be used in low-temperature environments?

Yes, it operates effectively in temperatures as low as -25°C, making it ideal for refrigerated settings or harsh winter conditions.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
