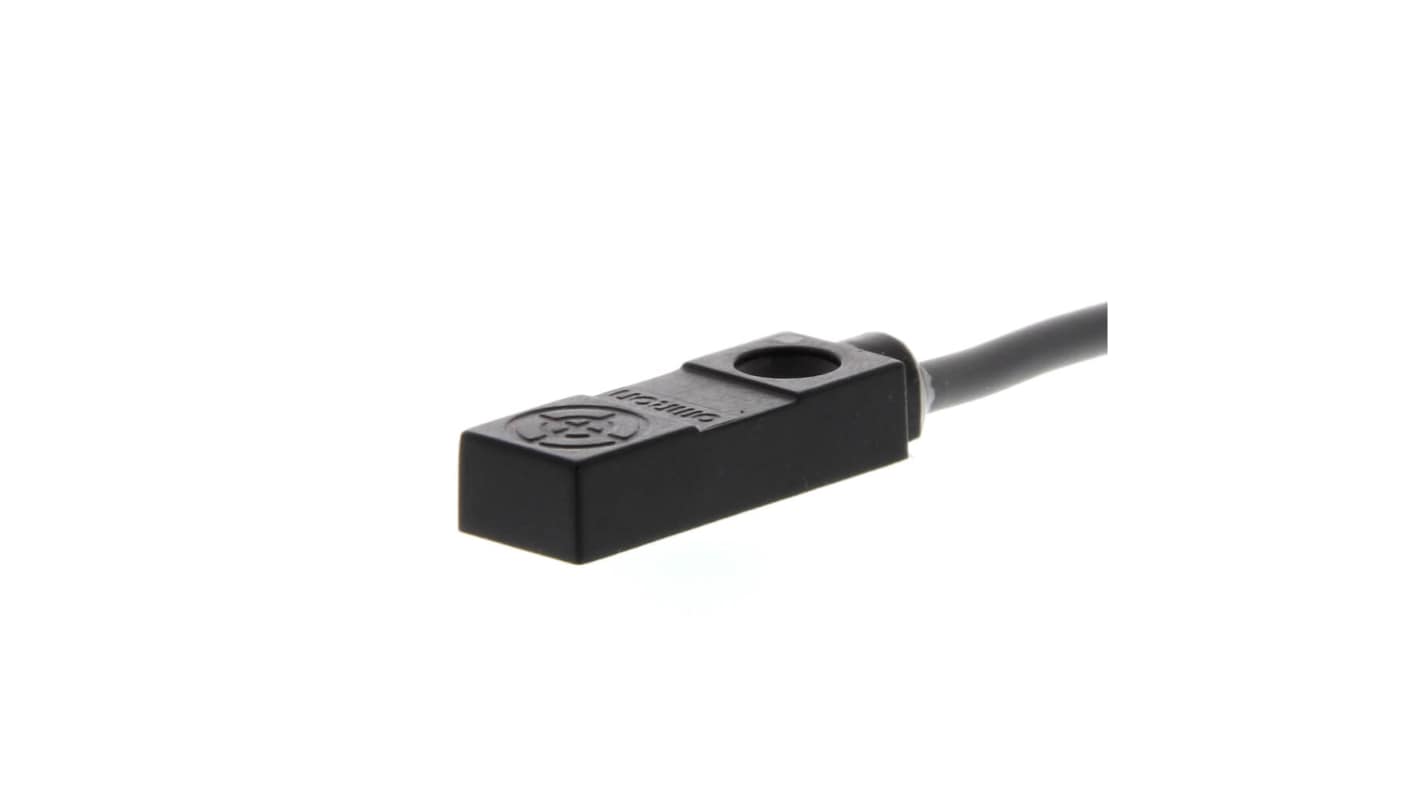

Omron Inductive Block Proximity Sensor, 3 mm Detection, NPN NC, 12 → 24 V dc
- RS Stock No.:
- 200-6008
- Mfr. Part No.:
- TL-W3MC2 2M
- Brand:
- Omron
Subtotal (1 unit)*
£64.94
(exc. VAT)
£77.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £64.94 |
*price indicative
- RS Stock No.:
- 200-6008
- Mfr. Part No.:
- TL-W3MC2 2M
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Sensor Technology | Inductive | |
| Detection Range | 3 mm | |
| Body Style | Block | |
| Output Function | NC | |
| Digital Switching Output Type | NPN | |
| Cable Length | 2m | |
| Connection Type | Pre-Cabled | |
| Supply Voltage | 12 → 24 V dc | |
| Length | 25mm | |
| IP Rating | IP67 | |
| Mounting Type | Non-Flush | |
| Housing Material | ABS | |
| Width | 10mm | |
| Maximum DC Voltage | 24V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Switching Frequency | 500Hz | |
| Switching Current | 100 mA | |
| Standards Met | CE | |
| Shielding | Unshielded | |
| Series | TL-W | |
| Switching Frequency | 500 Hz | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Overload Protection | Yes | |
| Depth | 6mm | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Sensor Technology Inductive | ||
Detection Range 3 mm | ||
Body Style Block | ||
Output Function NC | ||
Digital Switching Output Type NPN | ||
Cable Length 2m | ||
Connection Type Pre-Cabled | ||
Supply Voltage 12 → 24 V dc | ||
Length 25mm | ||
IP Rating IP67 | ||
Mounting Type Non-Flush | ||
Housing Material ABS | ||
Width 10mm | ||
Maximum DC Voltage 24V | ||
Minimum Operating Temperature -25°C | ||
Maximum Switching Frequency 500Hz | ||
Switching Current 100 mA | ||
Standards Met CE | ||
Shielding Unshielded | ||
Series TL-W | ||
Switching Frequency 500 Hz | ||
Reverse Polarity Protection Yes | ||
Short Circuit Overload Protection Yes | ||
Depth 6mm | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- CN
Omron TL-W Series Proximity Sensor, 3mm Detection Range, 2m Cable Length - TL-W3MC2 2M
This inductive proximity sensor is designed for high precision in detecting metallic objects at a distance of 3mm. With its compact dimensions of 25mm x 10mm x 6mm, it is ideal for various industrial applications where space and accuracy are critical. The sensor operates between a supply voltage of 12V to 24V DC and is pre-cabled for ease of installation.
Features & Benefits
• Utilises NPN output for reliable switching functionality
• Compact block body style for non-flush mounting options
• Maximum switching frequency of 500Hz for efficient operation
• Operating temperature range of -25°C to +70°C for versatility
• Compact block body style for non-flush mounting options
• Maximum switching frequency of 500Hz for efficient operation
• Operating temperature range of -25°C to +70°C for versatility
Applications
• Ideal for automation sys tems requiring precise object detection
• Used in assembly lines for near-object sensing tasks
• Suitable for equipment that operates in harsh environmental conditions
• Effective in robotic systems for distance measurement to metal parts
• Used in assembly lines for near-object sensing tasks
• Suitable for equipment that operates in harsh environmental conditions
• Effective in robotic systems for distance measurement to metal parts
What is the significance of the IP67 rating?
The IP67 rating ensures complete protection against dust ingress and allows immersion in water up to 1m for 30 minutes, making the sensor suitable for demanding environments.
How does this sensor handle reverse polarity?
It features built-in reverse polarity protection, ensuring that incorrect wiring won’t damage the sensor, thus providing reliable operation.
What are the implications of the maximum switching frequency?
A maximum switching frequency of 500Hz enables rapid detection and response, facilitating high-speed operations in automation and process control applications.
Can this sensor be used in low-temperature environments?
Yes, it operates efficiently in temperatures as low as -25°C, making it suitable for use in cold environments without performance degradation.
