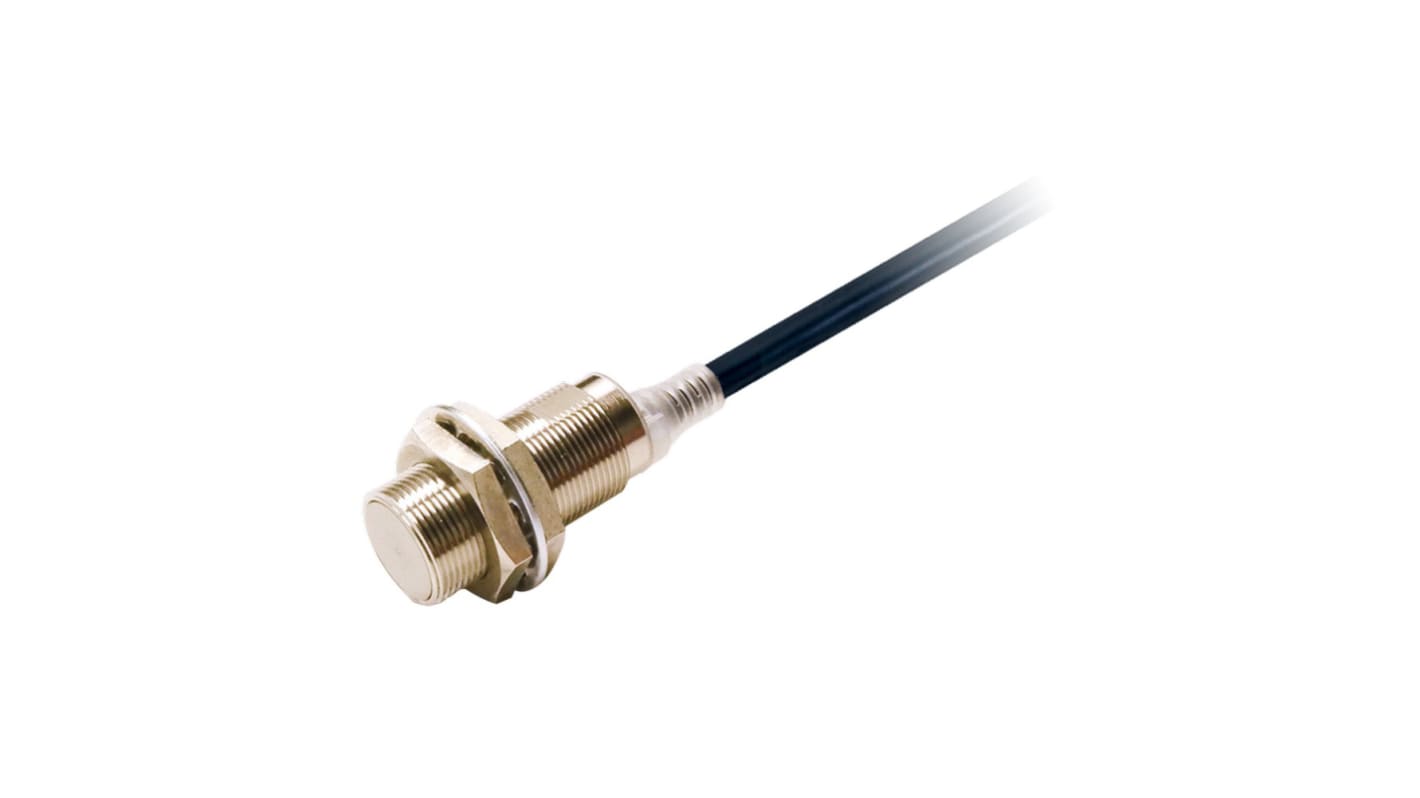

Omron Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 10 → 30 V dc

RS Stock No.:: 188-9089
Distrelec Article No.:: 302-33-828
Mfr. Part No.:: E2E-X8B1T18 2M
Brand:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 10 → 30 V dc

Subtotal (1 unit)*

£39.76

(exc. VAT)

£47.71

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 410 unit(s) shipping from 06 October 2025
Plus 80 unit(s) shipping from 06 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£39.76

*price indicative

RS Stock No.:: 188-9089
Distrelec Article No.:: 302-33-828
Mfr. Part No.:: E2E-X8B1T18 2M
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Thread Size	M18
	Sensor Technology	Inductive
	Detection Range	8 mm
	Body Style	Threaded Barrel
	Digital Switching Output Type	PNP
	Output Function	NO
	Cable Length	2m
	Connection Type	Pre-Cabled
	Supply Voltage	10 → 30 V dc
	Length	55.3mm
	IP Rating	IP67, IP67G, IP69K
	Mounting Type	Quasi-Flush
	Housing Material	Brass
	Width	18mm
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-25°C
	Shielding	Shielded
	Maximum Switching Frequency	500Hz
	Switching Current	16 mA
	Switching Frequency	500 Hz
	Series	E2E-NEXT
	Communication Protocol	IO-LINK
	Depth	13mm
	Reverse Polarity Protection	Yes
	Maximum Operating Temperature	+70°C
	Short Circuit Overload Protection	Yes
	Standards Met	CE

	Select all
	Brand Omron
	Thread Size M18
	Sensor Technology Inductive
	Detection Range 8 mm
	Body Style Threaded Barrel
	Digital Switching Output Type PNP
	Output Function NO
	Cable Length 2m
	Connection Type Pre-Cabled
	Supply Voltage 10 → 30 V dc
	Length 55.3mm
	IP Rating IP67, IP67G, IP69K
	Mounting Type Quasi-Flush
	Housing Material Brass
	Width 18mm
	Maximum DC Voltage 30V
	Minimum Operating Temperature -25°C
	Shielding Shielded
	Maximum Switching Frequency 500Hz
	Switching Current 16 mA
	Switching Frequency 500 Hz
	Series E2E-NEXT
	Communication Protocol IO-LINK
	Depth 13mm
	Reverse Polarity Protection Yes
	Maximum Operating Temperature +70°C
	Short Circuit Overload Protection Yes
	Standards Met CE

Datasheet

OMRON Proximity Sensor, Nickel-Plated Brass Body, Shielded - E2E NEXT Series - E2E-X8B1T18 2M

For stable ferrous metal object detection without the risk of collision, turn to this inductive proximity sensor from OMRON. Its extended sensing range gives you the benefit of accurate component spotting, even if equipment vibration increases the detection distance. This helps to keep automated equipment, such as robots, running smoothly and cuts down on the chance of false detection. Smart IO-Link communication makes data acquisition and predictive maintenance a cinch, to improve your plant's overall efficiency. As this technology also directs you to the source of issues, repair jobs are a breeze.

Features & Benefits

• Simple design minimises the risk of installation errors
• Bright LED indicator is visible from any angle for quick visual diagnostics
• PVC cable jacket resists most oils, making it compatible with harsh operating environments
• Durable nickel-plated brass body for an extended service life

Applications

• Packaging facilities
• Industrial conveyors
• Food processing plants
• Automotive manufacturing

How big is this proximity sensor?

A compact overall length of 55.3mm and width of 18mm make this component suitable for use in constricted areas. Its small size also allows you to downsize machinery and take advantage of reduced power consumption.
