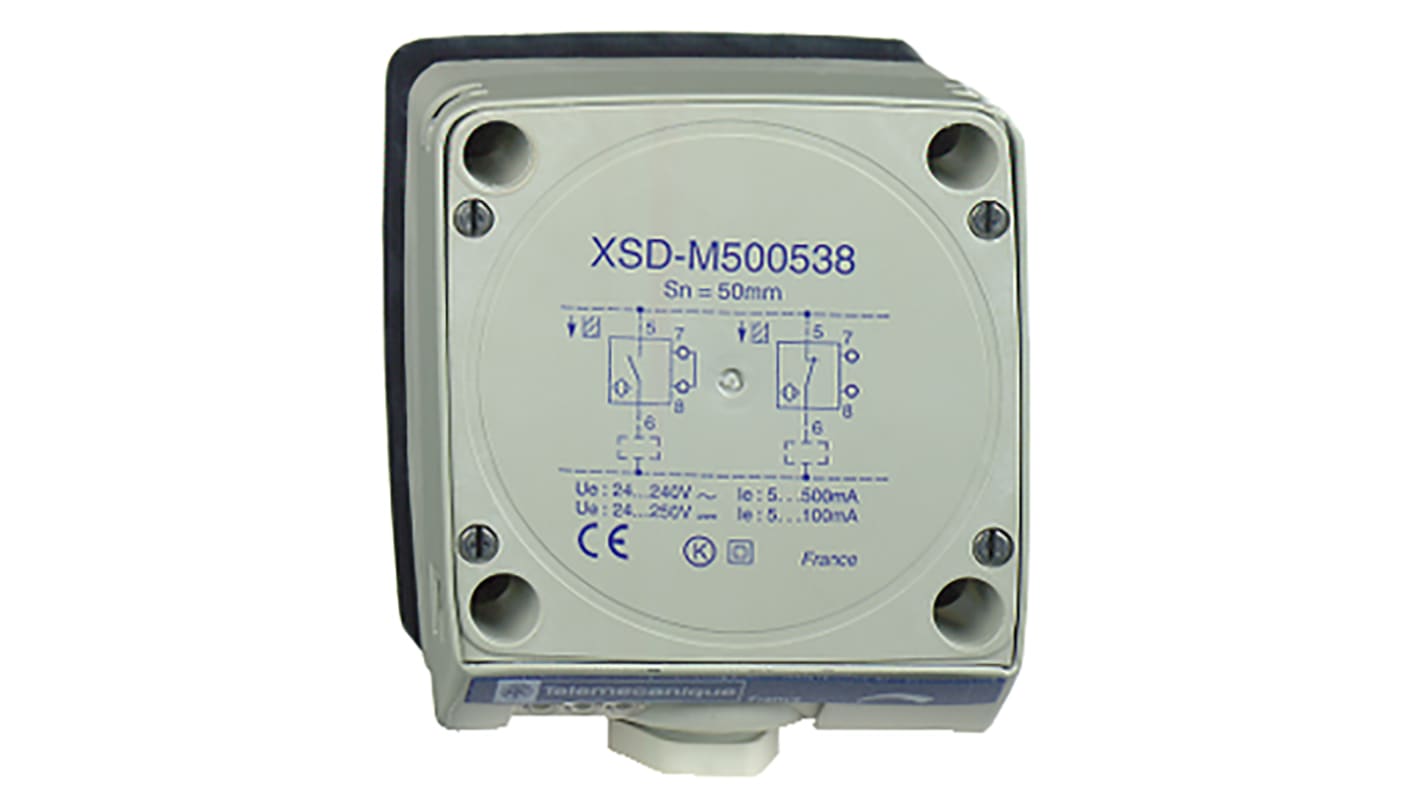

Telemecanique Sensors Inductive Block-Style Proximity Sensor, 60 mm Detection, 20 → 264 V ac/dc, IP67

View all Proximity Sensors
Discontinued
RS Stock No.:
179-9946
Mfr. Part No.:
XSDM600539
Brand:
Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all

Brand

Telemecanique Sensors

Sensor Technology

Inductive

Body Style

Block

Detection Range

60 mm

Terminal Type

PG 13.5 Gland

Supply Voltage

20 → 264 V ac/dc

IP Rating

IP67

Length

80mm

Width

40mm

Depth

100mm

Maximum AC Voltage

240V

Maximum DC Voltage

240V

Mounting Type

Non-Flush

Switching Current

100 mA, 500 mA

Maximum Switching Frequency

10Hz

Housing Material

Plastic

Maximum Operating Temperature

+70°C

Standards Met

CCC Certificate

Minimum Operating Temperature

-25°C

COO (Country of Origin):
FR

Telemecanique Inductive Proximity Sensors XS.


Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.


  • Flush and Non-Flush (shielded and non-shielded).

  • Flat form.

  • Short and long body.

  • PNP and NPN versions (compatible with PLCs and controllers).

  • 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?


Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.


  • Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.

  • Material working, machine tools. Packaging. Food and beverage. Robotics.

XSDM600539 General Purpose Inductive Proximity Sensor (XS).


  • XSD Inductive Proximity Sensor (part of the OsiSense XS range).

  • Flat Form 80 x 80 x 40.

  • Fixed body.

  • Non-flush mount.

  • Plastic body, Front detection.

  • Discrete signal, 2-wire.

  • 60 mm (nominal sensing range).

  • Output 1 NO or 1 NC, Programmable, AC/DC Circuit.

  • Screw clamp terminals.

  • [Us] rated supply voltage 12 to 240 V ac/dc.

  • 1 x Cable entry tapped for Pg 13.5 cable gland.

  • Height 100 mm, Width 80 mm, Depth 40 mm.

  • IP67.

  • CE marked.

Certificates.


  • CCC.
