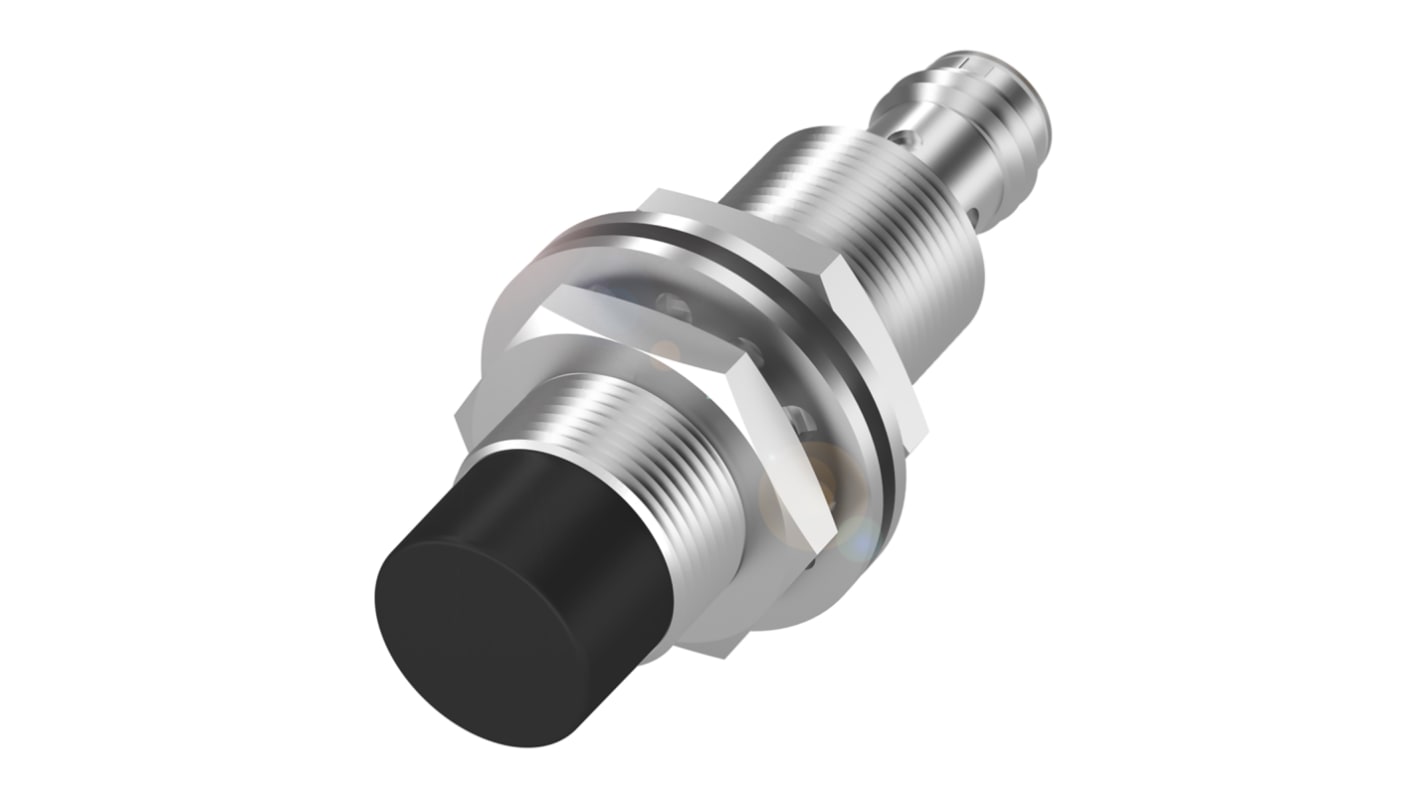

BALLUFF Barrel-Style Proximity Sensor, M18 x 1, 20 mm Detection, PNP-NO Output, 10 → 30 V dc, IP68
- RS Stock No.:
- 179-6300
- Mfr. Part No.:
- BES M18MG-PSC20F-S04G
- Brand:
- BALLUFF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£84.29
(exc. VAT)
£101.15
(inc. VAT)
- RS Stock No.:
- 179-6300
- Mfr. Part No.:
- BES M18MG-PSC20F-S04G
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Thread Size | M18 x 1 | |
| Body Style | Barrel | |
| Output Type | PNP-NO | |
| Detection Range | 20 mm | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP68 | |
| Width | 12mm | |
| Depth | 66mm | |
| Maximum DC Voltage | 30V | |
| Switching Current | 200 mA | |
| Housing Material | Brass | |
| Maximum Switching Frequency | 400Hz | |
| Maximum Operating Temperature | +70°C | |
| Standards Met | CE Certified, cULus Listed, EAC | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| Reverse Polarity Protection | Yes | |
Select all | ||
|---|---|---|
Brand BALLUFF | ||
Thread Size M18 x 1 | ||
Body Style Barrel | ||
Output Type PNP-NO | ||
Detection Range 20 mm | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP68 | ||
Width 12mm | ||
Depth 66mm | ||
Maximum DC Voltage 30V | ||
Switching Current 200 mA | ||
Housing Material Brass | ||
Maximum Switching Frequency 400Hz | ||
Maximum Operating Temperature +70°C | ||
Standards Met CE Certified, cULus Listed, EAC | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
Reverse Polarity Protection Yes | ||
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 ´ 80 mm square dimensions.
The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
