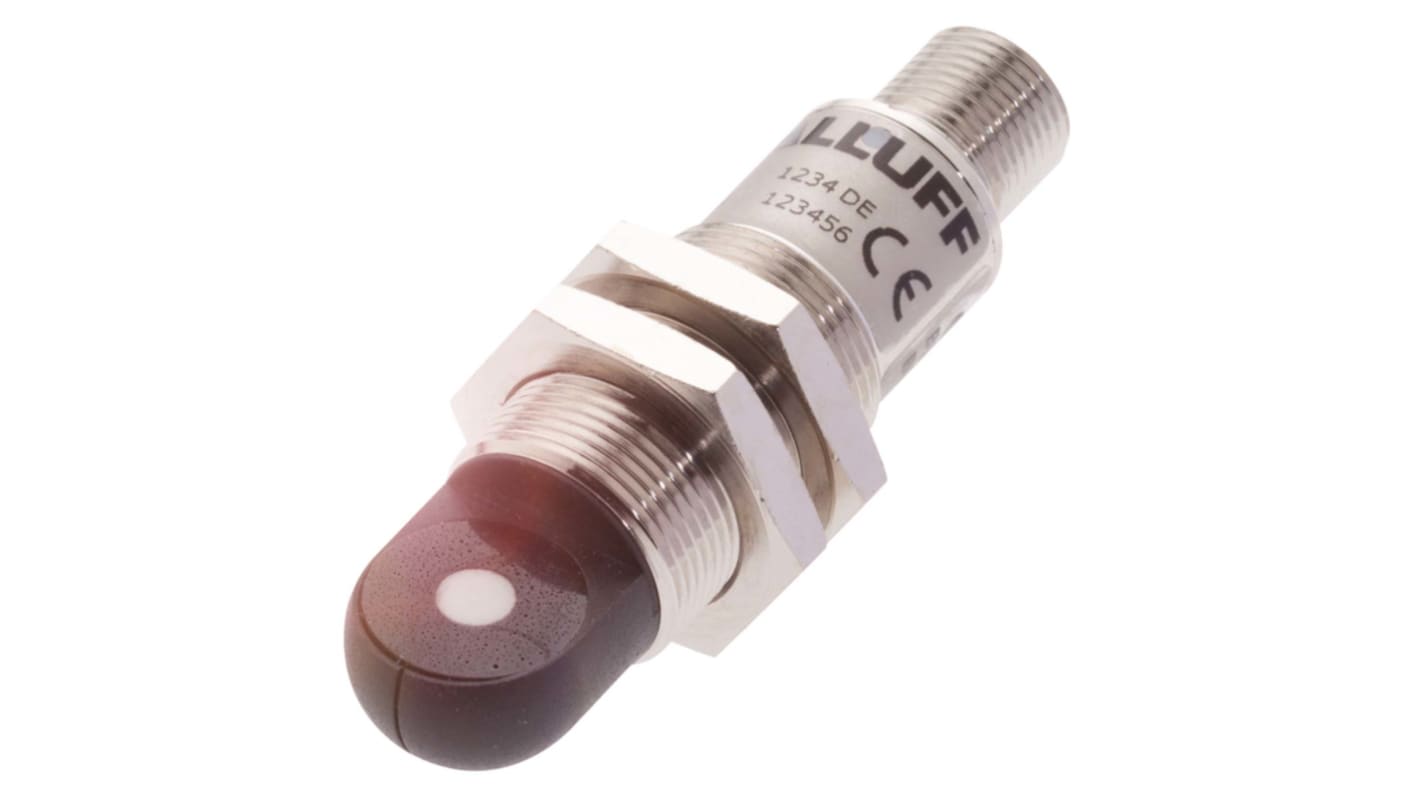

BALLUFF Barrel-Style Proximity Sensor, M18 x 1, 30 → 350 mm Detection, PNP/NPN-NO/NC Output, 10 → 30 V
- RS Stock No.:
- 135-0281
- Mfr. Part No.:
- BUS W18M1-GPXI-03/025-S92G
- Brand:
- BALLUFF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 135-0281
- Mfr. Part No.:
- BUS W18M1-GPXI-03/025-S92G
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Thread Size | M18 x 1 | |
| Body Style | Barrel | |
| Output Type | PNP/NPN-NO/NC | |
| Detection Range | 30 → 350 mm | |
| Terminal Type | M12 - 5 Pin | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP67 | |
| Length | 68.4mm | |
| Switching Frequency | 25 Hz | |
| Maximum DC Voltage | 30V | |
| Switching Current | 40 mA | |
| Maximum Operating Temperature | +75°C | |
| Housing Material | Brass, PBT | |
| Reverse Polarity Protection | Yes | |
| Priced to Clear | Yes | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| Standards Met | CE | |
Select all | ||
|---|---|---|
Brand BALLUFF | ||
Thread Size M18 x 1 | ||
Body Style Barrel | ||
Output Type PNP/NPN-NO/NC | ||
Detection Range 30 → 350 mm | ||
Terminal Type M12 - 5 Pin | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP67 | ||
Length 68.4mm | ||
Switching Frequency 25 Hz | ||
Maximum DC Voltage 30V | ||
Switching Current 40 mA | ||
Maximum Operating Temperature +75°C | ||
Housing Material Brass, PBT | ||
Reverse Polarity Protection Yes | ||
Priced to Clear Yes | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
Standards Met CE | ||
- COO (Country of Origin):
- DE
BUS Ultrasonic Proximity Barrel Sensors
The ultrasonic proximity sensors from BALLUFF BUS range use ultrasonic technology to detect if an object moves within the sensing range. The sensor emits a high pitch ultrasonic beam of sound which reflects off the object in its path, when the object moves within the sensing range the sound will reflect back to the receiver unit triggering activation of the sensor. Ultrasonic proximity sensors are used in industrial environments for applications where accurate proximity detection of metal or non-mental objects is essential.
Connector version
Barrel style body
Analogue output
Barrel style body
Analogue output
