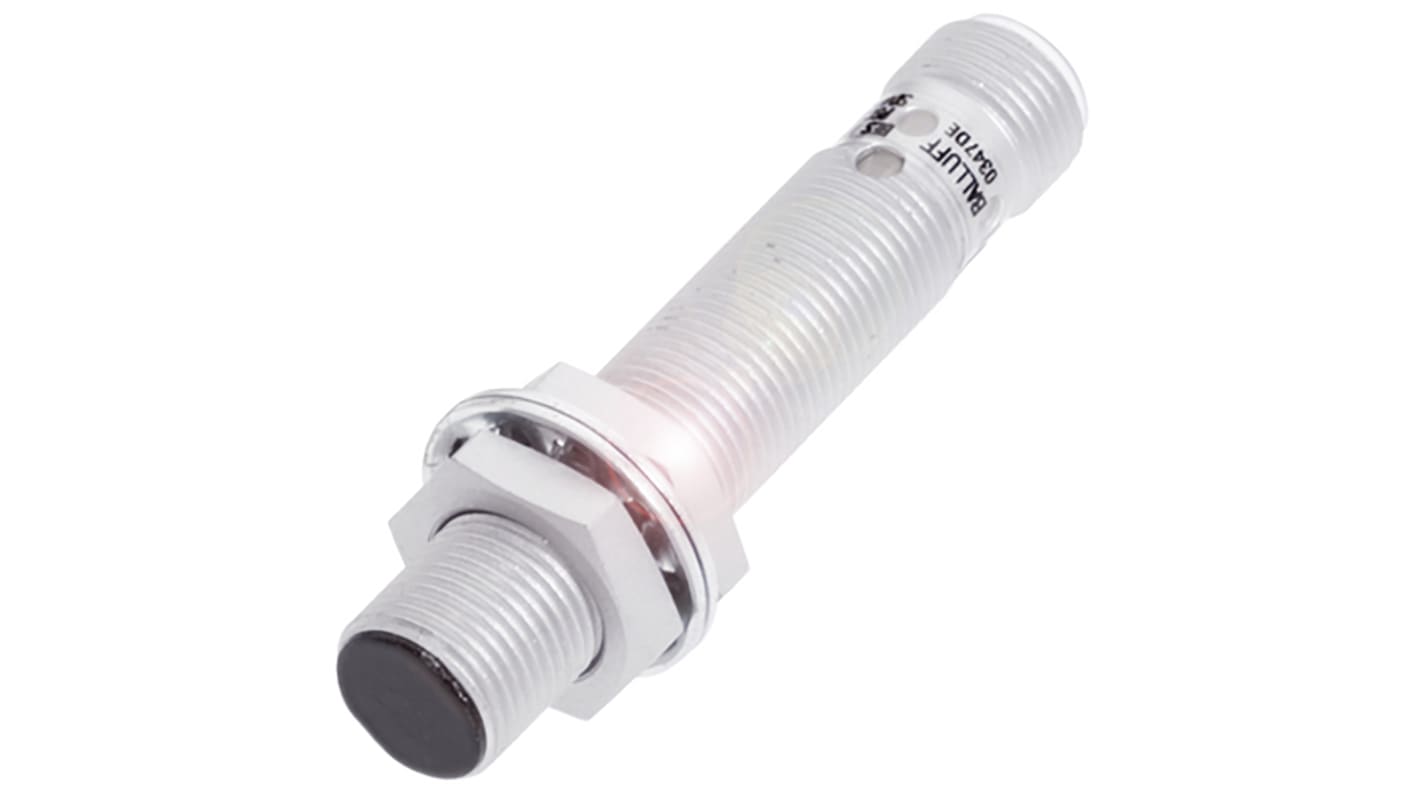

BALLUFF Inductive Barrel-Style Proximity Sensor, M12 x 1, 3 mm Detection, PNP Output, 10 → 30 V dc, IP67
- RS Stock No.:
- 124-3713
- Mfr. Part No.:
- BES M12ML-PSC30A-S04G-W
- Brand:
- BALLUFF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£84.82
(exc. VAT)
£101.78
(inc. VAT)
- RS Stock No.:
- 124-3713
- Mfr. Part No.:
- BES M12ML-PSC30A-S04G-W
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Sensor Technology | Inductive | |
| Thread Size | M12 x 1 | |
| Body Style | Barrel | |
| Output Type | PNP | |
| Detection Range | 3 mm | |
| Terminal Type | 4-Pin M12 Connector | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP67 | |
| Length | 65mm | |
| Maximum DC Voltage | 30V | |
| Mounting Type | Flush | |
| Switching Current | 200 mA | |
| Shielding | Shielded | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Frequency | 2kHz | |
| Housing Material | Brass | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Standards Met | CE, cULus, EAC, IEC 60947-5-2 | |
Select all | ||
|---|---|---|
Brand BALLUFF | ||
Sensor Technology Inductive | ||
Thread Size M12 x 1 | ||
Body Style Barrel | ||
Output Type PNP | ||
Detection Range 3 mm | ||
Terminal Type 4-Pin M12 Connector | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP67 | ||
Length 65mm | ||
Maximum DC Voltage 30V | ||
Mounting Type Flush | ||
Switching Current 200 mA | ||
Shielding Shielded | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Frequency 2kHz | ||
Housing Material Brass | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
Reverse Polarity Protection Yes | ||
Standards Met CE, cULus, EAC, IEC 60947-5-2 | ||
BES 3 / 4 Wire M12 Inductive Proximity Sensors
This range of M12 cylindrical inductive proximity sensors from the BALLUFF BES series are designed to be used in a wide variety of metal detection applications with in industrial environments.
Pre cabled or connector
Flush shielded or non-flush unshielded
3 & 4 wire DC configuration
Flush shielded or non-flush unshielded
3 & 4 wire DC configuration
