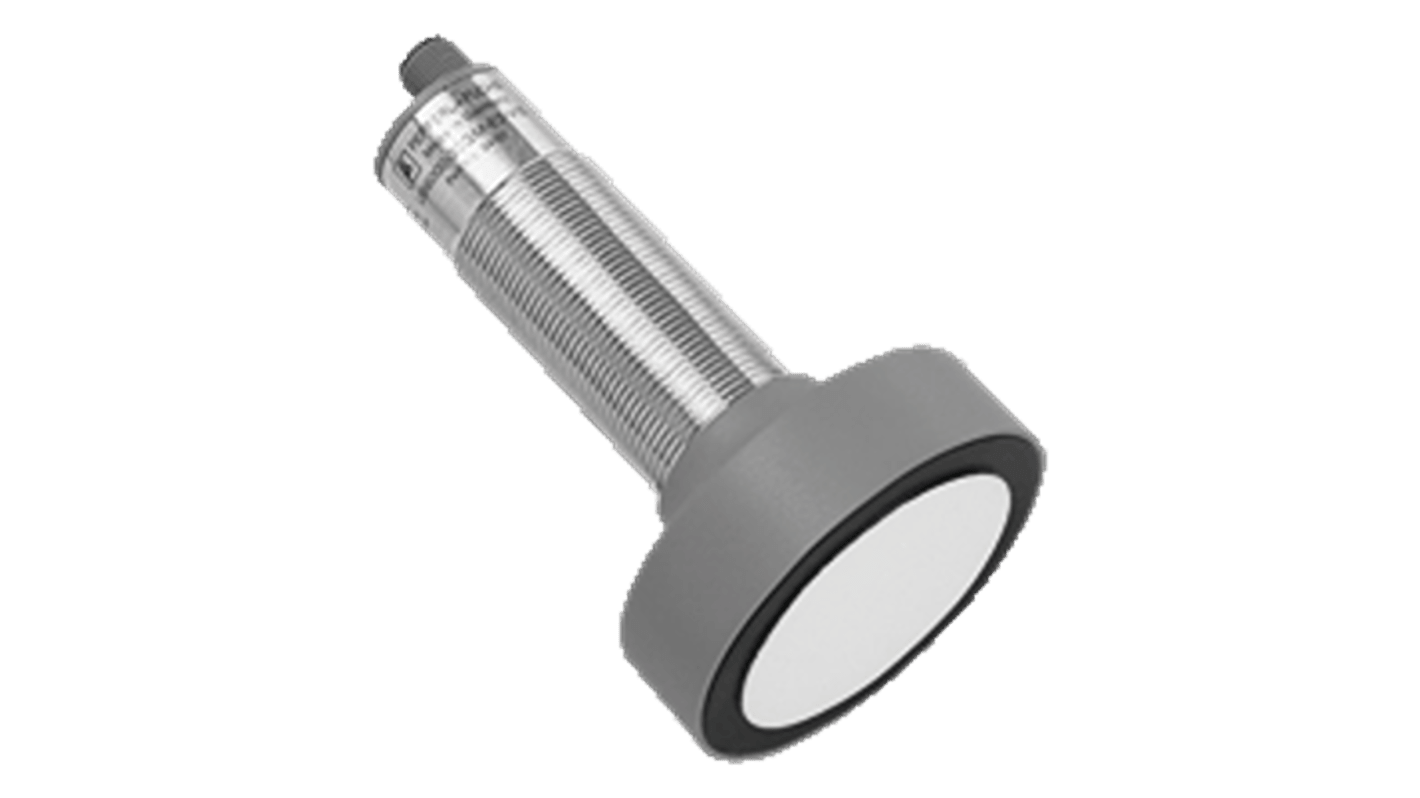

Pepperl + Fuchs UB6000-30GM-E5-V15 Barrel Ultrasonic Proximity Sensor UB6000, M30 6000 mm 200mA PNP 15V 30 V dc
- RS Stock No.:
- 588-533
- Mfr. Part No.:
- UB6000-30GM-E5-V15
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£260.60
(exc. VAT)
£312.72
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £260.60 |
*price indicative
- RS Stock No.:
- 588-533
- Mfr. Part No.:
- UB6000-30GM-E5-V15
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Thread Size | M30 | |
| Product Type | Ultrasonic Proximity Sensor | |
| Body Style | Barrel | |
| IP Rating | IP65 | |
| Terminal Type | M12 | |
| Width | 73mm | |
| Maximum Supply Voltage | 15V | |
| Housing Material | Nickel Plated Brass, Polybutylene Terephthalate | |
| Minimum Operating Temperature | -25°C | |
| Maximum Detection | 6000mm | |
| Maximum DC Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN IEC 60947-5-2:2020, cULus Listed, IEC 60947-5-2:2019 | |
| Maximum Switching Frequency | 0.8Hz | |
| Series | UB6000 | |
| Output Type | PNP | |
| Switching Current | 200mA | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Thread Size M30 | ||
Product Type Ultrasonic Proximity Sensor | ||
Body Style Barrel | ||
IP Rating IP65 | ||
Terminal Type M12 | ||
Width 73mm | ||
Maximum Supply Voltage 15V | ||
Housing Material Nickel Plated Brass, Polybutylene Terephthalate | ||
Minimum Operating Temperature -25°C | ||
Maximum Detection 6000mm | ||
Maximum DC Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN IEC 60947-5-2:2020, cULus Listed, IEC 60947-5-2:2019 | ||
Maximum Switching Frequency 0.8Hz | ||
Series UB6000 | ||
Output Type PNP | ||
Switching Current 200mA | ||
- COO (Country of Origin):
- SG
The Pepperl + Fuchs Ultrasonic Sensor features a switching output with up to 5 different selectable output functions and a program input for easy configuration. It offers a sensing range of 350 to 6000 mm and an adjustment range of 400 to 6000 mm, with a dead band from 0 to 350 mm. The sensor uses a standard target plate measuring 100 mm by 100 mm. The transducer frequency is approximately 65 kHz, and the response delay is about 650 ms.
Synchronization options
Deactivation option
Temperature compensation
Insensitive to compressed air
