Telemecanique Sensors XS4P18AB110 Threaded Barrel Inductive Proximity Sensor, M18 x 1 0/10 V XS 48V dc 8 mm 48 V dc
- RS Stock No.:
- 434-729
- Mfr. Part No.:
- XS4P18AB110
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£126.50
(exc. VAT)
£151.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.50 |
*price indicative
- RS Stock No.:
- 434-729
- Mfr. Part No.:
- XS4P18AB110
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Inductive Proximity Sensor | |
| Thread Size | M18 x 1 | |
| Body Style | Threaded Barrel | |
| Length | 41mm | |
| IP Rating | IP67 | |
| Mount Type | Non-Flush | |
| Terminal Type | Cable | |
| Maximum Supply Voltage | 48V dc | |
| Housing Material | Polybutylene Terephthalate | |
| Materials Detected | Metal | |
| Maximum Detection | 8mm | |
| Maximum DC Voltage | 48V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE | |
| Maximum Switching Frequency | 500Hz | |
| Output Type | 0/10 V | |
| Series | XS | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Inductive Proximity Sensor | ||
Thread Size M18 x 1 | ||
Body Style Threaded Barrel | ||
Length 41mm | ||
IP Rating IP67 | ||
Mount Type Non-Flush | ||
Terminal Type Cable | ||
Maximum Supply Voltage 48V dc | ||
Housing Material Polybutylene Terephthalate | ||
Materials Detected Metal | ||
Maximum Detection 8mm | ||
Maximum DC Voltage 48V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE | ||
Maximum Switching Frequency 500Hz | ||
Output Type 0/10 V | ||
Series XS | ||
- COO (Country of Origin):
- FR

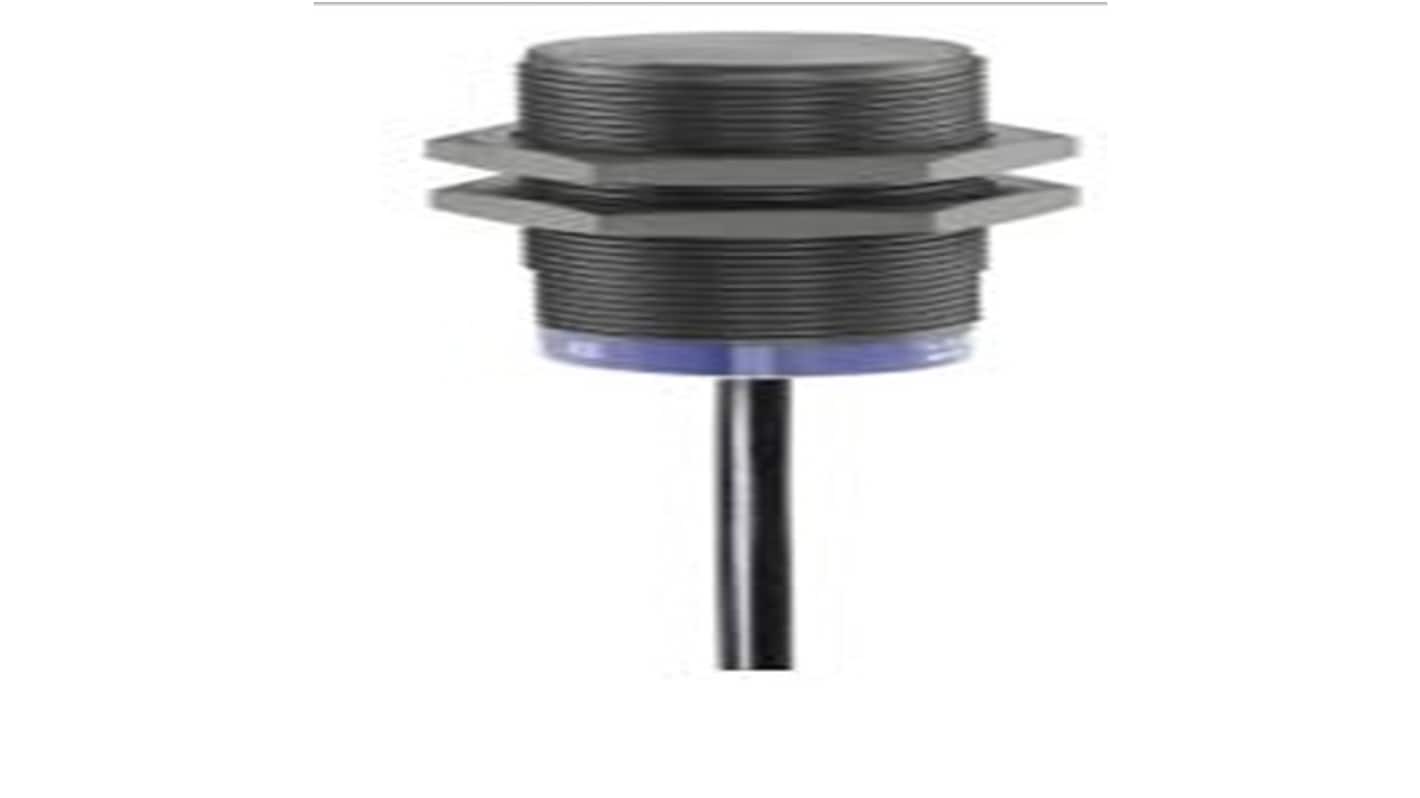

The Telemecanique Sensors Inductive proximity sensor M18 is made of PBT with a length of 41 mm. It has a sensing range (Sn) of 8 mm and operates on 24 to 48 VDC. The sensor includes a 2-meter cable for easy installation in industrial applications.
CE marking
PPS front material
