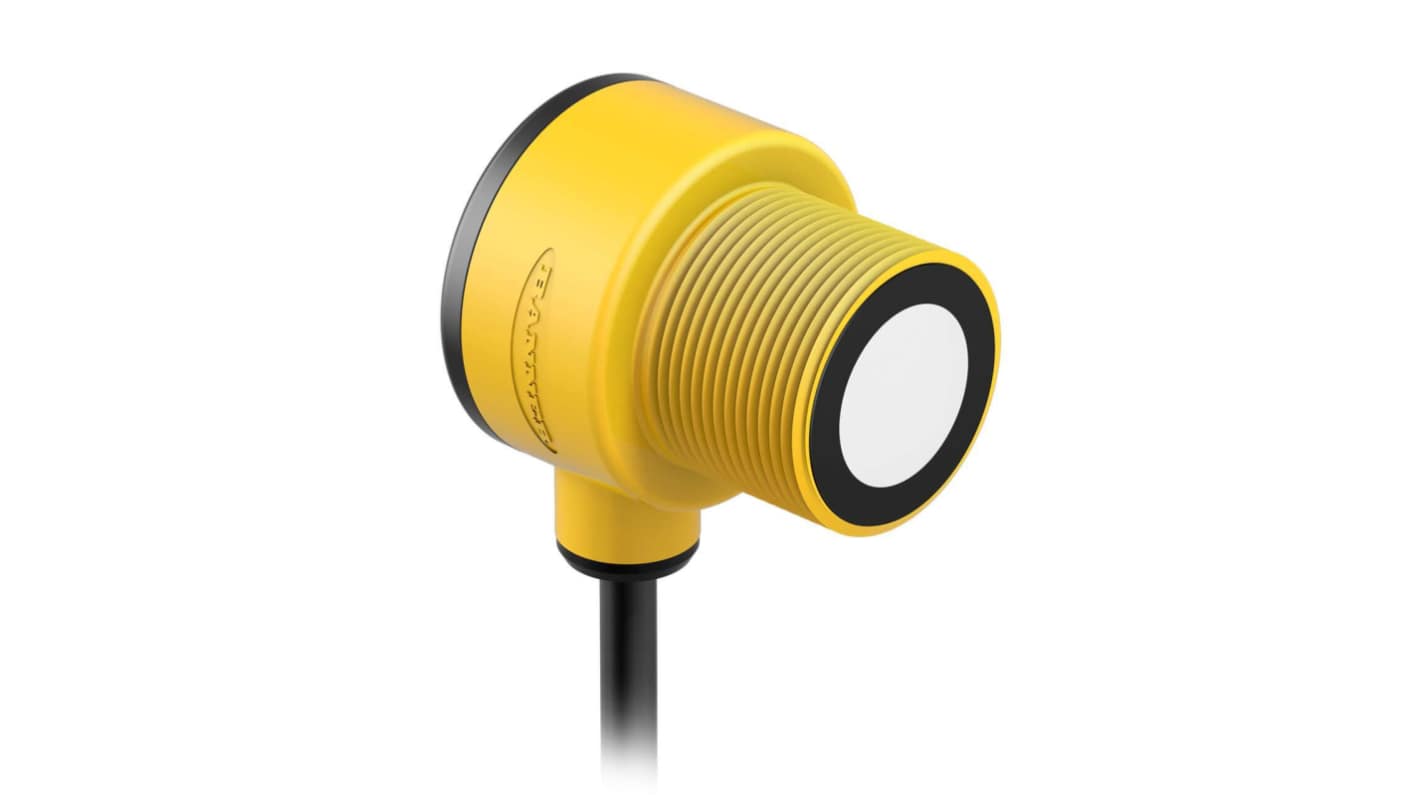

Banner Ultrasonic Barrel Proximity Sensor, 300 → 3000 mm Detection, PNP/NPN NO/NC, 10 → 30 V dc
- RS Stock No.:
- 294-152
- Mfr. Part No.:
- T30UXDC
- Brand:
- Banner
Subtotal (1 unit)*
£407.18
(exc. VAT)
£488.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £407.18 |
*price indicative
- RS Stock No.:
- 294-152
- Mfr. Part No.:
- T30UXDC
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Sensor Technology | Ultrasonic | |
| Detection Range | 300 → 3000 mm | |
| Body Style | Barrel | |
| Digital Switching Output Type | PNP/NPN | |
| Output Function | NO/NC | |
| Cable Length | 2m | |
| Supply Voltage | 10 → 30 V dc | |
Select all | ||
|---|---|---|
Brand Banner | ||
Sensor Technology Ultrasonic | ||
Detection Range 300 → 3000 mm | ||
Body Style Barrel | ||
Digital Switching Output Type PNP/NPN | ||
Output Function NO/NC | ||
Cable Length 2m | ||
Supply Voltage 10 → 30 V dc | ||
- COO (Country of Origin):
- CN
The Banner Ultrasonic sensor with discrete output is designed to provide precise distance measurement in a compact, right-angle package. With a sensing range of up to 3 metres, it employs advanced ultrasonic technology and built-in temperature compensation to deliver reliable performance even in challenging environments.
Remote TEACH functionality enhances security and convenience by preventing unauthorized adjustments
Configurable discrete outputs allow flexibility in connection options
Designed for straightforward installation with minimal setup time
Configurable discrete outputs allow flexibility in connection options
Designed for straightforward installation with minimal setup time
