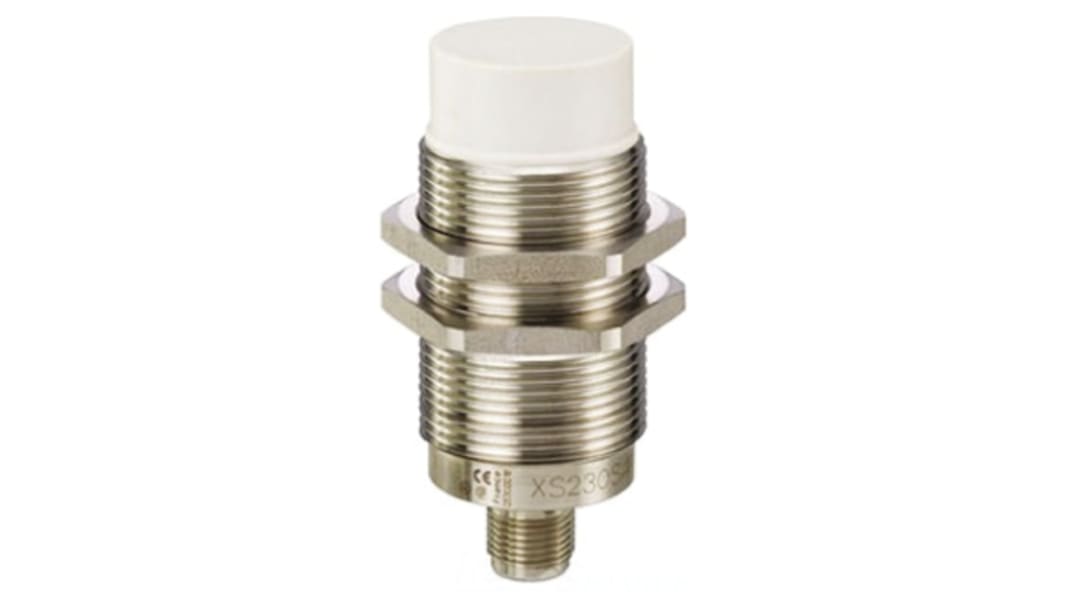

Telemecanique Sensors XS230SAPAM12 Threaded Barrel Inductive Proximity Sensor, M30 x 1.5 PNP XS 36V 22 mm 36 V dc 200mA

RS Stock No.:: 283-527
Mfr. Part No.:: XS230SAPAM12
Brand:: Telemecanique Sensors

Telemecanique Sensors XS230SAPAM12 Threaded Barrel Inductive Proximity Sensor, M30 x 1.5 PNP XS 36V 22 mm 36 V dc 200mA

Subtotal (1 unit)*

£108.50

(exc. VAT)

£130.20

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

22 unit(s) ready to ship
Plus 11 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£108.50

*price indicative

RS Stock No.:: 283-527
Mfr. Part No.:: XS230SAPAM12
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Inductive Proximity Sensor
	Thread Size	M30 x 1.5
	Body Style	Threaded Barrel
	Length	70mm
	IP Rating	IP69K
	Mount Type	Non-Flush
	Terminal Type	M12 Connector
	Housing Material	Stainless Steel
	Maximum Supply Voltage	36V
	Materials Detected	Stainless Steel
	Maximum Detection	22mm
	Minimum Operating Temperature	-25°C
	Maximum DC Voltage	36V dc
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS EU, UL, CSA, CE
	Output Type	PNP
	Switching Current	200mA
	Series	XS
	Shielding	Unshielded
	Maximum Switching Frequency	500Hz

	Select all
	Brand Telemecanique Sensors
	Product Type Inductive Proximity Sensor
	Thread Size M30 x 1.5
	Body Style Threaded Barrel
	Length 70mm
	IP Rating IP69K
	Mount Type Non-Flush
	Terminal Type M12 Connector
	Housing Material Stainless Steel
	Maximum Supply Voltage 36V
	Materials Detected Stainless Steel
	Maximum Detection 22mm
	Minimum Operating Temperature -25°C
	Maximum DC Voltage 36V dc
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS EU, UL, CSA, CE
	Output Type PNP
	Switching Current 200mA
	Series XS
	Shielding Unshielded
	Maximum Switching Frequency 500Hz

RoHS Status: Exempt

Telemecanique Inductive Proximity Sensors XS.

Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

Flush and Non-Flush (shielded and non-shielded).

Flat form.

Short and long body.

PNP and NPN versions (compatible with PLCs and controllers).

2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.

Material working, machine tools. Packaging. Food and beverage. Robotics.
