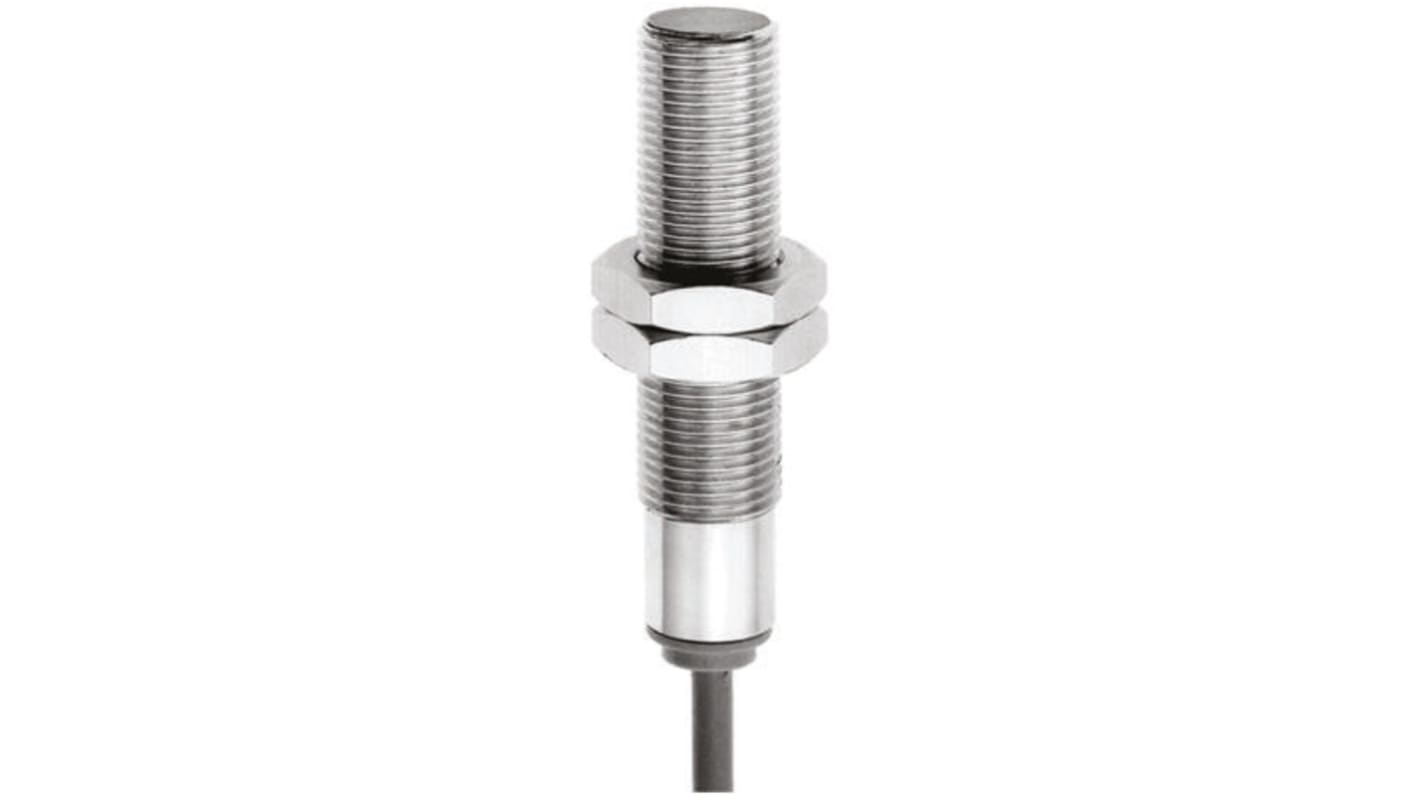

Baumer Inductive Threaded Barrel Proximity Sensor, M12, 2 mm Detection, 14 → 30 V dc
- RS Stock No.:
- 214-672
- Mfr. Part No.:
- IWRM 12U 9501
- Brand:
- Baumer
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£214.73
(exc. VAT)
£257.68
(inc. VAT)
- RS Stock No.:
- 214-672
- Mfr. Part No.:
- IWRM 12U 9501
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Thread Size | M12 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 2 mm | |
| Supply Voltage | 14 → 30 V dc | |
| IP Rating | IP67 | |
| Length | 50mm | |
| Mounting Type | Flush | |
| Housing Material | Brass Nickel Plated | |
| Width | 12mm | |
| Maximum DC Voltage | 30V | |
| Minimum Operating Temperature | 0°C | |
| Shielding | Shielded | |
| Switching Current | 20 mA | |
| Standards Met | CE, cULus Listed, EAC | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Overload Protection | Yes | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Thread Size M12 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 2 mm | ||
Supply Voltage 14 → 30 V dc | ||
IP Rating IP67 | ||
Length 50mm | ||
Mounting Type Flush | ||
Housing Material Brass Nickel Plated | ||
Width 12mm | ||
Maximum DC Voltage 30V | ||
Minimum Operating Temperature 0°C | ||
Shielding Shielded | ||
Switching Current 20 mA | ||
Standards Met CE, cULus Listed, EAC | ||
Reverse Polarity Protection Yes | ||
Short Circuit Overload Protection Yes | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- CH
M12 inductive sensor with analogue output
Inductive sensors with M12 x 1 threaded cylindrical bodies.
Analogue voltage output.
3-core cable connection.
Protected against short circuits and polarity reversal.
Analogue voltage output.
3-core cable connection.
Protected against short circuits and polarity reversal.
