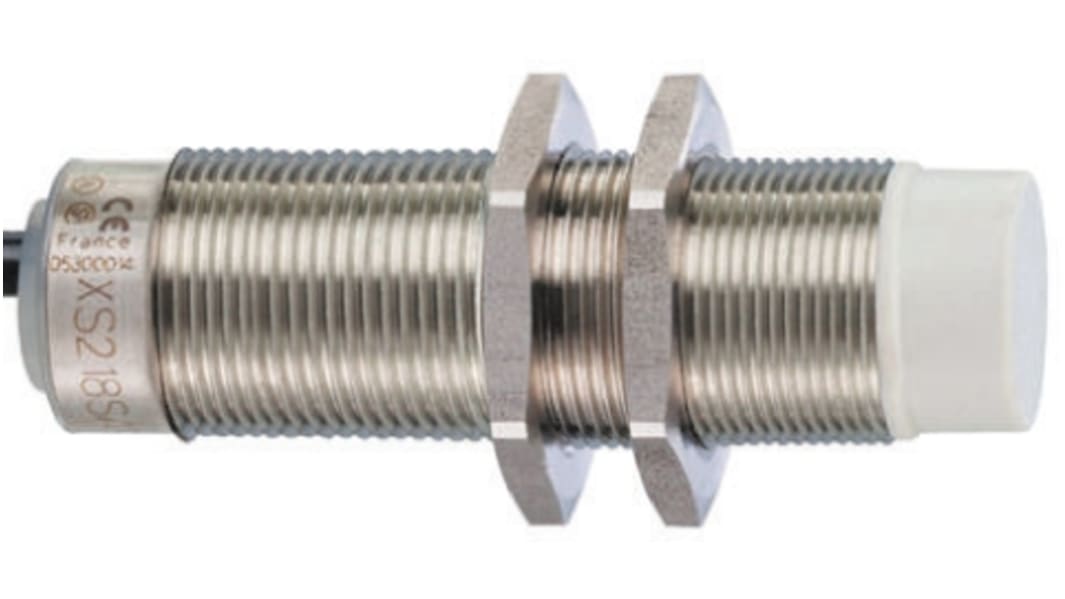

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 264 V

RS Stock No.:: 181-720
Mfr. Part No.:: XS218SAMAU20
Brand:: Telemecanique Sensors

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 264 V

Image representative of range

Price Each**

£106.52

(exc. VAT)

£127.82

(inc. VAT)

4 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£106.52

**price indicative

RS Stock No.:: 181-720
Mfr. Part No.:: XS218SAMAU20
Brand:: Telemecanique Sensors

Telemecanique Inductive Proximity Sensors OsiSense XS Food, Beverage and Pharmaceutical.

Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in applications (food, beverage, pharmaceutical) providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

Flush and Non-Flush (shielded and non-shielded).

Short and long body.

PNP and NPN versions (compatible with PLCs and controllers).

2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

Food and beverage.

Phatmaceutical.

General Features.

From freezing: -25°C to sterilisation at +85°C

Cylindrical stainless steel and plastic bodies

Connector sensor conforming to IEC 60529, IP67

Cabled sensor conforming to IP68 (double insulation)

DIN 40050 IP69K (cabled and connector types)

Pre-cabled or connector for quick disconnect

Tamper-proof laser identification

Non-flush mount

Stock nos. 181-629, 181-691, 181-720 and 181-641 are 2 wire type and require a M12 connector, see stock no. 695-6877

Attribute	Value
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	12 mm
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	1/2"20 UNF
Supply Voltage	20 → 264 V ac/dc
Length	72mm
IP Rating	IP69K
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	264V
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Maximum AC Voltage	264V
Depth	24mm
Maximum Switching Frequency	1kHz
Switching Current	200 mA, 300 mA
Series	General Purpose
Switching Frequency	1 kHz
Maximum Operating Temperature	+85°C
