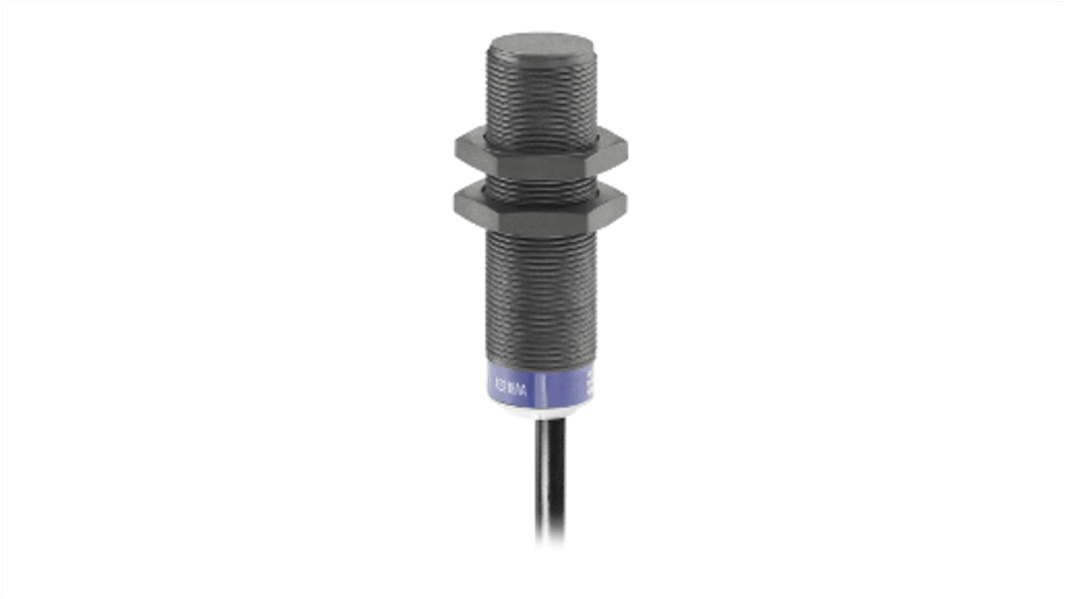

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 264 V

RS Stock No.:: 181-613
Distrelec Article No.:: 303-04-199
Mfr. Part No.:: XS218AAMAL2
Brand:: Telemecanique Sensors

Telemecanique Sensors Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, 2-Wire NO, 20 → 264 V

1 / 3

Subtotal (1 unit)**

£63.60

(exc. VAT)

£76.32

(inc. VAT)

9 In stock - FREE next working day delivery available*

18 available from Europe for delivery within 1 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£63.60

**price indicative

RS Stock No.:: 181-613
Distrelec Article No.:: 303-04-199
Mfr. Part No.:: XS218AAMAL2
Brand:: Telemecanique Sensors

Telemecanique Inductive Proximity Sensors OsiSense XS Food, Beverage and Pharmaceutical.

Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in applications (food, beverage, pharmaceutical) providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

Flush and Non-Flush (shielded and non-shielded).

Short and long body.

PNP and NPN versions (compatible with PLCs and controllers).

2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

Food and beverage.

Phatmaceutical.

General Features.

From freezing: -25°C to sterilisation at +85°C

Cylindrical stainless steel and plastic bodies

Connector sensor conforming to IEC 60529, IP67

Cabled sensor conforming to IP68 (double insulation)

DIN 40050 IP69K (cabled and connector types)

Pre-cabled or connector for quick disconnect

Tamper-proof laser identification

Non-flush mount

Stock nos. 181-629, 181-691, 181-720 and 181-641 are 2 wire type and require a M12 connector, see stock no. 695-6877

XS218AAMAL2 Telemecanique Inductive Proximity Sensor (Food and Beverage Industry).

OsiSense XS2.

Food and Beverage Industry

Cylindrical M18.

60 mm.

Fixed body.

Plastic (PPS).

Non-Flush mountable.

Front material PPS.

Discrete signal.

2-Wire.

12 mm nominal sensing distance.

1 NO.

Output circuit AC/DC.

Electrical connection – Cable 2 m.

Output state 1 yellow LED.

Threaded length 51 mm.

Length 60 mm.

Weight 0.1 kg.

Protection.

IP 68 Double insulation to IEC 60529.

IP 69K to DIN 40050

Marking.

Certification.

CSA, UL, CCC.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Thread Size	M18
	Sensor Technology	Inductive
	Detection Range	12 mm
	Body Style	Threaded Barrel
	Output Function	NO
	Digital Switching Output Type	2-Wire
	Connection Type	Pre-Cabled
	Cable Length	2m
	Supply Voltage	20 → 264 V ac/dc
	IP Rating	IP69K
	Length	60mm
	Mounting Type	Non-Flush
	Housing Material	PPS
	Maximum DC Voltage	264V
	Minimum Operating Temperature	-25°C
	Shielding	Unshielded
	Maximum Operating Temperature	+85°C
	Switching Current	200 mA, 300 mA
	Maximum AC Voltage	264V
	Series	General Purpose
	Maximum Switching Frequency	1kHz
	Switching Frequency	1 kHz
	Depth	24mm

	Select all
	Brand Telemecanique Sensors
	Thread Size M18
	Sensor Technology Inductive
	Detection Range 12 mm
	Body Style Threaded Barrel
	Output Function NO
	Digital Switching Output Type 2-Wire
	Connection Type Pre-Cabled
	Cable Length 2m
	Supply Voltage 20 → 264 V ac/dc
	IP Rating IP69K
	Length 60mm
	Mounting Type Non-Flush
	Housing Material PPS
	Maximum DC Voltage 264V
	Minimum Operating Temperature -25°C
	Shielding Unshielded
	Maximum Operating Temperature +85°C
	Switching Current 200 mA, 300 mA
	Maximum AC Voltage 264V
	Series General Purpose
	Maximum Switching Frequency 1kHz
	Switching Frequency 1 kHz
	Depth 24mm
