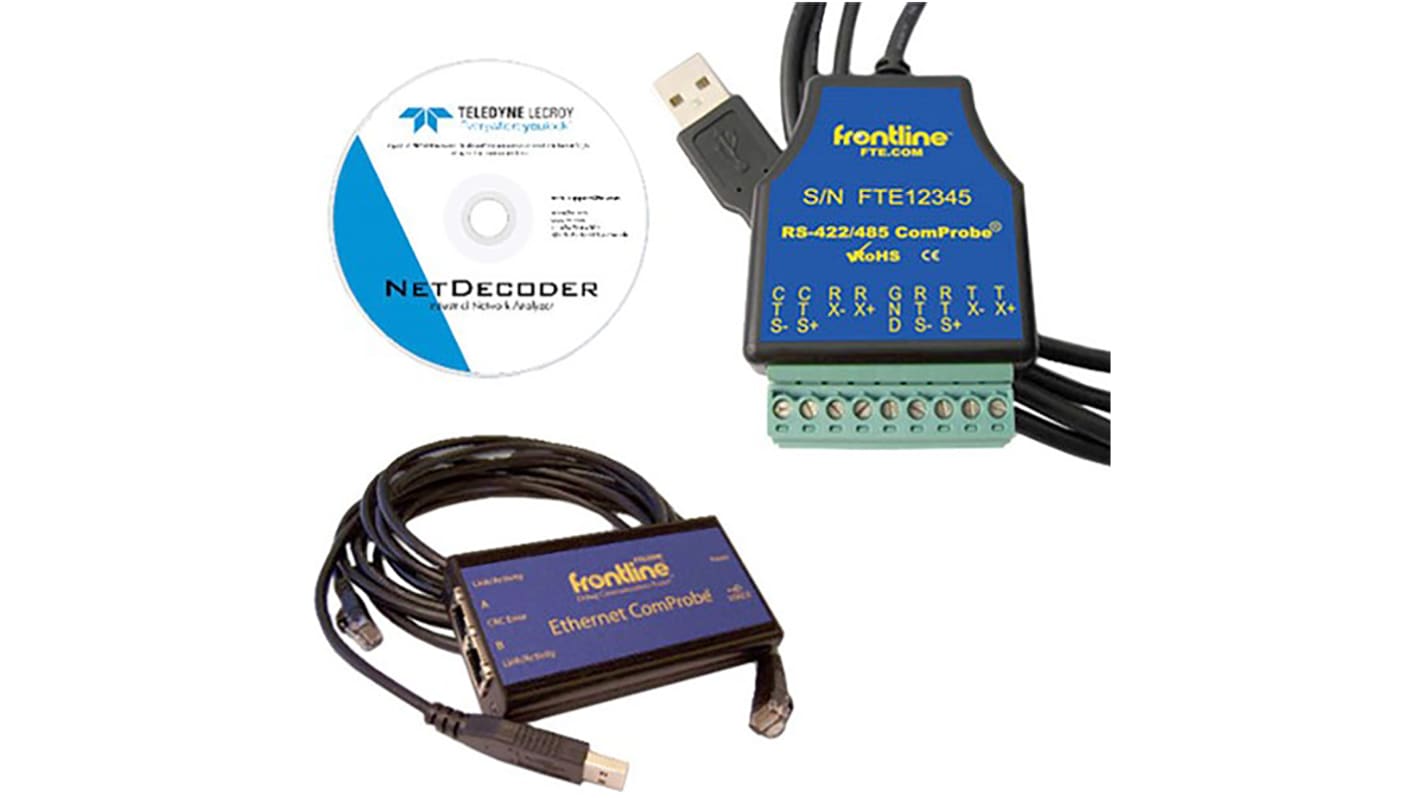

Teledyne LeCroy ND-232/422/485/ETCP Protocol Analyser Ethernet, RS232, RS422, RS485

View all Protocol Analysers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
133-0118
Mfr. Part No.:
ND-232/422/485/ETCP
Brand:
LeCroy
Find similar products by selecting one or more attributes.
Select all

Brand

LeCroy

Protocols Supported

Ethernet, RS232, RS422, RS485

Form Factor

NetDecoder

Connectors

USB 2.0

Memory Capacity

2GB

Standard Trigger Events

Packet Identifier

Model Number p

ND-232/422/485/ETCP

RoHS Status: Exempt

COO (Country of Origin):
US

Teledyne LeCroy NetDecoder™ Industrial Communication Analysers


NetDecoder™ is a passive and easy-to-use network monitor that helps less-skilled trouble-shooters understand what is happening on their communications networks. The Dashboard View, Network View Network View, Statistics Display and Frame Display are intuitive, easy to read, and quickly provide a wealth of information about the network. Although NetDecoder is simple to work with, it does provide a level of sophisticated and detailed information demanded by today’s network specialist.

NetDecoder is a must for:


  • SCADA engineers

  • System integrators

  • Network engineers

  • Maintenance engineers

  • Field service personnel

NetDecoder's Node Statistics


  • Packets transmitted and received

  • Bytes transmitted and received

  • DNS names

  • Nodes in and out

  • Utilisation information

  • Broadcast information

  • IP address and MAC address

  • Named MAC address

  • NetBios Name

  • Assigned user friendly names for each node

Features and Benefits


  • Captures, decodes, timestamps, filters and displays data, and detects protocol errors (indicated in red) simultaneously, all live and in real-time

  • Data is also displayed in binary, octal, hex, and ASCII

  • Familiar tree (Explorer style) protocol decode display with single-click protocol filtering

  • Session notes and annotated bookmarks allow for quick identification of questionable messages

  • Log data to single or multiple files

  • USB interface – no external power needed

  • Passive on the bus – does not interfere with regular traffic even when powered off

  • Timestamps in microsecond range

  • Expanded baud rate range capability

  • Capture and view data, control signals and error conditions live in real-time

  • Errors are highlighted to quickly spot problems

Applications


  • Industrial control and SCADA design

  • OEM development and test applications

  • Process Control Monitoring

  • Systems integration

  • Field, maintenance and network engineering
