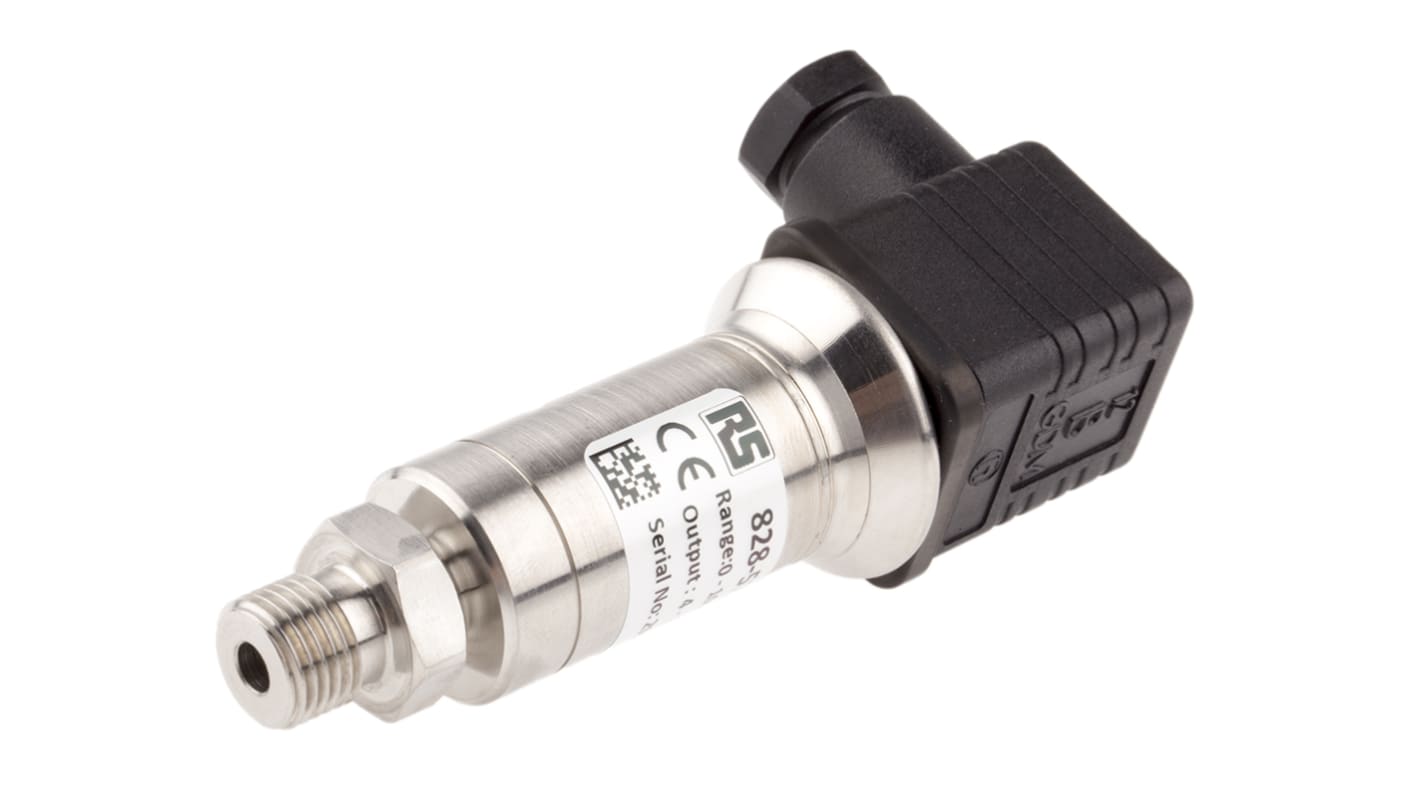

    RS PRO Pressure Sensor, 0bar Min, 1bar Max, Current Output, Absolute Reading

    RS Stock No.:
    828-5704
    Brand:
    RS PRO
    RS PRO
    View all Pressure Sensors
    1 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £236.09

    (exc. VAT)

    £283.31

    (inc. VAT)

    UnitsPer unit
    1 +£236.09
    RS Stock No.:
    828-5704
    Brand:
    RS PRO
    COO (Country of Origin):
    BG

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    BG

    Product Details

    RS PRO Pressure Sensors - IPSL Series


    These IPSL-series Pressure Sensors, also known as pressure transmitters from our own RS PRO brand are suitable for wide range of industrial applications. These devices change pressure forces into electrical signals. They are used to measure the pressure of the specific quantity like air, water and gas by changing the pressure into electrical energy. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless-steel housing.


    Features and Benefits


    • Piezo-resistive thick film ceramic sensor
    • Compact and rugged
    • Output 4-20 mA
    • BSP 1/ 4
    • CE Compliant


    Material Specifications


    • Housing: Stainless Steel 303
    • O ring seals: Viton
    • Diaphragm: 316L Stainless Steel
    • Media wetted parts: Housing & connection, O ring seal, diaphragm
    • Weight: 100 g
    • Installation position: Flexible
    • Operational Life: >100x 106 cycles
    • Insulation resistance >50M Ohms at 50 V dc


    Applications


    • Mechanical engineering
    • Environmental engineering
    • Automotive testing
    • Pneumatics
    • Agricultural machinery
    • Laboratory testing


    Characteristics


    The electronics incorporate a microprocessor-based amplifier, requiring no adjustments and giving stable electronics, especially for industrial applications. The device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data.


    RS PRO


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.



    Specifications

    AttributeValue
    Pressure Reading TypeAbsolute
    Minimum Pressure Reading0bar
    Maximum Pressure Reading1bar
    Accuracy±0.5 %
    Output TypeCurrent
    Media MeasuredOil, Water
    Process ConnectionG1/4
    Electrical ConnectionDIN 43650 Type A
    Analogue Output4 → 20 mA
    Maximum Current28 mA
    Supply Voltage9 → 32 V dc
    Housing MaterialStainless Steel
    Minimum Operating Temperature-20°C
    IP RatingIP65
    Mounting TypeThreaded
    Maximum Operating Temperature+125°C
