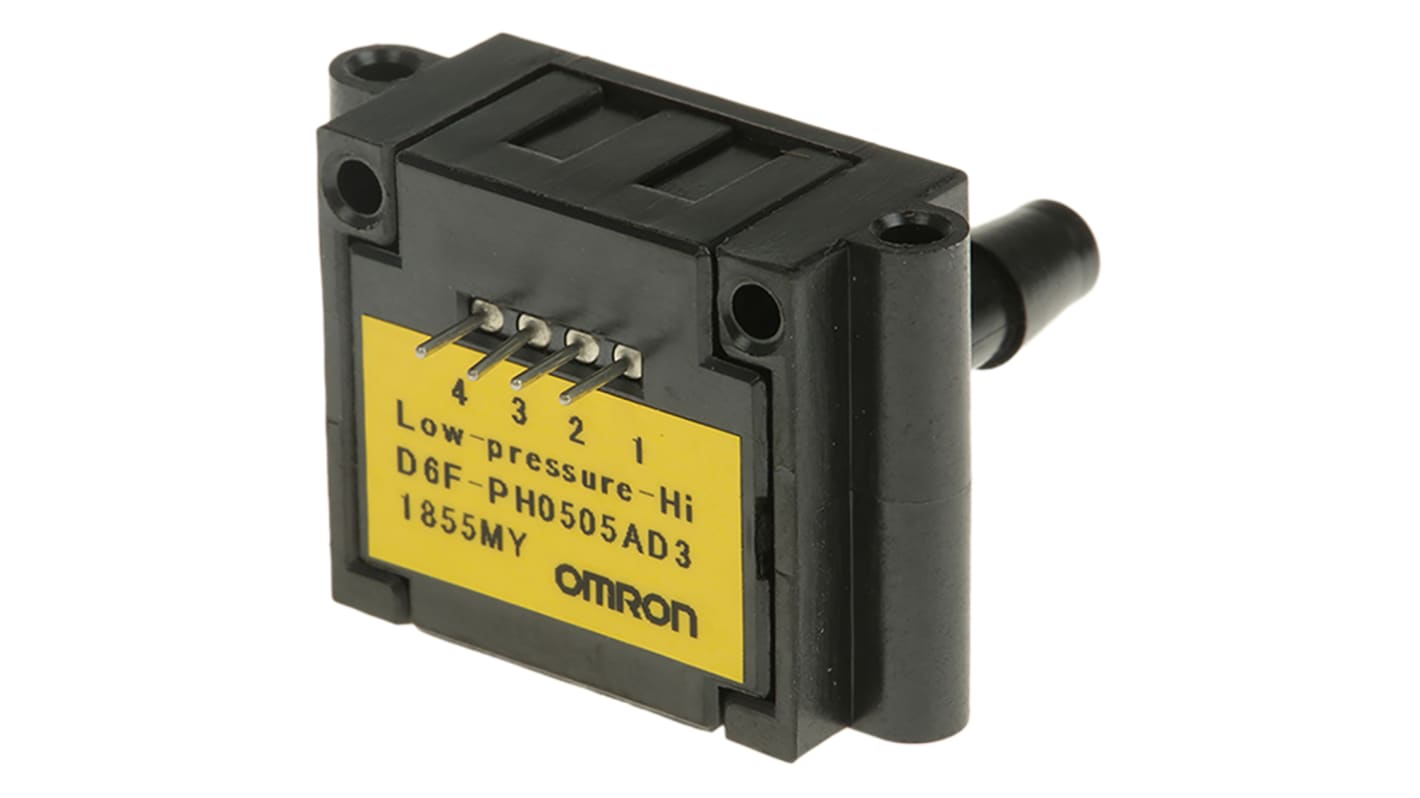

Omron Pressure Sensor, -50Pa Min, 50Pa Max, I2C Output, Differential Reading
- RS Stock No.:
- 818-4623
- Mfr. Part No.:
- D6F-PH0505AD3
- Brand:
- Omron
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 818-4623
- Mfr. Part No.:
- D6F-PH0505AD3
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Pressure Reading Type | Differential | |
| Minimum Pressure Reading | -50Pa | |
| Maximum Pressure Reading | 50Pa | |
| Accuracy | ±3 % | |
| Output Type | I2C | |
| Media Measured | Air | |
| Electrical Connection | PCB | |
| Response Time | 33 ms | |
| Maximum Current | 6 mA | |
| Supply Voltage | 2.3 → 3.6 V dc | |
| Housing Material | PPS | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| IP Rating | IP40 | |
Select all | ||
|---|---|---|
Brand Omron | ||
Pressure Reading Type Differential | ||
Minimum Pressure Reading -50Pa | ||
Maximum Pressure Reading 50Pa | ||
Accuracy ±3 % | ||
Output Type I2C | ||
Media Measured Air | ||
Electrical Connection PCB | ||
Response Time 33 ms | ||
Maximum Current 6 mA | ||
Supply Voltage 2.3 → 3.6 V dc | ||
Housing Material PPS | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
IP Rating IP40 | ||
- COO (Country of Origin):
- JP
MEMS D6F-PH Pressure Sensors
Linearized and temperature compensated
Digital output (I2C communication)
High flow impedance to reduce the influence of bypass configuration
Digital output (I2C communication)
High flow impedance to reduce the influence of bypass configuration
The Omron DSF-PH range offers compact differential pressure sensors, expertly designed to ensure high accuracy detection and excellent protection from environments.
