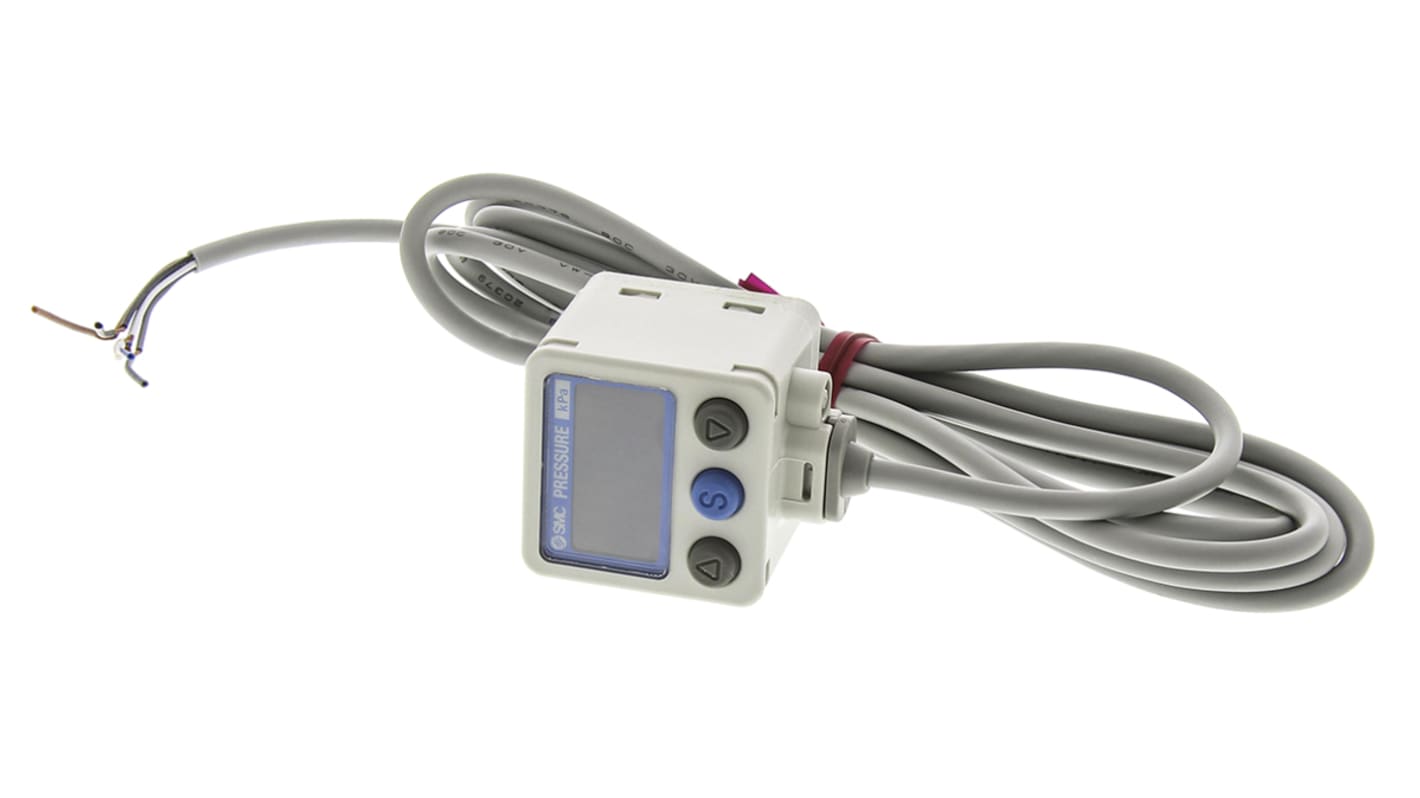

SMC Pressure Switch, 1bar Min, 100kPa Max, Analogue Output, Vacuum Reading
- RS Stock No.:
- 748-4720
- Mfr. Part No.:
- ZSE40AF-01-T
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 748-4720
- Mfr. Part No.:
- ZSE40AF-01-T
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Pressure Reading Type | Vacuum | |
| Minimum Pressure Reading | 1bar | |
| Maximum Pressure Reading | 100kPa | |
| Accuracy | ±0.2 % | |
| Output Type | Analogue | |
| Media Measured | Gas | |
| Process Connection | BSP 1/8 | |
| Electrical Connection | Wire Lead | |
| Analogue Output | 1 → 5 V, 4 → 20 mA | |
| Response Time | 2.5 ms | |
| Maximum Current | 45 mA | |
| Supply Voltage | 12 → 24 V dc | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -5°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Pressure Reading Type Vacuum | ||
Minimum Pressure Reading 1bar | ||
Maximum Pressure Reading 100kPa | ||
Accuracy ±0.2 % | ||
Output Type Analogue | ||
Media Measured Gas | ||
Process Connection BSP 1/8 | ||
Electrical Connection Wire Lead | ||
Analogue Output 1 → 5 V, 4 → 20 mA | ||
Response Time 2.5 ms | ||
Maximum Current 45 mA | ||
Supply Voltage 12 → 24 V dc | ||
IP Rating IP65 | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -5°C | ||
- COO (Country of Origin):
- JP
ISE/ZSE40 Pressure/ Vacuum Switch
Multiple output capability - 2 PNP + 1 analogue output or 2 NPN + 1 analogue output
User selectable pressure unit display
High speed response with anti-chatter function
Vacuum and positive pressure models
Complete self diagnosis with error indication
Peak or minimum pressure display during normal operation
IP65 protection rating
3 metre flying lead
User selectable pressure unit display
High speed response with anti-chatter function
Vacuum and positive pressure models
Complete self diagnosis with error indication
Peak or minimum pressure display during normal operation
IP65 protection rating
3 metre flying lead
Note
In applications where the switch is exposed to water, oil, dust etc. insert a 2.5mm I.D., tube into the atmospheric release port and pipe to a clean area.
