Honeywell Pressure Sensor, 0psi Min, 4psi Max, Wheatstone Bridge Output, Differential Reading
- RS Stock No.:
- 667-0936
- Mfr. Part No.:
- CPCL04DFC
- Brand:
- Honeywell

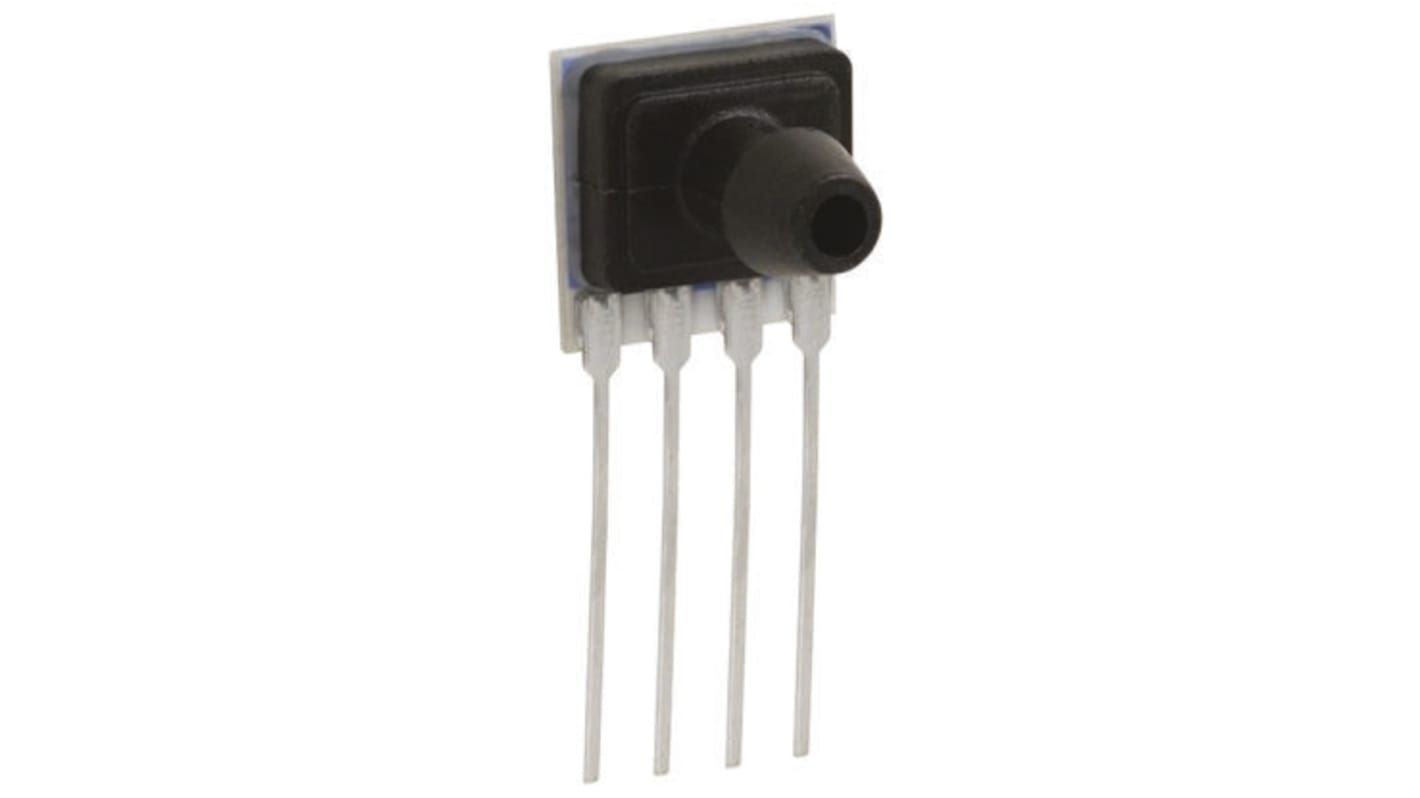

Image representative of range
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£181.19
(exc. VAT)
£217.43
(inc. VAT)
- RS Stock No.:
- 667-0936
- Mfr. Part No.:
- CPCL04DFC
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Pressure Reading Type | Differential | |
| Minimum Pressure Reading | 0psi | |
| Maximum Pressure Reading | 4psi | |
| Accuracy | 0.25 % | |
| Output Type | Wheatstone Bridge | |
| Media Measured | Gas | |
| Analogue Output | 23 → 27 mV dc | |
| Electrical Connection | Solder Tag | |
| Supply Voltage | 3 → 16 V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Pressure Reading Type Differential | ||
Minimum Pressure Reading 0psi | ||
Maximum Pressure Reading 4psi | ||
Accuracy 0.25 % | ||
Output Type Wheatstone Bridge | ||
Media Measured Gas | ||
Analogue Output 23 → 27 mV dc | ||
Electrical Connection Solder Tag | ||
Supply Voltage 3 → 16 V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- US
Compensated and Calibrated Silicon Pressure Sensors
These piezoresistive pressure sensors use micromachined silicon chips mounted on a ceramic and protected with a plastic cap. On devices of 5 psi and above the top side of the chip is protected against humidity by a Silgel coating. The sensors are designed for use with non-corrosive, nonionic pressure media and can accomodate many gases used in medical proceedures.
Temperature compensated
Zero and span calibrated
Constant voltage excitation
Suitable for medical applications
Applications requiring small size, vacuum and positive
Operating temperature -25 to 85 ° C
Zero and span calibrated
Constant voltage excitation
Suitable for medical applications
Applications requiring small size, vacuum and positive
Operating temperature -25 to 85 ° C
