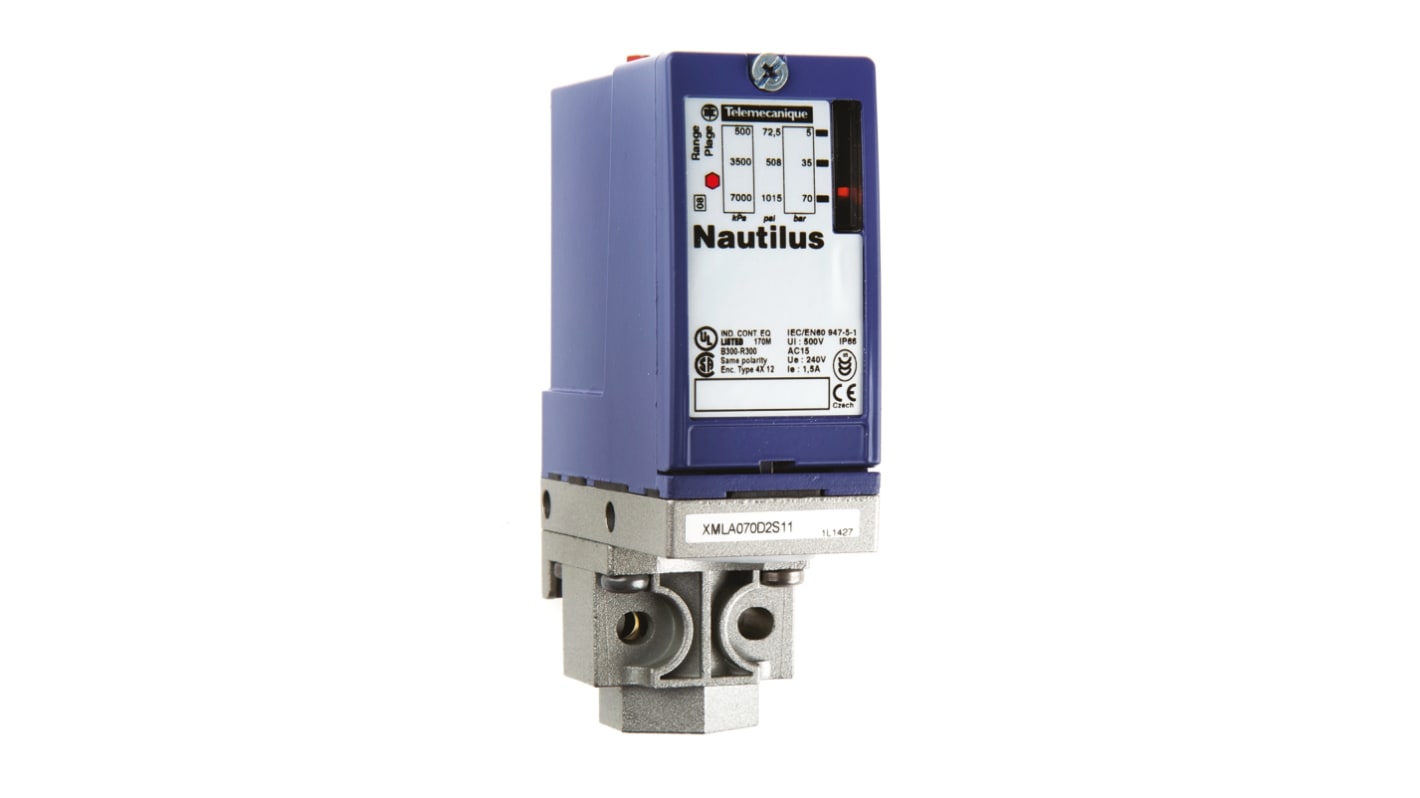

Telemecanique Sensors Pressure Sensor, 50bar Min, 70bar Max, Relay Output, Differential Reading
- RS Stock No.:
- 324-0958
- Distrelec Article No.:
- 303-99-959
- Mfr. Part No.:
- XMLA070D2S11
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£174.12
(exc. VAT)
£208.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 26 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £174.12 |
*price indicative
- RS Stock No.:
- 324-0958
- Distrelec Article No.:
- 303-99-959
- Mfr. Part No.:
- XMLA070D2S11
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Pressure Reading Type | Differential | |
| Minimum Pressure Reading | 50bar | |
| Maximum Pressure Reading | 70bar | |
| Accuracy | 2 % | |
| Output Type | Relay | |
| Media Measured | Hydraulic Fluid | |
| Process Connection | G1/4 | |
| Electrical Connection | PG13.5 Cable Gland | |
| Maximum Current | 3 A ac, 100 mA dc | |
| Supply Voltage | 120 → 240 V ac, 250 V dc | |
| Housing Material | Zinc Alloy | |
| IP Rating | IP66 | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Pressure Reading Type Differential | ||
Minimum Pressure Reading 50bar | ||
Maximum Pressure Reading 70bar | ||
Accuracy 2 % | ||
Output Type Relay | ||
Media Measured Hydraulic Fluid | ||
Process Connection G1/4 | ||
Electrical Connection PG13.5 Cable Gland | ||
Maximum Current 3 A ac, 100 mA dc | ||
Supply Voltage 120 → 240 V ac, 250 V dc | ||
Housing Material Zinc Alloy | ||
IP Rating IP66 | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
OsiSense XMLA Pressure Switches
Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.
Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
Note
Pressure quoted is 'per cycle' and (occasional)
