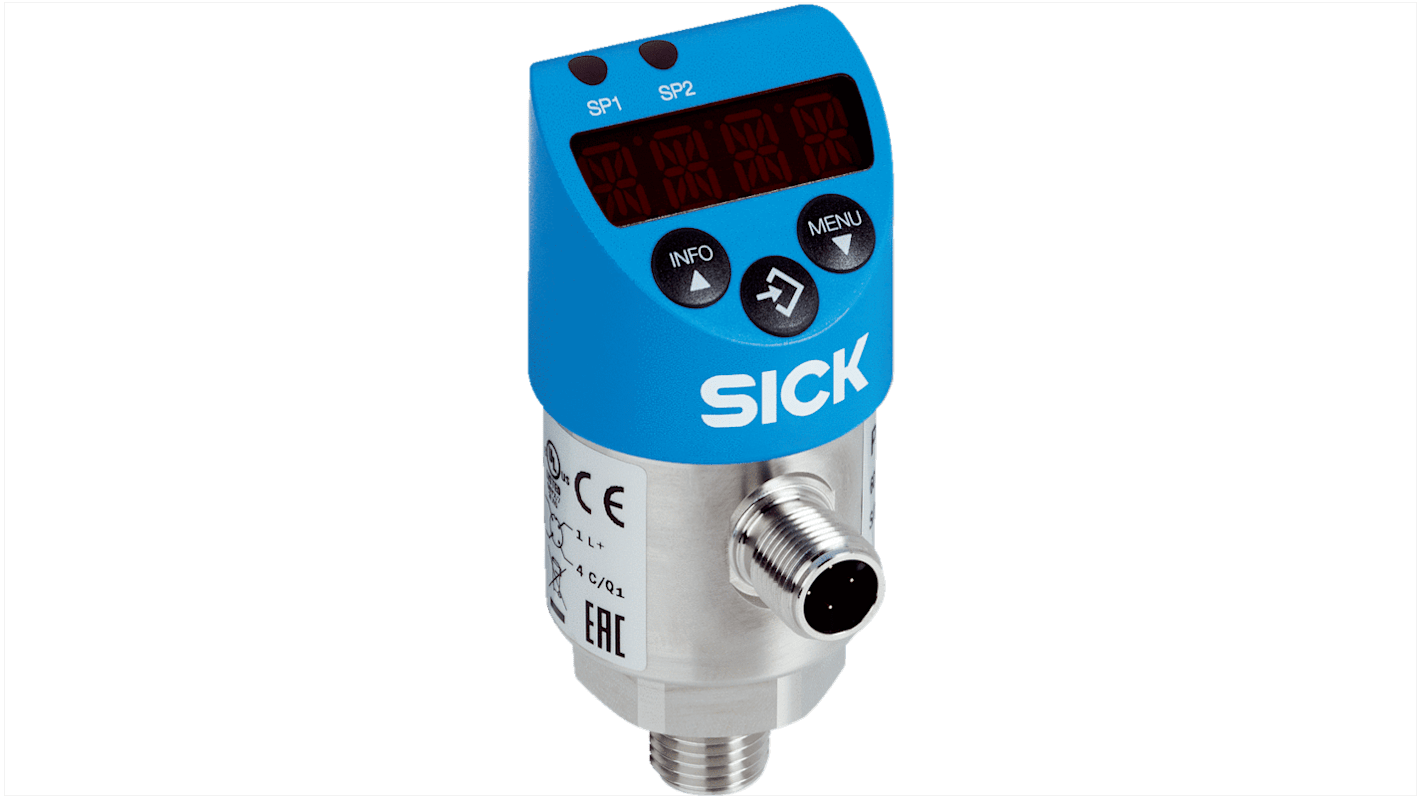

SICK PBS2 Series Pressure Sensor, 0bar Min, 0.6bar Max, IO-Link/PNP/NPN + 4 → 20 mA Output, Gauge Reading

View all Pressure Sensors

Subtotal (1 unit)*

£336.78

(exc. VAT)

£404.14

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£336.78

*price indicative

RS Stock No.:
285-2201
Mfr. Part No.:
PBS2-RBX60SN1SS0NMA0Z
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Pressure Reading Type

Gauge

Minimum Pressure Reading

0bar

Maximum Pressure Reading

0.6bar

Accuracy

± 0.5 %

Output Type

IO-Link/PNP/NPN + 4 → 20 mA

Media Measured

Gaseous, Liquid

Process Connection

NPT 1/4

Electrical Connection

M12 Round Connector

Analogue Output

4 → 20 mA

Response Time

5 ms

Communication Protocol

IO-LINK

Series

PBS2

Maximum Current

600 mA

Supply Voltage

15 → 35 V dc

Housing Material

Buttons - TPE-E, Display Window - PC, Lower Body - Stainless Steel 304, Plastic Head - PC + ABS

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+85°C

IP Rating

IP67

COO (Country of Origin):
DE

Overview


The PBS plus is an electronic pressure switch, pressure transmitter and display in one and is available with up to two switching outputs, analogue output and IO-Link. It is set using three large pushbuttons and the display or via IO-Link. The housing can be twisted in two places - the display and the electrical connection can be optimally aligned in any mounting situation. With measuring ranges of 0.4 bar to 1,000 bar (gauge pressure), the PBS plus can be used in many different applications. It also has absolute pressure and vacuum measuring ranges.

The PBS plus is highly resistant to corrosion due to the fully welded stainless steel membrane. Process data is transmitted to the control via IO-Link as measured values in bar. The diagnostic options make it possible for temperature values to be read out in °C and minimum and maximum values for temperature and pressure to be monitored.

At a glance


Switchable switching outputs (PNP/NPN) and analogue output (current/voltage)
Scalable analogue output (5:1 turn down)
High measurement accuracy: ± 0.5%
IO-Link for transmitting process data to the control as measured values in bar
Housing can be twisted in two places (process connection/display) and display can be rotated by 180°
Common process connections, also with flush-mounted membrane

Your Benefit


Low storage costs, short delivery times, low number of variants
Reduced installation time since housing and display can be rotated at two points
Rugged design: stainless steel measuring cell
No special conversion of IO-Link process data is required - it is shown automatically as measured values in bar
Extensive diagnosis options via IO-Link (e.g. pressure peaks, ambient temperature) deliver data for predictive maintenance
Economic solution for hydrostatic level measurement (thanks to high accuracy and small measuring ranges)

Applications


Factory automation applications:
Monitoring the media supply using pressure measurement
Pressure measurement in the hydraulic system
Measuring pressure, level, and temperature in the machine hydraulics
Monitoring of the pressure in the cylinder
Monitoring
