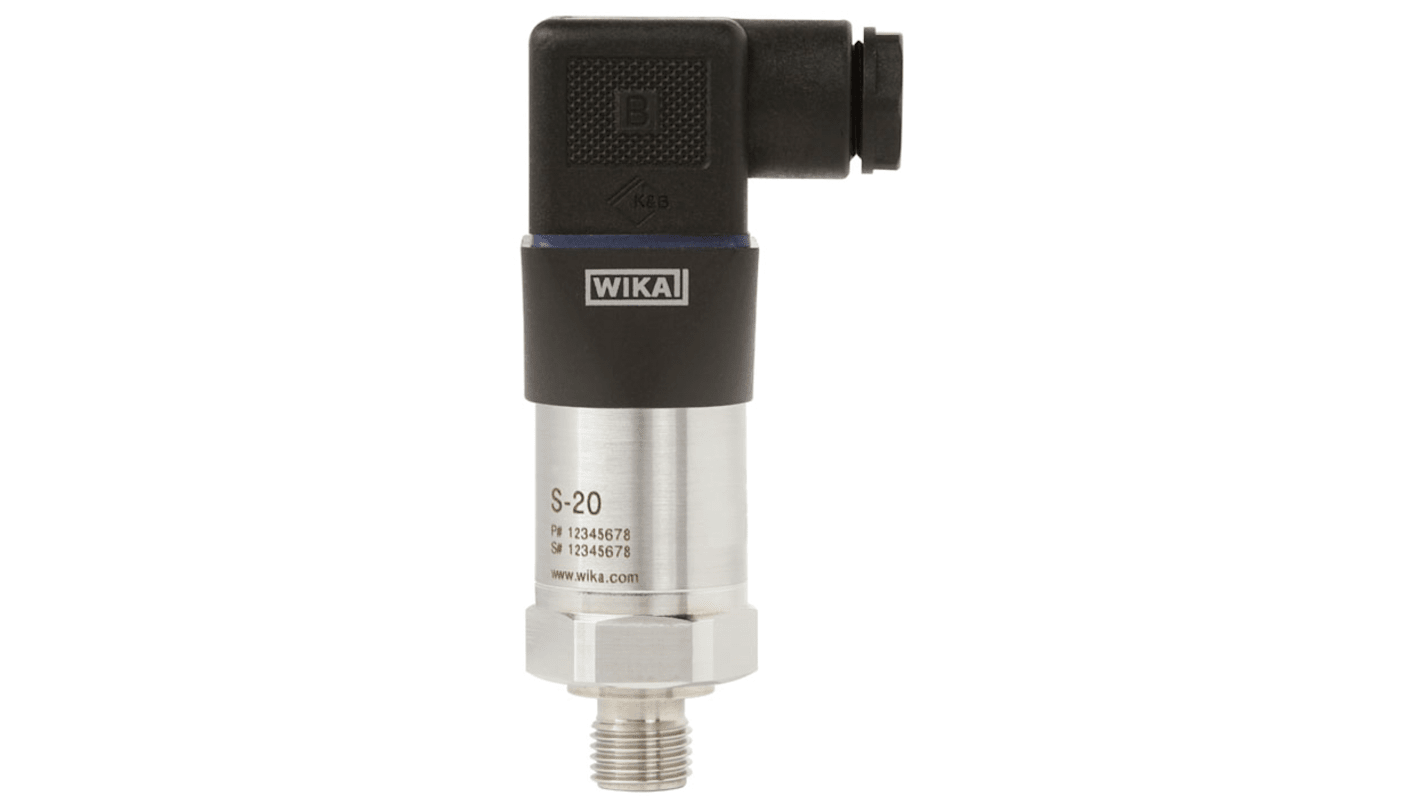

WIKA S-20 Series Pressure Sensor 0 bar 60 bar, Absolute, Gauge, Vacuum Reading

View all Pressure Sensors

Subtotal (1 unit)*

£309.30

(exc. VAT)

£371.16

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£309.30

*price indicative

RS Stock No.:
262-7452
Mfr. Part No.:
14100613
Brand:
WIKA
Find similar products by selecting one or more attributes.
Select all

Brand

WIKA

Maximum Pressure Measurement

60bar

Product Type

Pressure Sensor

Pressure Reading Type

Absolute, Gauge, Vacuum

Minimum Pressure Measurement

0bar

Series

S-20

Standards/Approvals

No

Housing Material

316L Stainless Steel

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

100°C

IP Rating

IP67

COO (Country of Origin):
DE
The WIKAs model S-20 pressure transmitter for general industrial applications is the ideal solution for customers with demanding measuring requirements. It features a very good accuracy, a robust design and an exceptional number of variants, meaning it can be suited to the widest range of applications.

Measuring ranges from 0 to 0.4 and 0 to 1600 bar (0 to 10 and 0 to 20000 psi)

Non-linearity of up to 0.125 % of span

Different output signals of 4 to 20 mA, DC 0 to 10 V, DC 1 to 5 V

Market-standard electrical connections of DIN EN 175301-803 A angular co
