RS PRO Pressure Sensor, 0bar Min, 160bar Max, Gauge Reading
- RS Stock No.:
- 254-7413
- Brand:
- RS PRO
Subtotal (1 unit)*
£125.67
(exc. VAT)
£150.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £125.67 |
*price indicative
- RS Stock No.:
- 254-7413
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pressure Reading Type | Gauge | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 160bar | |
Accuracy | ±0.5%FS | |
Media Measured | Air, Fluid, Mixed Oil, Water | |
Process Connection | G1/2B EN837 | |
Analogue Output | 4 → 20 mA | |
Electrical Connection | Angular DIN175301-803A | |
Series | M20 | |
Supply Voltage | 8 to 30 V dc | |
Housing Material | Stainless Steel 316L | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | 85°C | |
Mounting Type | Threaded | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pressure Reading Type Gauge | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 160bar | ||
Accuracy ±0.5%FS | ||
Media Measured Air, Fluid, Mixed Oil, Water | ||
Process Connection G1/2B EN837 | ||
Analogue Output 4 → 20 mA | ||
Electrical Connection Angular DIN175301-803A | ||
Series M20 | ||
Supply Voltage 8 to 30 V dc | ||
Housing Material Stainless Steel 316L | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Mounting Type Threaded | ||
- COO (Country of Origin):
- CN

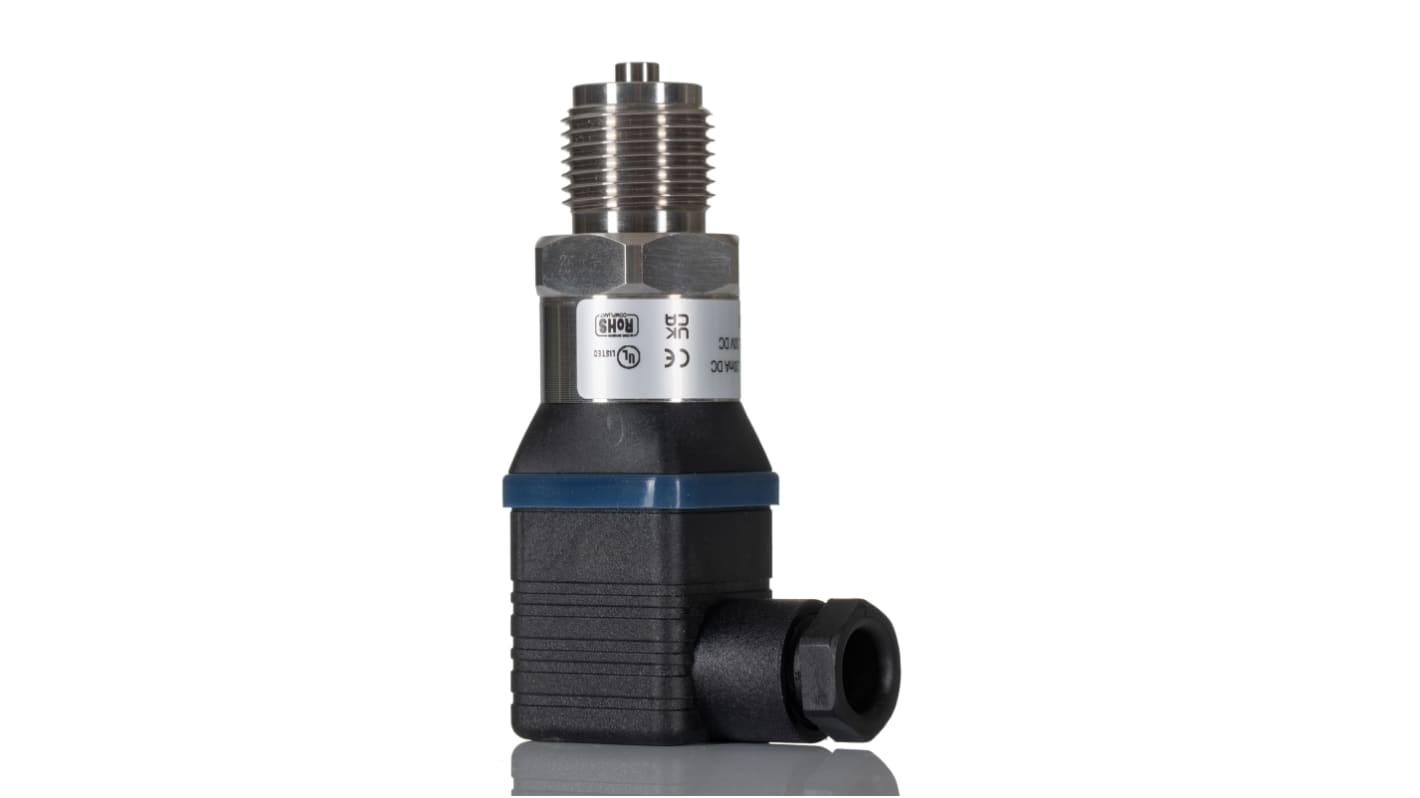

RS PRO M20 Pressure Sensor, Pressure Transmitter, Gauge, 0 to 160 bar.
M20 Pressure Sensor from RS PRO, also known in the industry as a Pressure Transmitter are best suited for various types of pressure measurement and monitoring within general industrial environments. With an exacting design all made from the best material this pressure sensor provides you with the best integrated electrical structure with temperature compensation.
If you need a cost-effective yet completely dependable and fully certified pressure transmitter that is versatile and suitable for various applications, then the RS PRO pressure sensor will not only meet but also exceed all your industrial requirements.
If you need a cost-effective yet completely dependable and fully certified pressure transmitter that is versatile and suitable for various applications, then the RS PRO pressure sensor will not only meet but also exceed all your industrial requirements.
FEATURES & BENEFITS
- Gauge pressure measurement.
- 0 to 160 bar pressure measurement range.
- Accurate to +/- 0.5% FS.
- Angular connection DIN 175301-803A.
- G1/2B EN 837 process connection.
- 4-PIN wiring.
- Made from 316L Stainless steel.
- Welded molecular sieve.
- Pressure port should be vertically downward.
- Shock and vibration resistant.
- Operates within 86kPa to 106Kpa atmospheric conditions.
- Service life of ten million times load cycle.
APPLICATIONS
- For use in Air, water, mixed oil, and water mediums (compatible with wetted parts).
- Water treatment.
- Pump and compressor.
- Hydraulic pressure.
- Pneumatic applications.
- Mechanical equipment.
- Refrigeration.
- Measurement and control.
- Shipbuilding.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, excellent value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Standards
CE, RoHS, REACH ,UL
