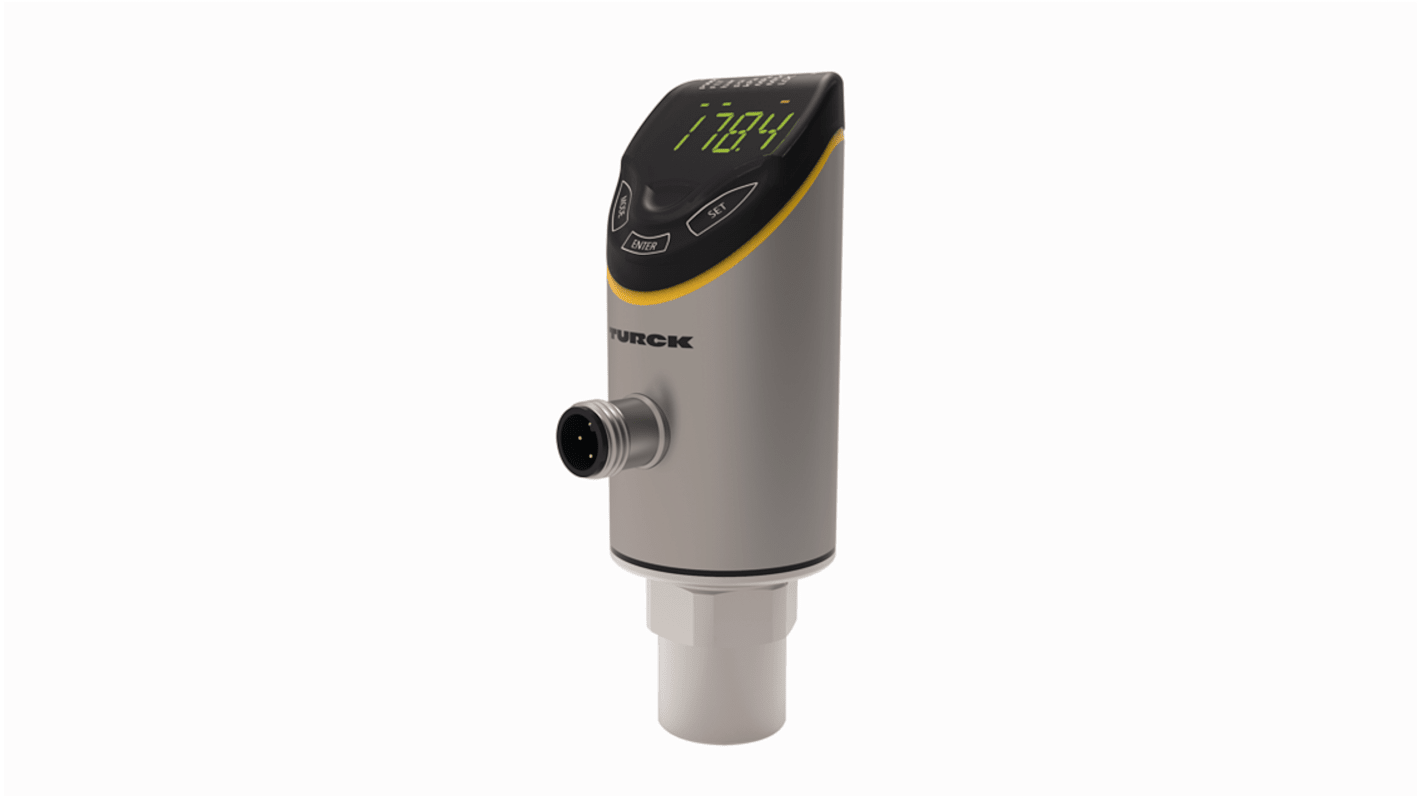

Turck Pressure Sensor, -1bar Min, 10bar Max, NO/NC, PNP/NPN Output, Relative Reading
- RS Stock No.:
- 232-1059
- Mfr. Part No.:
- PS510-10V-01-2UPN8-H1141
- Brand:
- Turck
2 In stock - FREE next working day delivery available
Price Each
£449.71
(exc. VAT)
£539.65
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £449.71 |
- RS Stock No.:
- 232-1059
- Mfr. Part No.:
- PS510-10V-01-2UPN8-H1141
- Brand:
- Turck
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Turck pressure sensor has metal measuring cell.
4-digit, tow-colored, 14-segment display, rotatable by 180°
Housing is rotatable after plugging the process connection
Housing is rotatable after plugging the process connection
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -1bar |
| Maximum Pressure Reading | 10bar |
| Accuracy | ± 0.25 % |
| Output Type | NO/NC, PNP/NPN |
| Process Connection | G1/4 |
| Supply Voltage | 18 → 33 V |
| Interface | IO-Link |
| IP Rating | IP6K6K / 6K7 / 6K9K |
