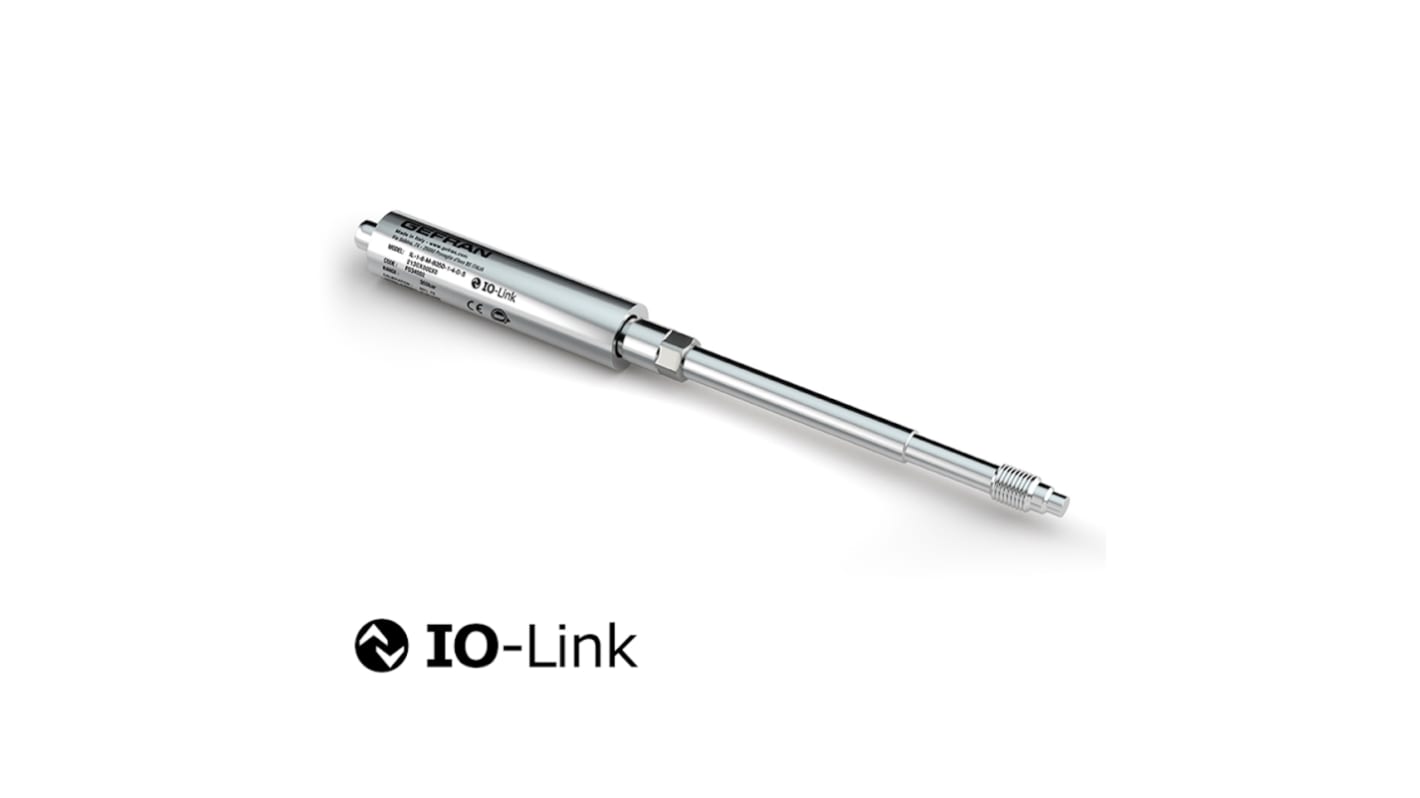

Gefran Melt Pressure Sensor, 0bar Min, 17bar Max, Relative Reading
- RS Stock No.:
- 221-7545
- Mfr. Part No.:
- ILK0-5-M-B17U-1-3-0-S-P T000A000X00
- Brand:
- Gefran
Available to back order for despatch 25/07/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£1,575.29
(exc. VAT)
£1,890.35
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £1,575.29 |
- RS Stock No.:
- 221-7545
- Mfr. Part No.:
- ILK0-5-M-B17U-1-3-0-S-P T000A000X00
- Brand:
- Gefran
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
The Gefran melt pressure transmitters ILK series rigid rod version has capability to read temperature of the media up to 538°C (1000°F). The constructive principle is based on the hydraulic transmission of the pressure.
Features and Benefits
Autozero function
Auxiliary information over IO-Link protocol
Operating temperature range is from -30 to +85°C
Auxiliary information over IO-Link protocol
Operating temperature range is from -30 to +85°C
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 17bar |
| Accuracy | ±0.5 % |
| Media Measured | Fluid |
| Supply Voltage | 18 → 30 V |
| Interface | IO-Link |
| IP Rating | IP65 |
