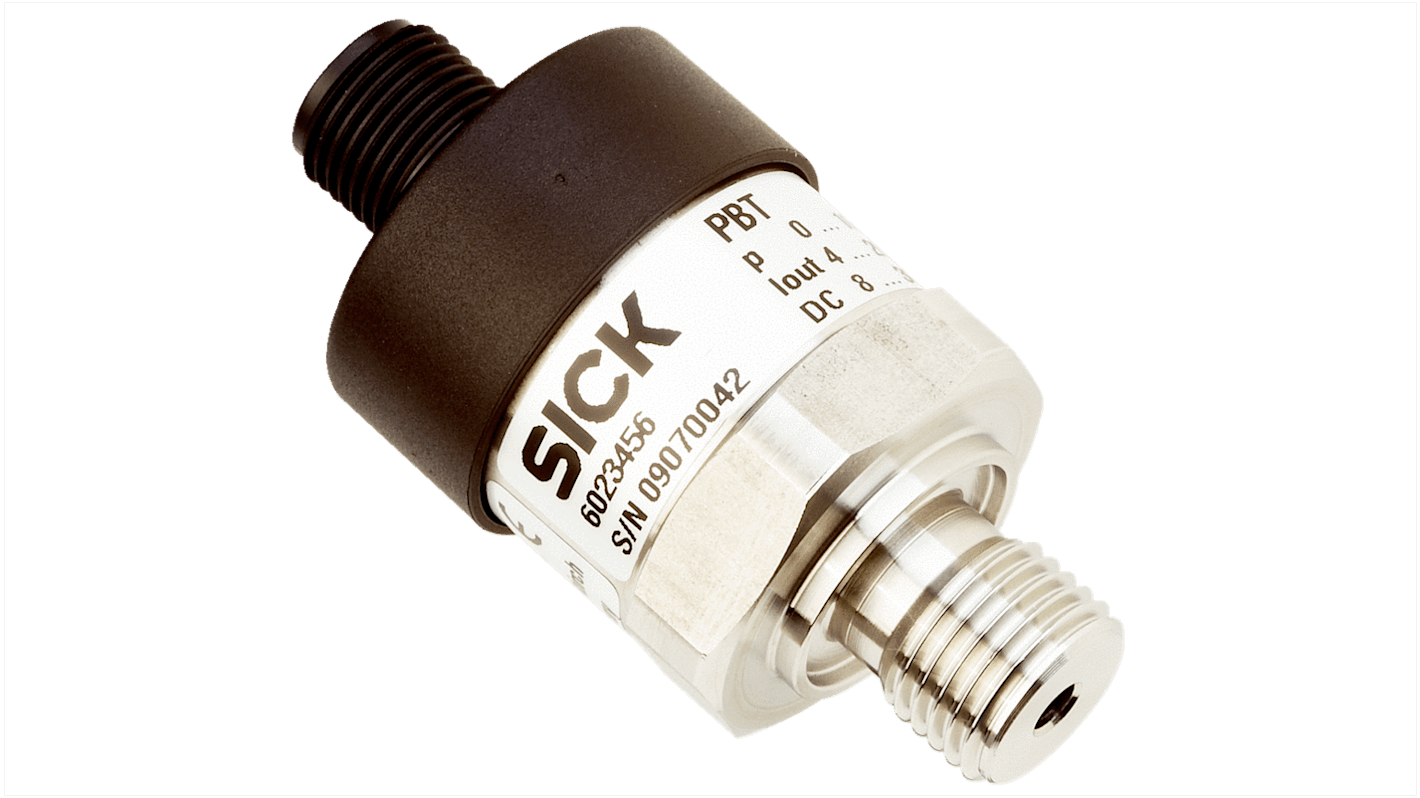

SICK PBT Series Pressure Sensor, 0bar Min, 400bar Max, Current Output, Relative Reading
- RS Stock No.:
- 213-3353
- Mfr. Part No.:
- PBT-RB400SG1SSNALA0Z
- Brand:
- SICK
Subtotal (1 unit)**
£137.17
(exc. VAT)
£164.60
(inc. VAT)
1 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit |
|---|---|
| 1 + | £137.17 |
**price indicative
- RS Stock No.:
- 213-3353
- Mfr. Part No.:
- PBT-RB400SG1SSNALA0Z
- Brand:
- SICK
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 400bar | |
| Accuracy | <±1 % | |
| Output Type | Current | |
| Media Measured | Air, Gas, Hydraulic Fluid, Liquid, Oil, Water | |
| Process Connection | G1/4 | |
| Electrical Connection | DIN EN 175301 Connector | |
| Analogue Output | 4 → 20 mA | |
| Response Time | <4 ms | |
| Series | PBT | |
| Maximum Current | 25 mA | |
| Supply Voltage | 8 - 30 V | |
| Housing Material | Stainless Steel/Plastic | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | 0°C | |
| IP Rating | IP65 | |
| Mounting Type | Threaded | |
Select all | ||
|---|---|---|
Brand SICK | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 400bar | ||
Accuracy <±1 % | ||
Output Type Current | ||
Media Measured Air, Gas, Hydraulic Fluid, Liquid, Oil, Water | ||
Process Connection G1/4 | ||
Electrical Connection DIN EN 175301 Connector | ||
Analogue Output 4 → 20 mA | ||
Response Time <4 ms | ||
Series PBT | ||
Maximum Current 25 mA | ||
Supply Voltage 8 - 30 V | ||
Housing Material Stainless Steel/Plastic | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature 0°C | ||
IP Rating IP65 | ||
Mounting Type Threaded | ||
