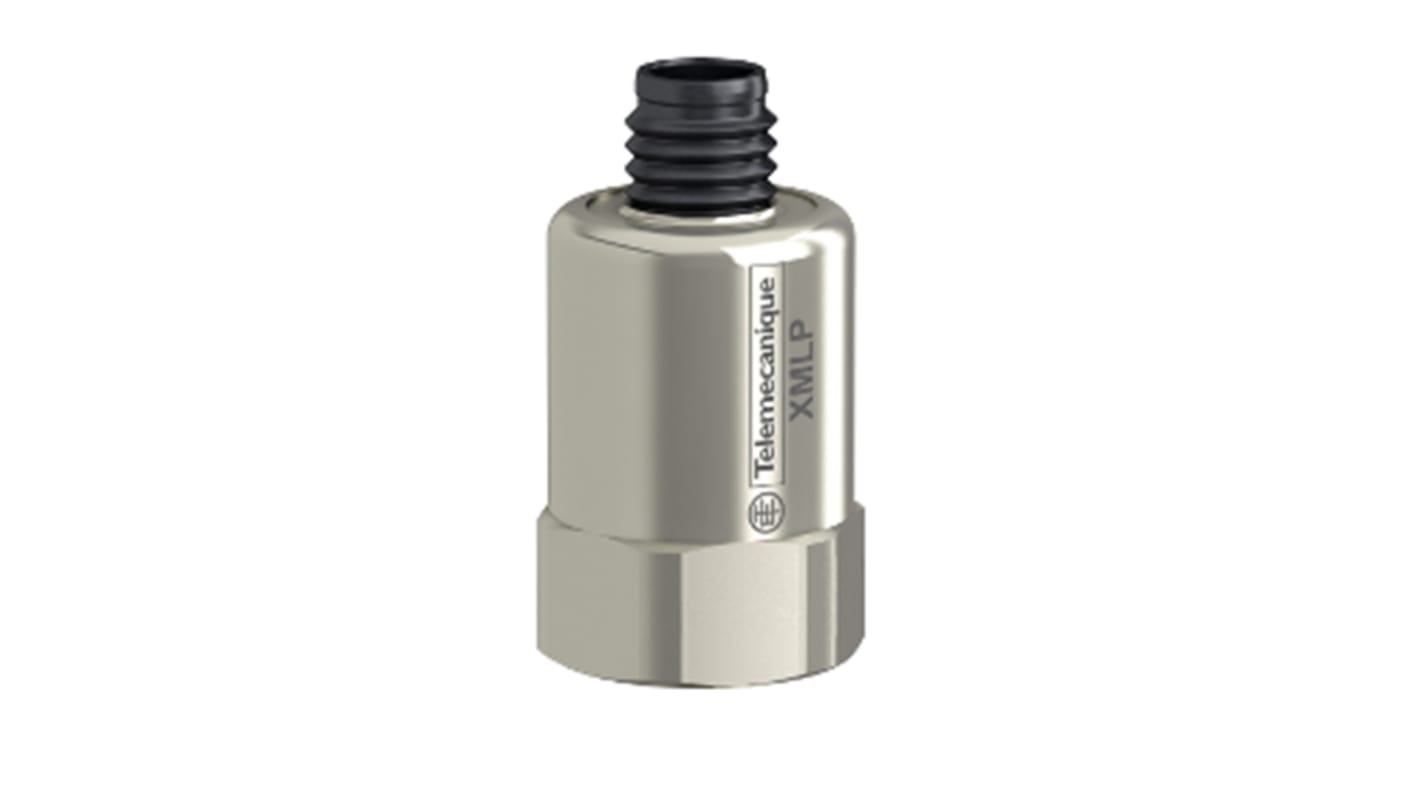

Telemecanique Sensors Pressure Switch, 0bar Min, 10bar Max, Analogue Output
- RS Stock No.:
- 176-7852
- Mfr. Part No.:
- XMLP010BD190
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£147.76
(exc. VAT)
£177.31
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 08 December 2025
Units | Per unit |
|---|---|
| 1 + | £147.76 |
*price indicative
- RS Stock No.:
- 176-7852
- Mfr. Part No.:
- XMLP010BD190
- Brand:
- Telemecanique Sensors
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 10bar | |
| Accuracy | 0.1 %, ±0.5 (Measurement) % | |
| Output Type | Analogue | |
| Media Measured | Air, Fresh Water, Gas, Hydraulic Oil, Refrigeration Fluid | |
| Process Connection | 7/16 - 20 UNF SAE | |
| Analogue Output | 0.5 → 4.5 V | |
| Electrical Connection | 4 Pin M12 Male Connector | |
| Response Time | ≤2 ms | |
| Maximum Current | 7 mA | |
| Supply Voltage | 5 V dc | |
| Housing Material | Stainless Steel 303 | |
| Minimum Operating Temperature | -30°C | |
| IP Rating | IP65, IP67, IP69K | |
| Mounting Type | Thread Mount | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy 0.1 %, ±0.5 (Measurement) % | ||
Output Type Analogue | ||
Media Measured Air, Fresh Water, Gas, Hydraulic Oil, Refrigeration Fluid | ||
Process Connection 7/16 - 20 UNF SAE | ||
Analogue Output 0.5 → 4.5 V | ||
Electrical Connection 4 Pin M12 Male Connector | ||
Response Time ≤2 ms | ||
Maximum Current 7 mA | ||
Supply Voltage 5 V dc | ||
Housing Material Stainless Steel 303 | ||
Minimum Operating Temperature -30°C | ||
IP Rating IP65, IP67, IP69K | ||
Mounting Type Thread Mount | ||
Maximum Operating Temperature +85°C | ||
