RS PRO Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

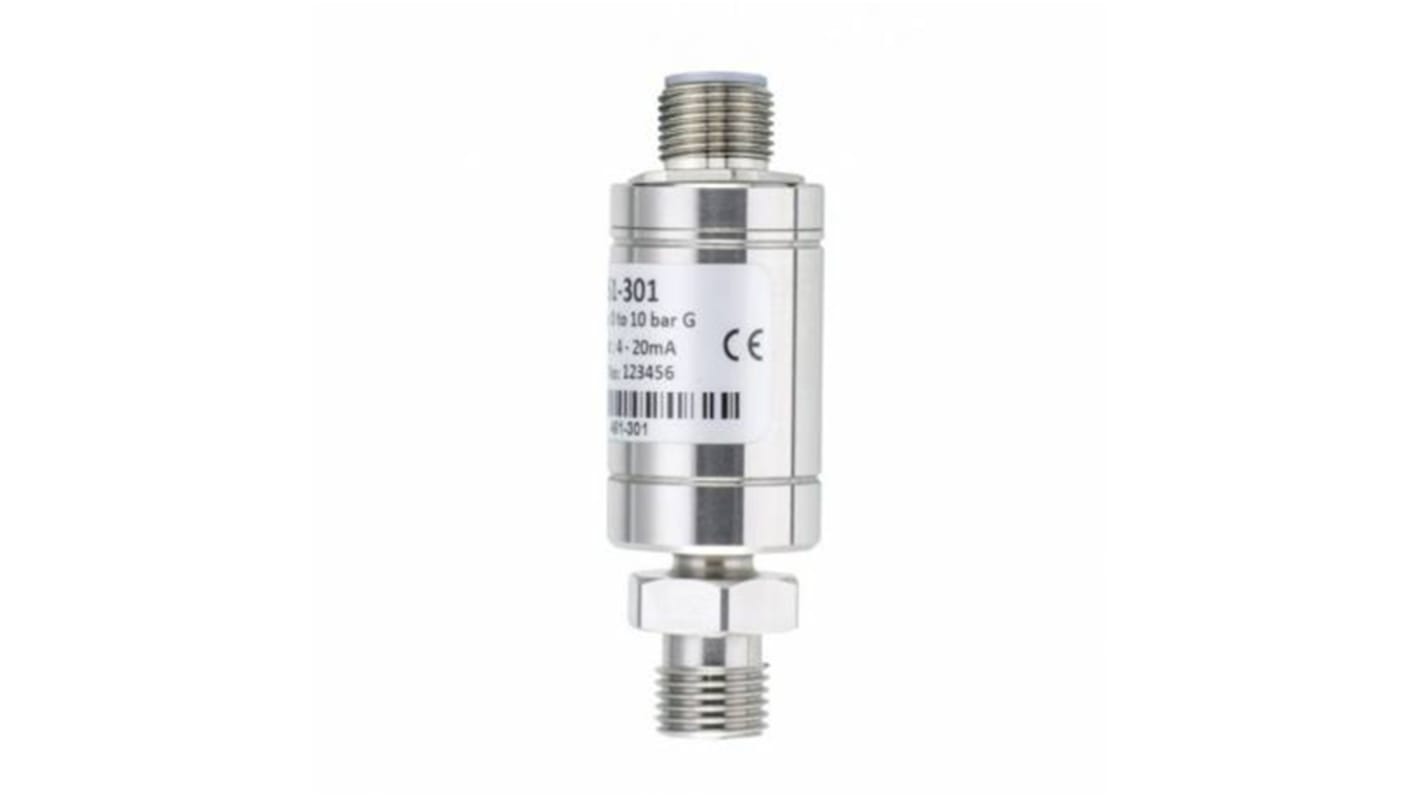

The IPSLU-M12 is suitable for use in a wide range of applications. The probe uses a Piezo-resistive silicon sensor, giving excellent media compatibility within an oil filled 316L stainless steel housing The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving stable electronics, especially in high vibration/shock applications. Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data*.

Piezo-resistive sensorStainless steel body & diaphragmAccuracy <±0.25% FS BFSL0-5 Volts or 4-20 mA.outputsPressure ranges from 1 5 psiM12 4-Pin connector

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0psi
Maximum Pressure Reading 5psi
Accuracy ±0.25 %
Output Type Analogue
Process Connection NPT 1/4
Electrical Connection M12 Connector
Analogue Output 0 5 V
Supply Voltage 9 32 V dc
Housing Material Stainless Steel
IP Rating IP67
Mounting Type Threaded
Series IPSLU
Maximum Operating Temperature +80°C
Minimum Operating Temperature -20°C
5 In stock for FREE next working day delivery
Price Each
£ 160.66
(exc. VAT)
£ 192.79
(inc. VAT)
Units
Per unit
1 +
£160.66
