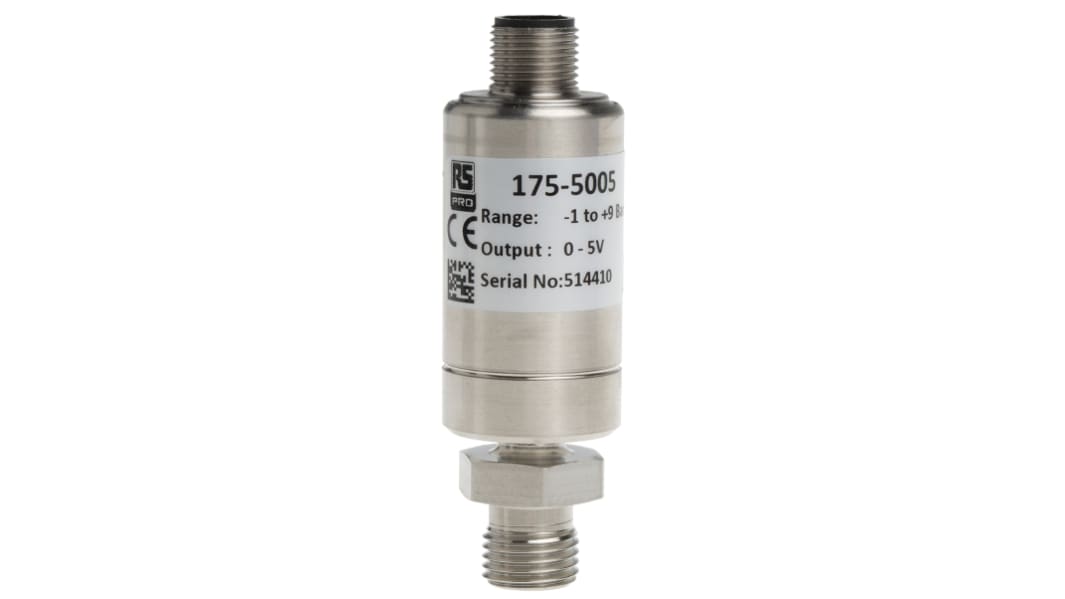

RS PRO Pressure Sensor, -1bar Min, 9bar Max, Analogue Output, Relative Reading
- RS Stock No.:
- 175-5005
- Brand:
- RS PRO
1 / 6
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£180.21
(exc. VAT)
£216.25
(inc. VAT)
- RS Stock No.:
- 175-5005
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | -1bar | |
| Maximum Pressure Reading | 9bar | |
| Accuracy | ±0.25 % | |
| Output Type | Analogue | |
| Process Connection | G1/4 | |
| Electrical Connection | M12 4-pin | |
| Analogue Output | 0 → 5 V | |
| Series | IPS | |
| Supply Voltage | 9 → 32 V dc | |
| Housing Material | Stainless Steel | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Mounting Type | Threaded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading -1bar | ||
Maximum Pressure Reading 9bar | ||
Accuracy ±0.25 % | ||
Output Type Analogue | ||
Process Connection G1/4 | ||
Electrical Connection M12 4-pin | ||
Analogue Output 0 → 5 V | ||
Series IPS | ||
Supply Voltage 9 → 32 V dc | ||
Housing Material Stainless Steel | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Mounting Type Threaded | ||
