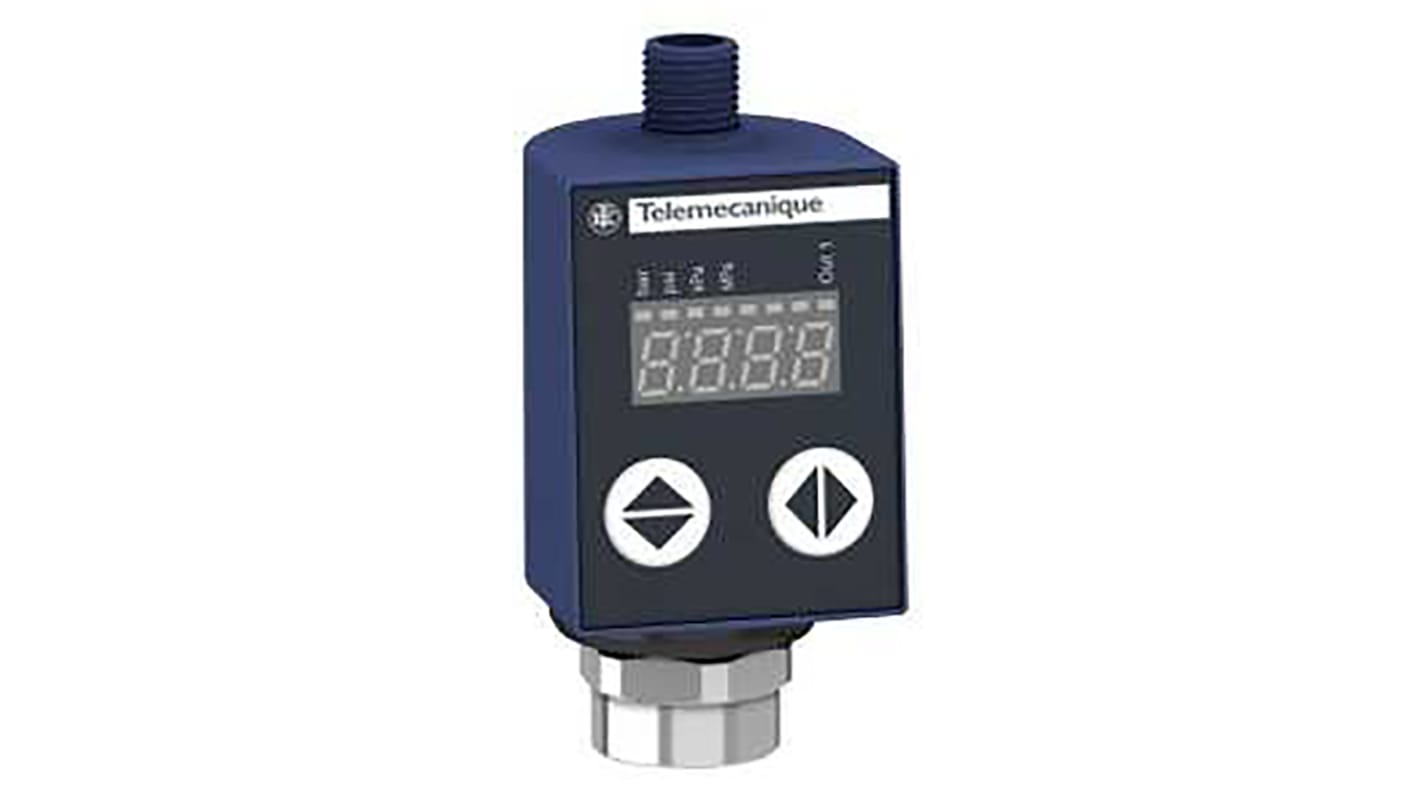

Telemecanique Sensors Pressure Switch, 5 (Falling) bar, 8 (Rising) bar Min, 100 (Rising) bar, 97 (Falling) bar Max,
- RS Stock No.:
- 124-2156
- Mfr. Part No.:
- XMLR100M1P25
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£440.26
(exc. VAT)
£528.31
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £440.26 |
*price indicative
- RS Stock No.:
- 124-2156
- Mfr. Part No.:
- XMLR100M1P25
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Pressure Reading Type | Differential | |
| Minimum Pressure Reading | 5 (Falling) bar, 8 (Rising) bar | |
| Maximum Pressure Reading | 100 (Rising) bar, 97 (Falling) bar | |
| Accuracy | ≤0.2 (Repeat) %, ≤0.6 (Output) %, ≤1 (Overall) % | |
| Output Type | Analogue, PNP-NO/NC | |
| Media Measured | Air, Fresh Water, Hydraulic Oil, Refrigeration Fluid | |
| Process Connection | G1/4 | |
| Analogue Output | 4 → 20 mA | |
| Electrical Connection | M12 4-Pin Connector | |
| Response Time | ≤10 (Analogue) ms, ≤5 (Discrete) ms | |
| Maximum Current | ≤50 mA | |
| Supply Voltage | 24 V dc | |
| Housing Material | Polyacrylamide, Stainless Steel 316L | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP65, IP67 | |
| Maximum Operating Temperature | +80°C | |
| Mounting Type | Vertical Mount | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Pressure Reading Type Differential | ||
Minimum Pressure Reading 5 (Falling) bar, 8 (Rising) bar | ||
Maximum Pressure Reading 100 (Rising) bar, 97 (Falling) bar | ||
Accuracy ≤0.2 (Repeat) %, ≤0.6 (Output) %, ≤1 (Overall) % | ||
Output Type Analogue, PNP-NO/NC | ||
Media Measured Air, Fresh Water, Hydraulic Oil, Refrigeration Fluid | ||
Process Connection G1/4 | ||
Analogue Output 4 → 20 mA | ||
Electrical Connection M12 4-Pin Connector | ||
Response Time ≤10 (Analogue) ms, ≤5 (Discrete) ms | ||
Maximum Current ≤50 mA | ||
Supply Voltage 24 V dc | ||
Housing Material Polyacrylamide, Stainless Steel 316L | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP65, IP67 | ||
Maximum Operating Temperature +80°C | ||
Mounting Type Vertical Mount | ||
- COO (Country of Origin):
- CH
OsiSense XMLR Pressure Sensors
The high precision and effective operation of the Telemecanique OsiSense XMLR sensors makes them suitable for use within various industrial applications that need pressure/vacuum display, control and regulation. These compact pressure sensors are easy and flexible to mount, reducing time and effort needed to install.
Paticularly suitable for:
Injection Machines
Pneumatic systems
Moulding and thermoforming presses
Pneumatic systems and assembly machinery
Pumping and fresh water treatment
Injection Machines
Pneumatic systems
Moulding and thermoforming presses
Pneumatic systems and assembly machinery
Pumping and fresh water treatment
The stainless steel 316 fluid entry and glass-fibre reinforced body provides the pressure switches with excellent resistance to mechanical wear and tear.
