Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 123-5252
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Accuracy | ±0.25 % | |
| Output Type | Analogue | |
| Electrical Connection | Screw Terminals | |
| Analogue Output | 0 → 5 V, 4 → 20 mA | |
| Series | IWPT | |
| Maximum Current | 5 A | |
| Supply Voltage | 12 → 32 V dc | |
| Housing Material | ABS | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +50°C | |
| IP Rating | IP65 | |
| Mounting Type | DIN Rail, Wall Mount | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Accuracy ±0.25 % | ||
Output Type Analogue | ||
Electrical Connection Screw Terminals | ||
Analogue Output 0 → 5 V, 4 → 20 mA | ||
Series IWPT | ||
Maximum Current 5 A | ||
Supply Voltage 12 → 32 V dc | ||
Housing Material ABS | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
IP Rating IP65 | ||
Mounting Type DIN Rail, Wall Mount | ||
- COO (Country of Origin):
- GB

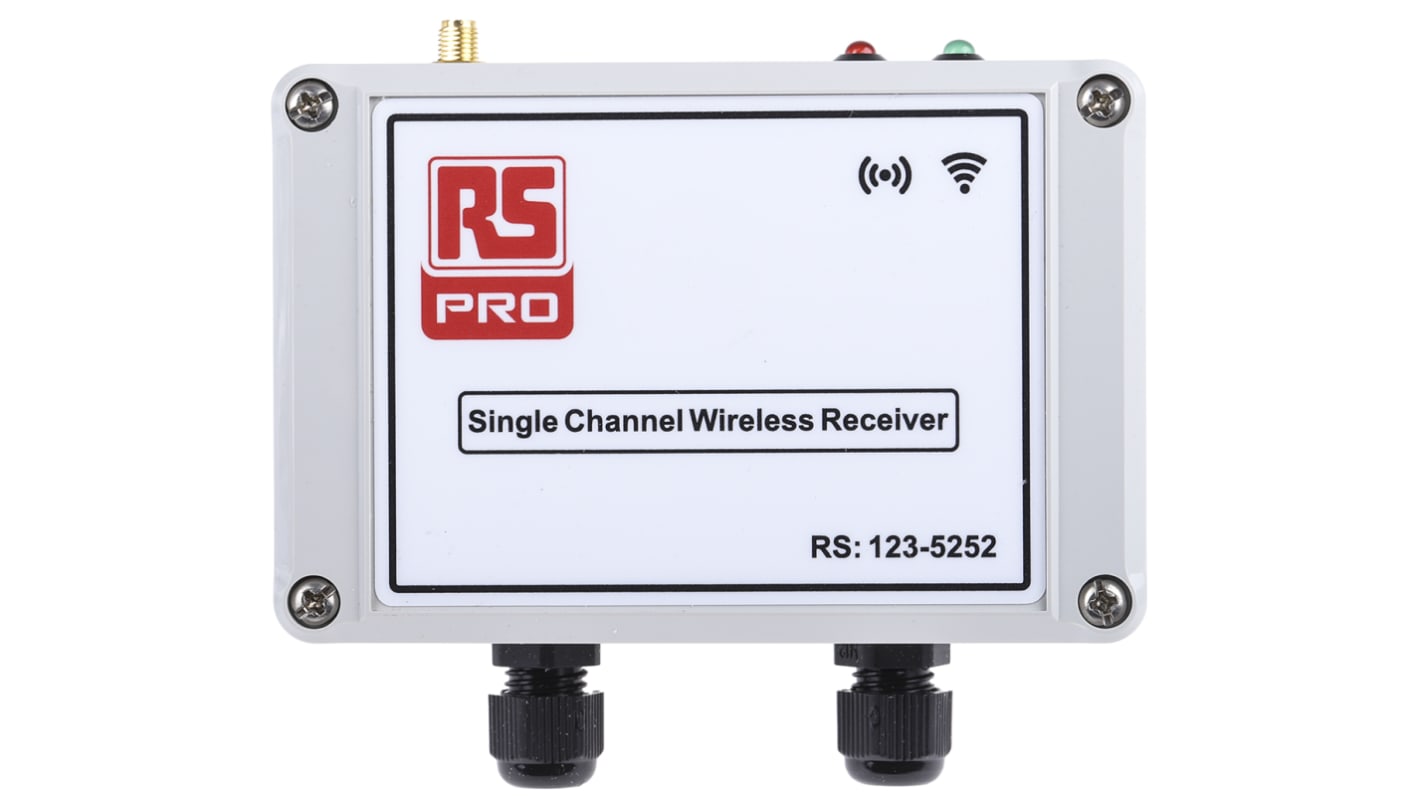

RS Pro IWR Series Wireless Receiver
RS Pro IWR series wireless receiver designed to pair with the IWPT series of wireless pressure transducers. This pairing offers an effective solution for inaccessible installation environments.
The receiver has a user selectable voltage or mA output corresponding to the calibrated pressure range of the remote wireless pressure transducer. Also featuring a 5A rated changeover contact for alarm functionality.
User configuration is possible, however the single channel receiver is designed to work out of the box offering a simple plug and play solution.
The receiver has a user selectable voltage or mA output corresponding to the calibrated pressure range of the remote wireless pressure transducer. Also featuring a 5A rated changeover contact for alarm functionality.
User configuration is possible, however the single channel receiver is designed to work out of the box offering a simple plug and play solution.
Features and Benefits
Single or Five channel options
User-selectable 1 to 5 V or 4 to 20 mA receiver output
Clean contact output for process, low battery or loss of signal alarm function
Simple software or DIL switch pairing with IWPT pressure transducers
Up to 750 m range, line-of-sight
12 V dc to 32 V dc powered
End-to-end accuracy of ±0.25% FS BFSL
LED indication of wireless link
Product Application Information
The RS Pro wireless channel receiver has been designed to pair with the IWPT and IWPTL series of wireless pressure transducers.
