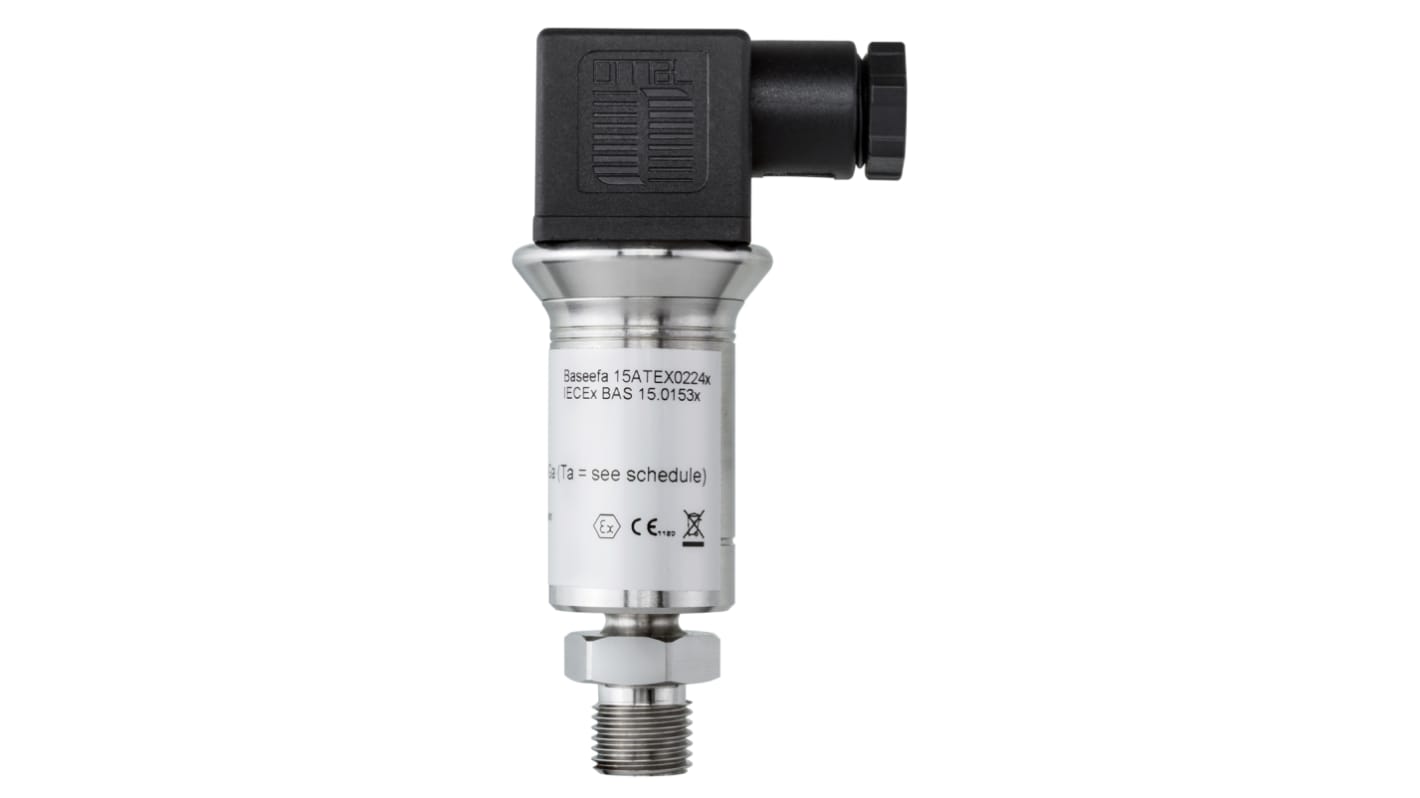

RS PRO ATEX, IECEx Pressure Sensor Gauge

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS Pro IPSL Series ATEX Pressure Transmitters

RS Pro IPSL ATEX industrial pressure transducers are suitable for use in a wide range of industrial applications. A piezoresistive ceramic sensor gives excellent media compatibility within a stainless steel housing.

An incorporated microprocessor-based amplifier, requiring no adjusting, gives stable electronics, especially industrial applications.

Piezo-resistive thick film ceramic sensor
Stainless steel body
+/- 0.25% accuracy
Microprocessor based amplifier
Pressure ranges from 50 to 1000 mbar

Note

Temperature compensated, calibrated and supplied with a traceable serial number and calibration certificate.

Specifications
Attribute Value
Pressure Reading Type Gauge
Minimum Pressure Reading 0mbar
Maximum Pressure Reading 750mbar
Accuracy ±0.25 %
Output Type Analogue
Media Measured Oil
Process Connection BSP 1/4
Electrical Connection DIN 46350 Connector
Analogue Output 4 → 20 mA
Maximum Current 28 mA
Supply Voltage 9 → 32 V dc
Housing Material Stainless Steel
IP Rating IP65
Hazardous Area Certification ATEX, IECEx
Maximum Operating Temperature +80°C
Mounting Type Threaded
Minimum Operating Temperature -20°C
1 In stock for FREE next working day delivery
Price Each
£ 271.70
(exc. VAT)
£ 326.04
(inc. VAT)
Units
Per unit
1 +
£271.70
