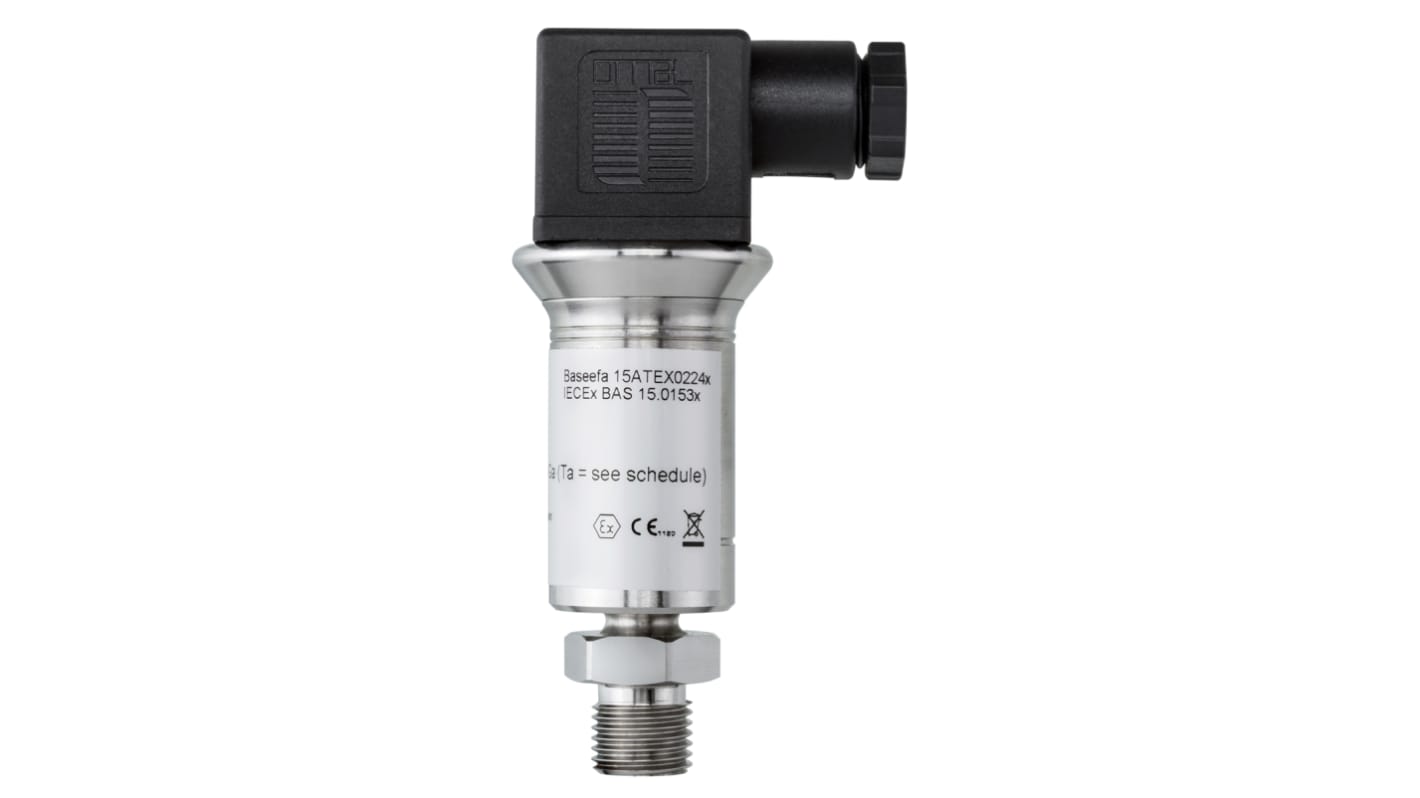

RS PRO Pressure Sensor, 0bar Min, 0.1bar Max, Analogue Output, Relative Reading
- RS Stock No.:
- 102-4154
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 102-4154
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 0.1bar | |
| Accuracy | ±0.25 % | |
| Output Type | Analogue | |
| Media Measured | Oil | |
| Process Connection | G1/4 | |
| Analogue Output | 4 → 20 mA | |
| Electrical Connection | DIN 43650 Type A | |
| Maximum Current | 28 mA | |
| Supply Voltage | 9 → 32 V dc | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| Mounting Type | Threaded | |
| Hazardous Area Certification | ATEX, IECEx | |
| IP Rating | IP65 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 0.1bar | ||
Accuracy ±0.25 % | ||
Output Type Analogue | ||
Media Measured Oil | ||
Process Connection G1/4 | ||
Analogue Output 4 → 20 mA | ||
Electrical Connection DIN 43650 Type A | ||
Maximum Current 28 mA | ||
Supply Voltage 9 → 32 V dc | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Mounting Type Threaded | ||
Hazardous Area Certification ATEX, IECEx | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- GB
RS PRO Pressure Sensor for Oil, 0.1 Bar Maximum Pressure Reading, Analogue
Choose this RS PRO pressure sensor for monitoring the pressure of oil in potentially hazardous locations. It's ATmosphere EXplosible (ATEX) certified, so it's safe to use in environments where chemicals may generate explosive atmospheres. The component features a piezo-resistive silicon sensor that's extremely robust and reliable, even when exposed to vibration and shock. Its stainless steel housing has excellent corrosion resistance to stop the sensor from rusting quickly.
The unit is dust-tight and water-resistant, so it has an IP65 (Ingress Protection) rating. It's supplied calibrated and ready to use. You'll find a sensor like this one in power production and chemical and pharmaceutical industries. It complies with CE (Conformité Européenne) electromagnetic discharge standards, so you know it won't interfere with the good electrical function of nearby components.
The unit is dust-tight and water-resistant, so it has an IP65 (Ingress Protection) rating. It's supplied calibrated and ready to use. You'll find a sensor like this one in power production and chemical and pharmaceutical industries. It complies with CE (Conformité Européenne) electromagnetic discharge standards, so you know it won't interfere with the good electrical function of nearby components.
Features and Benefits
• Accuracy of ±0.25%
• Analogue output of 4 mA to 20 mA
• DIN 43650 Type A electrical connection
• ATmosphere EXplosible (ATEX) and International Electrotechnical Commission for Explosive Atmospheres (IECEx) certified
• Stainless steel housing material
• Ingress Protection (IP) rating of IP65
• Maximum current of 28 mA
• Operating temperature range of -20°C to +80°C
• Pressure reading range of 0 bar to 0.1 bar
• Oil media measured
• Threaded mounting type
• Analogue output type
• Relative pressure reading type
• G1/4 process connection
• Supply voltage of 9 V DC to 32 V DC
• Analogue output of 4 mA to 20 mA
• DIN 43650 Type A electrical connection
• ATmosphere EXplosible (ATEX) and International Electrotechnical Commission for Explosive Atmospheres (IECEx) certified
• Stainless steel housing material
• Ingress Protection (IP) rating of IP65
• Maximum current of 28 mA
• Operating temperature range of -20°C to +80°C
• Pressure reading range of 0 bar to 0.1 bar
• Oil media measured
• Threaded mounting type
• Analogue output type
• Relative pressure reading type
• G1/4 process connection
• Supply voltage of 9 V DC to 32 V DC
