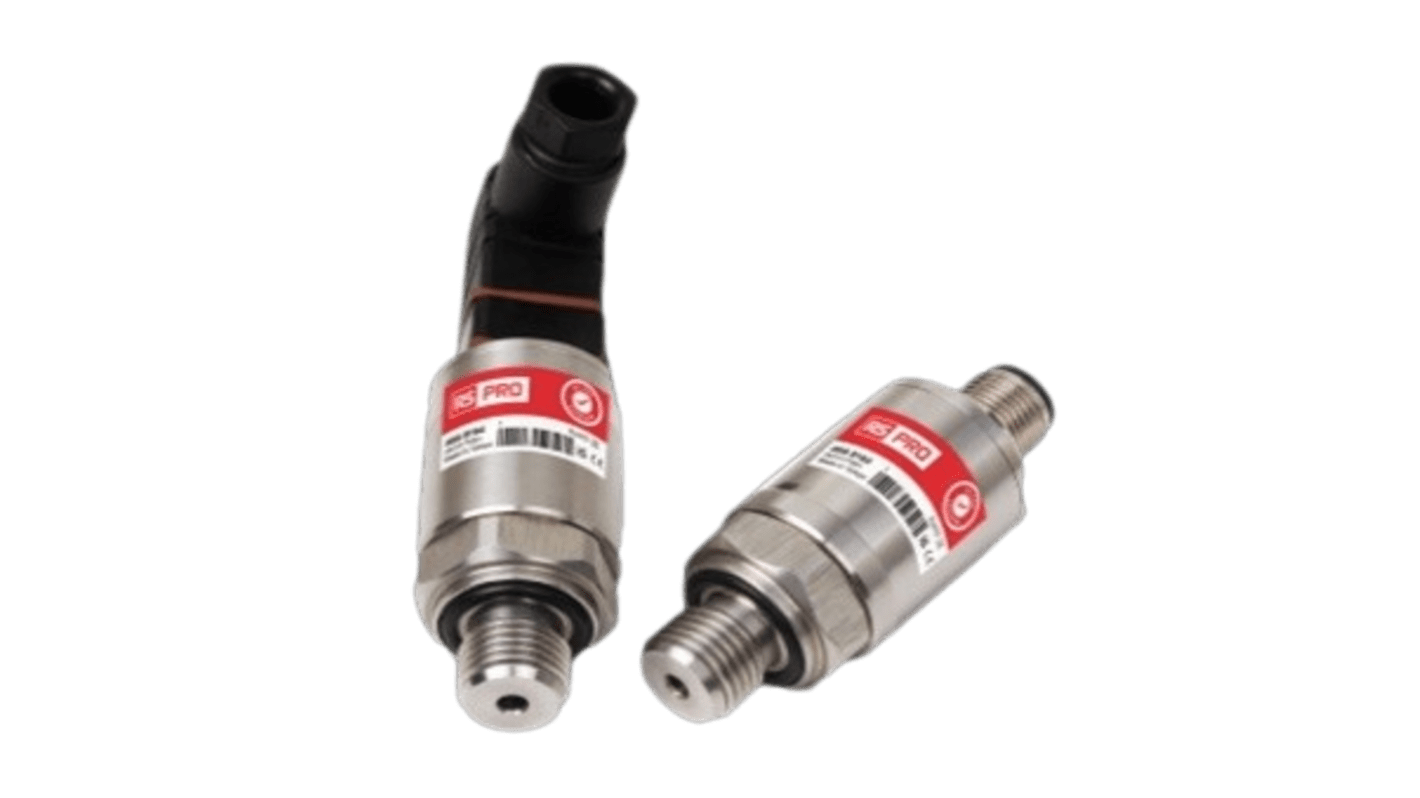

RS PRO Pressure Sensor, 16bar Max, Current Output, Absolute Reading
- RS Stock No.:
- 429-783
- Brand:
- RS PRO
Subtotal (1 unit)*
£132.47
(exc. VAT)
£158.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £132.47 |
*price indicative
- RS Stock No.:
- 429-783
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pressure Reading Type | Absolute | |
Maximum Pressure Reading | 16bar | |
Accuracy | ±1% | |
Output Type | Current | |
Process Connection | G 1/4 | |
Analogue Output | 4 → 20mA | |
Electrical Connection | 2-Wire, Cable | |
Response Time | 1m/s | |
Maximum Current | 20mA | |
Supply Voltage | 8 → 24, 12 → 28V dc | |
Housing Material | Stainless Steel | |
Maximum Operating Temperature | 80°C | |
Minimum Operating Temperature | -40°C | |
IP Rating | IP67 | |
Mounting Type | Thread Mount | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pressure Reading Type Absolute | ||
Maximum Pressure Reading 16bar | ||
Accuracy ±1% | ||
Output Type Current | ||
Process Connection G 1/4 | ||
Analogue Output 4 → 20mA | ||
Electrical Connection 2-Wire, Cable | ||
Response Time 1m/s | ||
Maximum Current 20mA | ||
Supply Voltage 8 → 24, 12 → 28V dc | ||
Housing Material Stainless Steel | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -40°C | ||
IP Rating IP67 | ||
Mounting Type Thread Mount | ||
- COO (Country of Origin):
- TR
RS PRO Pressure Transmitter, 600 bar Pressure Measuring Range
The RS PRO Pressure Transmitter is a compact and robust solution designed for accurate pressure measurement up to 600 bar. Ideal for industrial applications, it provides reliable absolute pressure feedback, ensuring precise control and monitoring.
Features and Benefits
Compact design: Saves space in installations
High robustness: Durable for demanding environments
Accurate pressure measurement: Ensures precise readings up to 600 bar
Wide pressure range: Suitable for various industrial needs
IP67 rating: Offers protection against dust and water
Stainless steel housing: Provides corrosion resistance
4 to 20 mA analogue output: Facilitates easy integration with control systems
Thread mount: Simplifies installation
High robustness: Durable for demanding environments
Accurate pressure measurement: Ensures precise readings up to 600 bar
Wide pressure range: Suitable for various industrial needs
IP67 rating: Offers protection against dust and water
Stainless steel housing: Provides corrosion resistance
4 to 20 mA analogue output: Facilitates easy integration with control systems
Thread mount: Simplifies installation
Applications
Industrial automation
Process control
Hydraulic systems
Pneumatic systems
Process control
Hydraulic systems
Pneumatic systems
Additional Information
Key standards: IP67 rating for environmental protection
Electrical connection: 2-wire cable with 4-pin connector
Electrical connection: 2-wire cable with 4-pin connector
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
