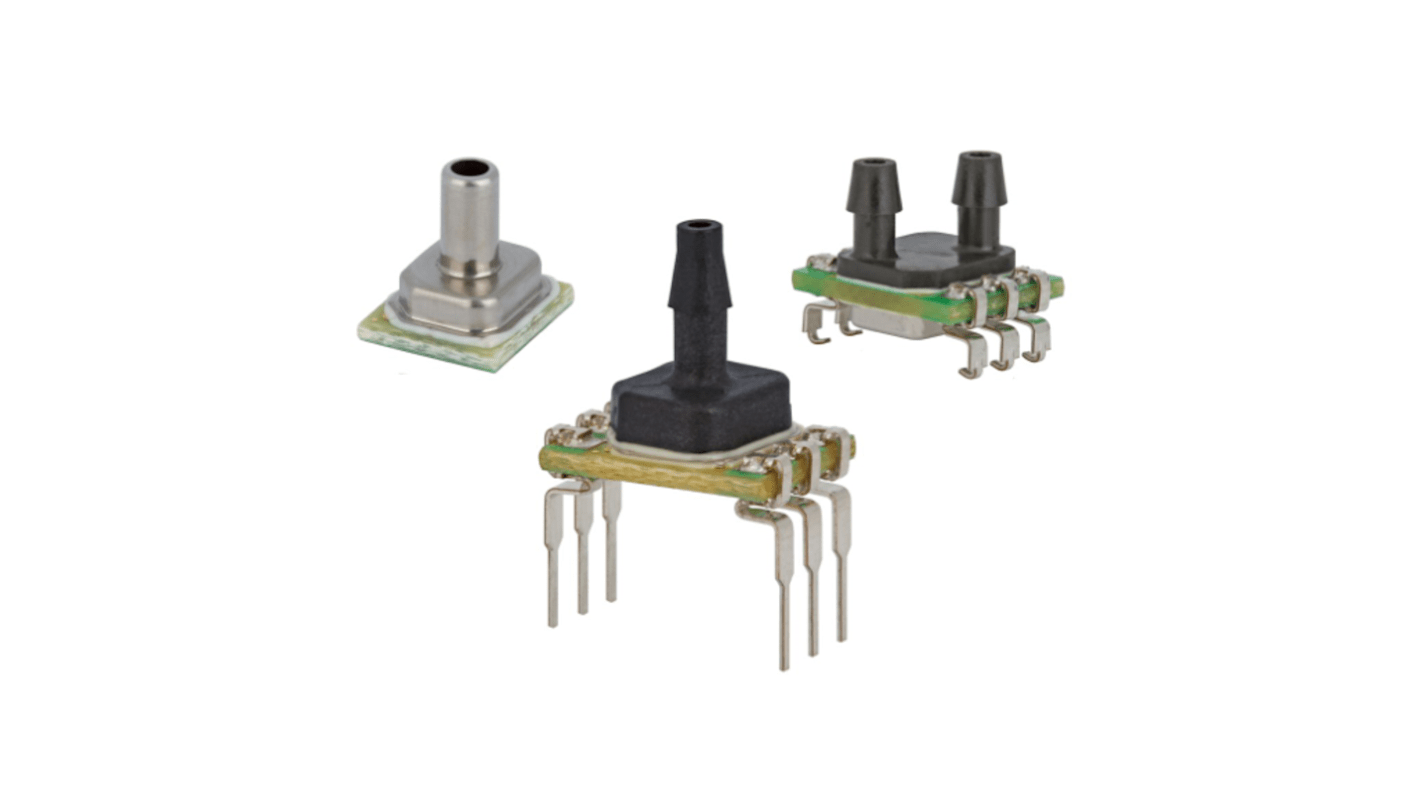

Honeywell Piezoresistive Pressure Sensor, 6.89476kPa Operating Max, Surface Mount, 6-Pin, 413.685kPa Overload Max, SMT
- RS Stock No.:
- 236-2697
- Mfr. Part No.:
- ABP2MRRT001PDSA3XX
- Brand:
- Honeywell
32 In stock - FREE next working day delivery available
Price Each
£26.29
(exc. VAT)
£31.55
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £26.29 |
5 - 9 | £22.25 |
10 - 24 | £21.01 |
25 + | £19.66 |
- RS Stock No.:
- 236-2697
- Mfr. Part No.:
- ABP2MRRT001PDSA3XX
- Brand:
- Honeywell
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Honeywell ABP2 series are piezoresistive silicon pressure sensor offering a digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include non-linearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). it has calibrated output values for pressure and temperature are updated at approximately 200 Hz.
24-bit digital I2C or SPI-compatible output
IoT (Internet of Things) ready interface
Ultra-low power consumption
Calibrated over wide temperature range of -40°C to 110°C
Long-term stability as low as ±0.2 %FSS
IoT (Internet of Things) ready interface
Ultra-low power consumption
Calibrated over wide temperature range of -40°C to 110°C
Long-term stability as low as ±0.2 %FSS
Specifications
Attribute | Value |
---|---|
Sensor Type | Differential Pressure Sensors |
Maximum Overload Pressure | 413.685kPa |
Mounting Type | Surface Mount |
Package Type | SMT |
Pin Count | 6 |
Maximum Operating Pressure | 6.89476kPa |
