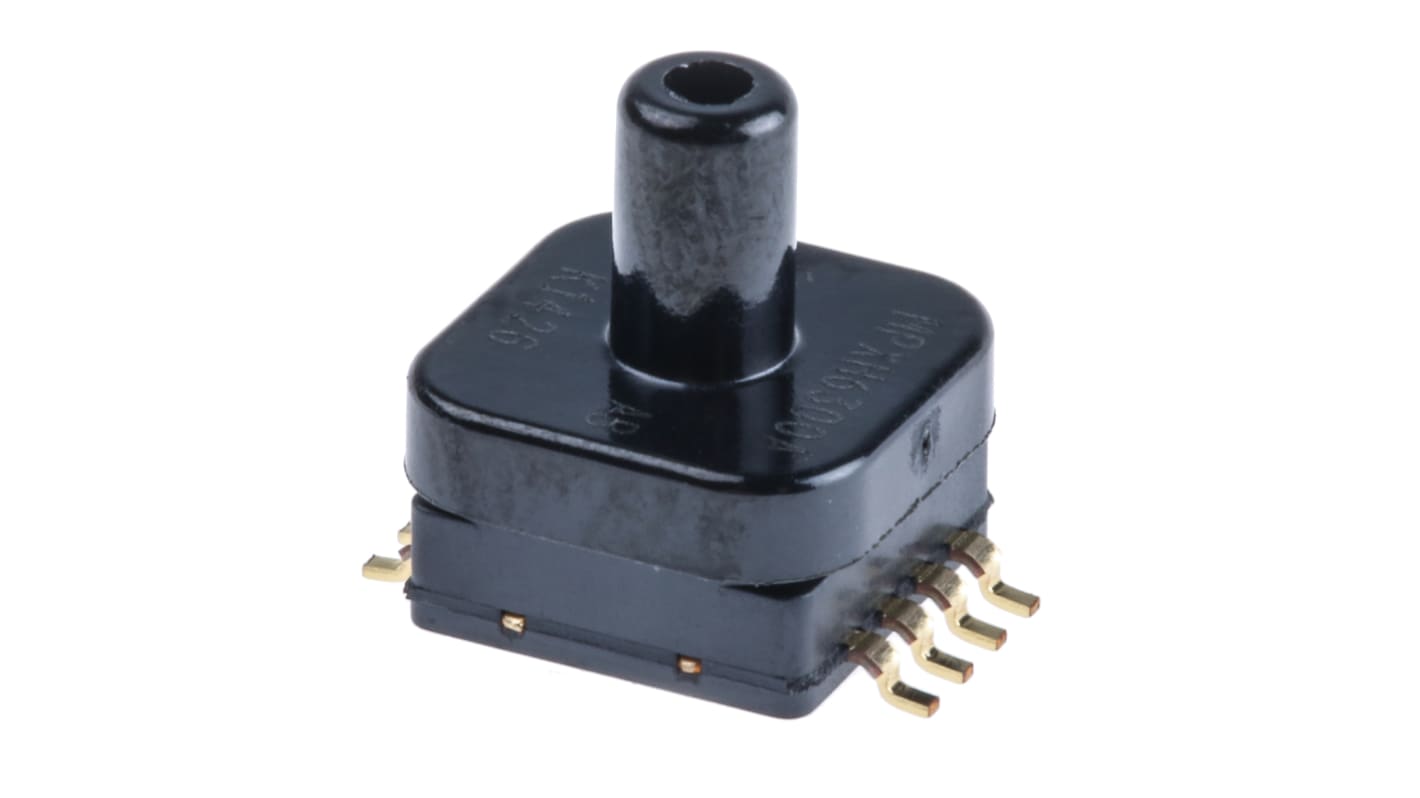

NXP Absolute Pressure Sensor, 304kPa Operating Max, Surface Mount, 8-Pin, 1200kPa Overload Max, SSOP
- RS Stock No.:
- 169-7325
- Mfr. Part No.:
- MPXH6300AC6U
- Brand:
- NXP
Discontinued
- RS Stock No.:
- 169-7325
- Mfr. Part No.:
- MPXH6300AC6U
- Brand:
- NXP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NXP | |
| Maximum Overload Pressure | 1200kPa | |
| Sensor Type | Absolute Pressure Sensors | |
| Typical Sensitivity | 16.2mV/kPa | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 8 | |
| Dimensions | 8.51 x 8.51 x 9.91mm | |
| Maximum Operating Pressure | 304kPa | |
| Maximum Operating Supply Voltage | 5.46 V | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Output Voltage | 4.9 V | |
| Minimum Operating Pressure | 20kPa | |
| Minimum Output Voltage | 4.847 V | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand NXP | ||
Maximum Overload Pressure 1200kPa | ||
Sensor Type Absolute Pressure Sensors | ||
Typical Sensitivity 16.2mV/kPa | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 8 | ||
Dimensions 8.51 x 8.51 x 9.91mm | ||
Maximum Operating Pressure 304kPa | ||
Maximum Operating Supply Voltage 5.46 V | ||
Maximum Operating Temperature +125 °C | ||
Maximum Output Voltage 4.9 V | ||
Minimum Operating Pressure 20kPa | ||
Minimum Output Voltage 4.847 V | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- US
LPG and CNG Gas Pressure Sensors 15 to 400 kPa, NXP
Pressure sensor types that can be used to support vehicles and industrial equipment utilising alternative fuels such as Liquefied Petroleum Gas (LPG) and Compressed Natural Gas (CNG).
Pressure Sensors, NXP
