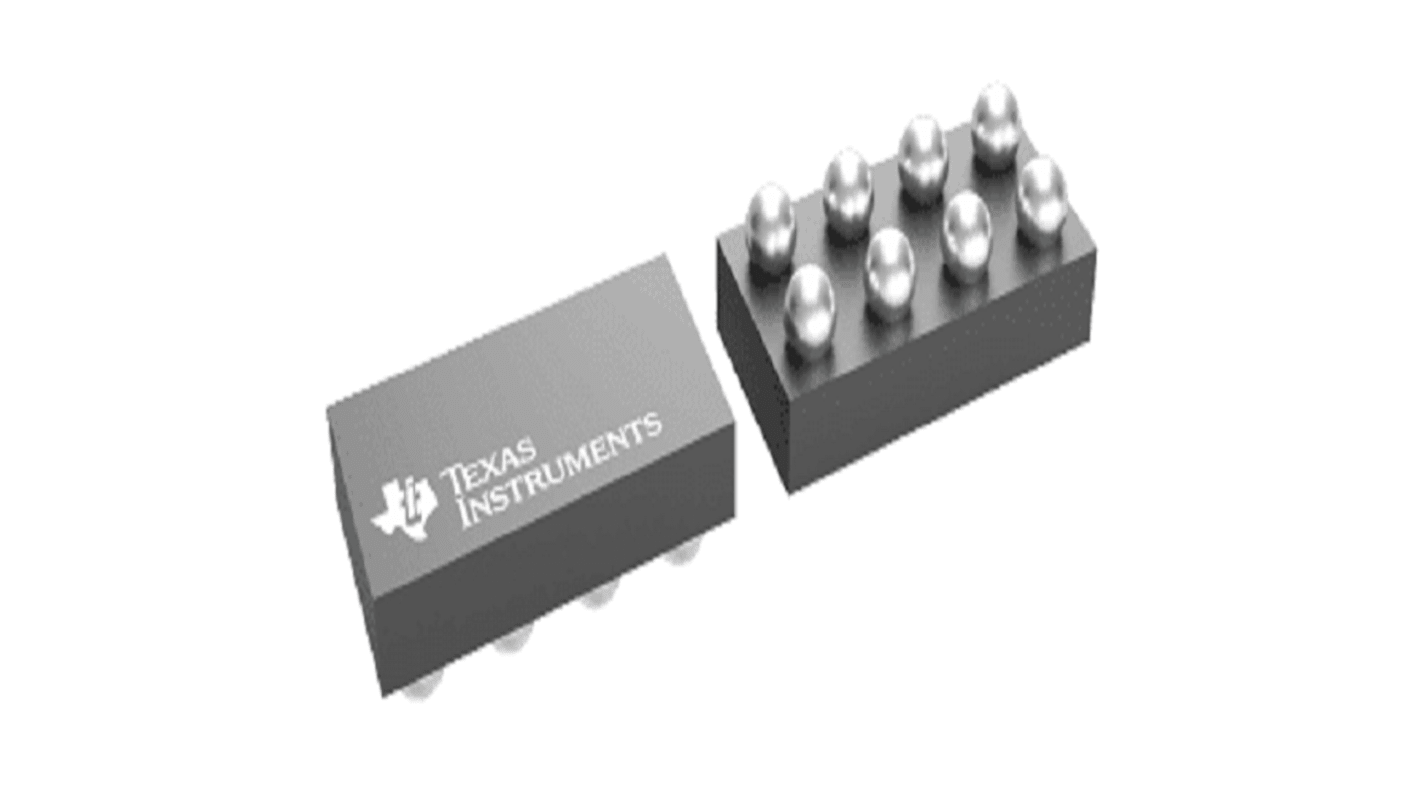

Texas Instruments TPS22971YZPT, 1Low Side/High Side, Load Switch Power Switch IC 8 Pin-Pin, DSBGA

View all Power Switch ICs
Bulk discount available

Subtotal 50 units (supplied on a continuous strip)*

£27.70

(exc. VAT)

£33.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
50 - 90£0.554
100 - 140£0.499
150 +£0.486

*price indicative

Packaging Options:
RS Stock No.:
268-3651P
Mfr. Part No.:
TPS22971YZPT
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Power Switch Type

Load Switch

Power Switch Topology

Low Side/High Side

Switch On Resistance

0.0067Ω

Number of Channels

1

Maximum Operating Supply Voltage

3.6 V

Maximum Operating Current

3A

Number of Outputs

1

Package Type

DSBGA

Pin Count

8 Pin

The Texas Instruments Power switch IC is a space saving single channel load switch with controlled and adjustable turn on slew rate and an integrated power good indicator. This device has a fast turn on time to minimize system start up and wait time. The adjustable slew rate can also be reduced to limit inrush current. A power good signal internally monitors the gate threshold and indicates when the switch is fully on. When the switch is disabled a 150 ohm on chip resistor quickly discharges the output to ground and keeps it from floating.

Quick output discharge
The ON pin controls the state of the switch
Asserting the ON pin high enables the switch
interfacing with low voltage signals
ON has a low threshold
