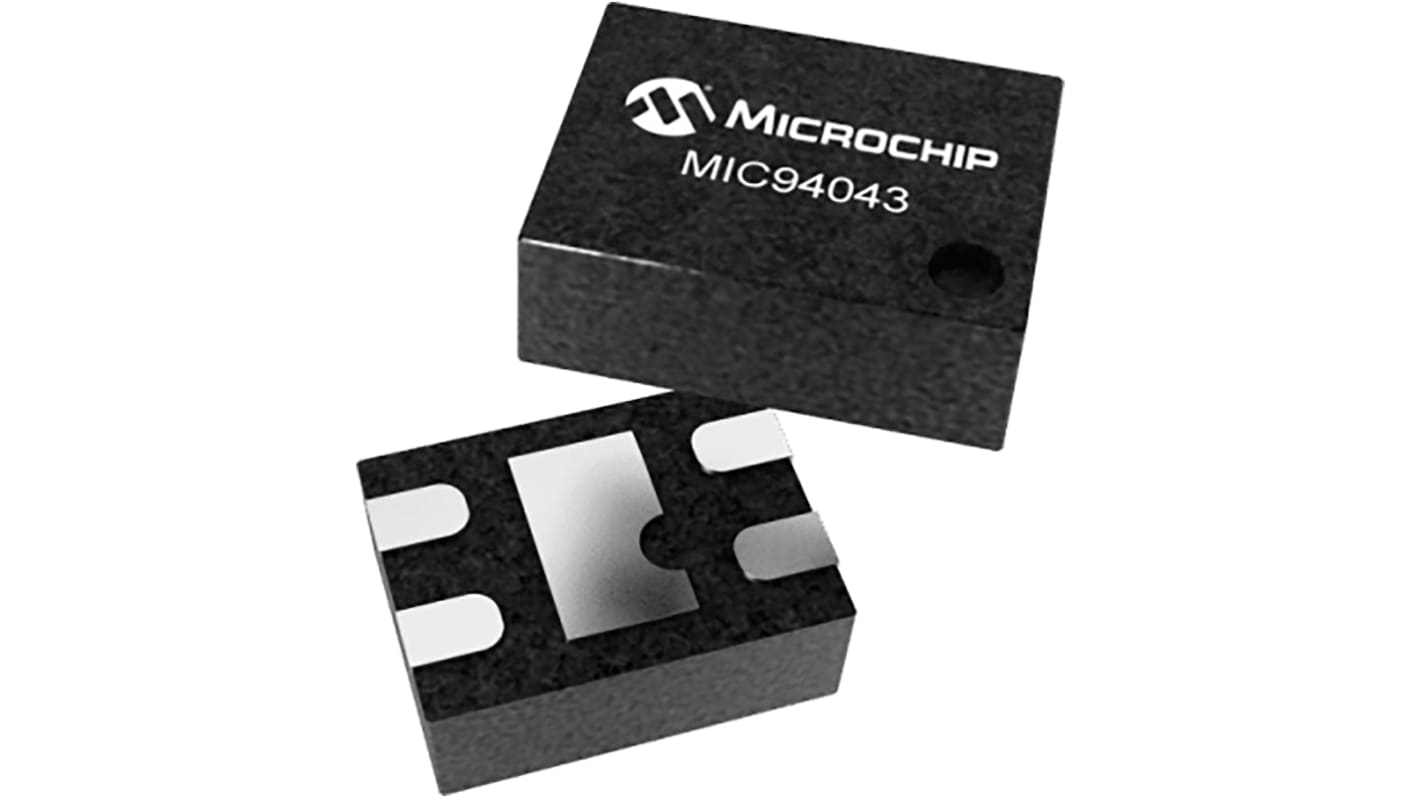

Microchip MIC94043YFL-TR, 1High Side, Load Power Switch IC 4-Pin, MLF
- RS Stock No.:
- 177-3340
- Mfr. Part No.:
- MIC94043YFL-TR
- Brand:
- Microchip
2370 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.877
(exc. VAT)
£1.052
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 20 | £0.877 | £8.77 |
| 30 - 90 | £0.834 | £8.34 |
| 100 + | £0.752 | £7.52 |
| *price indicative | ||
- RS Stock No.:
- 177-3340
- Mfr. Part No.:
- MIC94043YFL-TR
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
The MIC94040/1/2/3 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current. The MIC94040 and MIC94041 feature rapid turn on, while the MIC94042 and MIC94043 provide a slew rate controlled softstart turn-on of 100μs. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage.
28mΩ RDSON
3A continuous operating current
1.7V to 5.5V input voltage range
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Soft-Start: MIC94042, MIC94043
Load discharge circuit: MIC94041, MIC94043
Ultra fast turn off time
Junction operating temperature from -40°C to +125°C
3A continuous operating current
1.7V to 5.5V input voltage range
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Soft-Start: MIC94042, MIC94043
Load discharge circuit: MIC94041, MIC94043
Ultra fast turn off time
Junction operating temperature from -40°C to +125°C
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | Load |
| Power Switch Topology | High Side |
| Switch On Resistance | 55mΩ |
| Number of Channels | 1 |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Current | 3 (Continuous)A |
| Mounting Type | Surface Mount |
| Package Type | MLF |
| Pin Count | 4 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 1.2 x 1.2 x 0.7mm |
| Series | MIC94043 |
