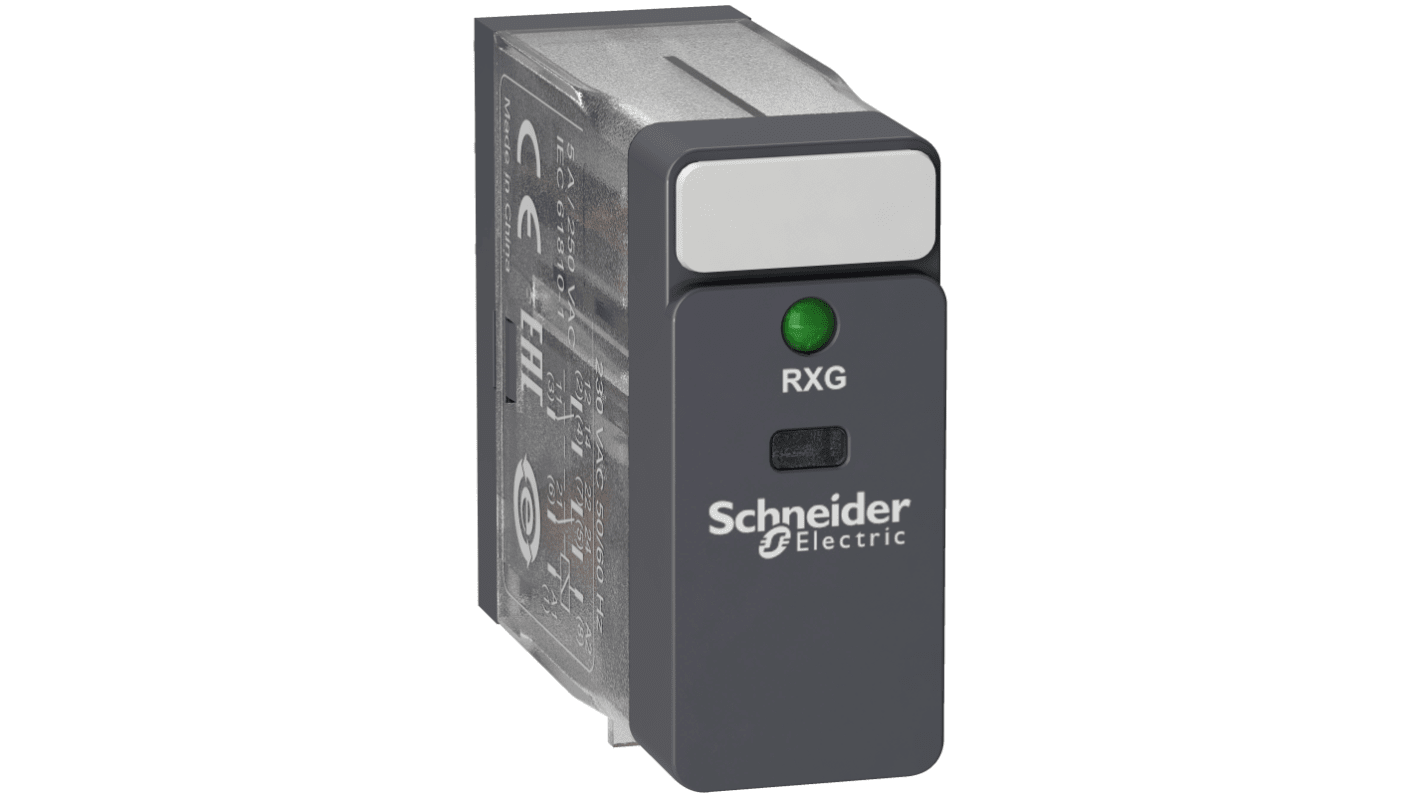

Schneider Electric Plug In Power Relay, 48V ac Coil, DPST-C/O
- RS Stock No.:
- 922-1773
- Distrelec Article No.:
- 303-02-856
- Mfr. Part No.:
- RXG23E7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£9.61
(exc. VAT)
£11.53
(inc. VAT)
FREE delivery for orders over £50.00
- 21 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 14 November 2025
Units | Per unit |
---|---|
1 + | £9.61 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 922-1773
- Distrelec Article No.:
- 303-02-856
- Mfr. Part No.:
- RXG23E7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 48V ac | |
Contact Configuration | DPST-C/O | |
Mounting Type | Plug In | |
Number of Poles | 2 | |
Latching | No | |
Series | Harmony Relay RXG | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 250V | |
Maximum Switching Voltage DC | 30V dc | |
Length | 13mm | |
Coil Resistance | 1100Ω | |
Coil Power | 820mW | |
Better World Verification | Green Premium | |
Minimum Operating Temperature | -40°C | |
Height | 30.6mm | |
Depth | 37.1mm | |
Better World Product | Yes | |
Life | 10000000 cycles | |
Maximum Operating Temperature | +70°C | |
Contact Material | Silver Alloy | |
Isolation Coil To Contact | 5kV ac | |
Standards Met | CE, CSA, CULus, cURus File E173076 CCN NRNT2, IEC/EN 61810-1, NRNT7, NRNT8, UL | |
Maximum Switching Power DC | 150 W | |
Maximum Switching Power AC | 1.25 kVA | |
Application | Industrial | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 48V ac | ||
Contact Configuration DPST-C/O | ||
Mounting Type Plug In | ||
Number of Poles 2 | ||
Latching No | ||
Series Harmony Relay RXG | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 13mm | ||
Coil Resistance 1100Ω | ||
Coil Power 820mW | ||
Better World Verification Green Premium | ||
Minimum Operating Temperature -40°C | ||
Height 30.6mm | ||
Depth 37.1mm | ||
Better World Product Yes | ||
Life 10000000 cycles | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 5kV ac | ||
Standards Met CE, CSA, CULus, cURus File E173076 CCN NRNT2, IEC/EN 61810-1, NRNT7, NRNT8, UL | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Industrial | ||
- COO (Country of Origin):
- CN
Zelio RXG Interface Relays
Test & maintenance, slim and spacing saving features.
10 A relays with 1CO contact and 5 A relays with 2CO contacts.
Sockets with separate contact terminals with screw connector connection, 35mm DIN Rail mounting and panel mounting.
Protection modules (diode, diode + LED, RC circuit or varistor+ LED) common to all RXG and RSB sockets.
A plastic maintaining clamp is supplied together for all RXG sockets.
Clip-in legends for all RXG and RSB sockets.
Schneider Electric RXG23E7
