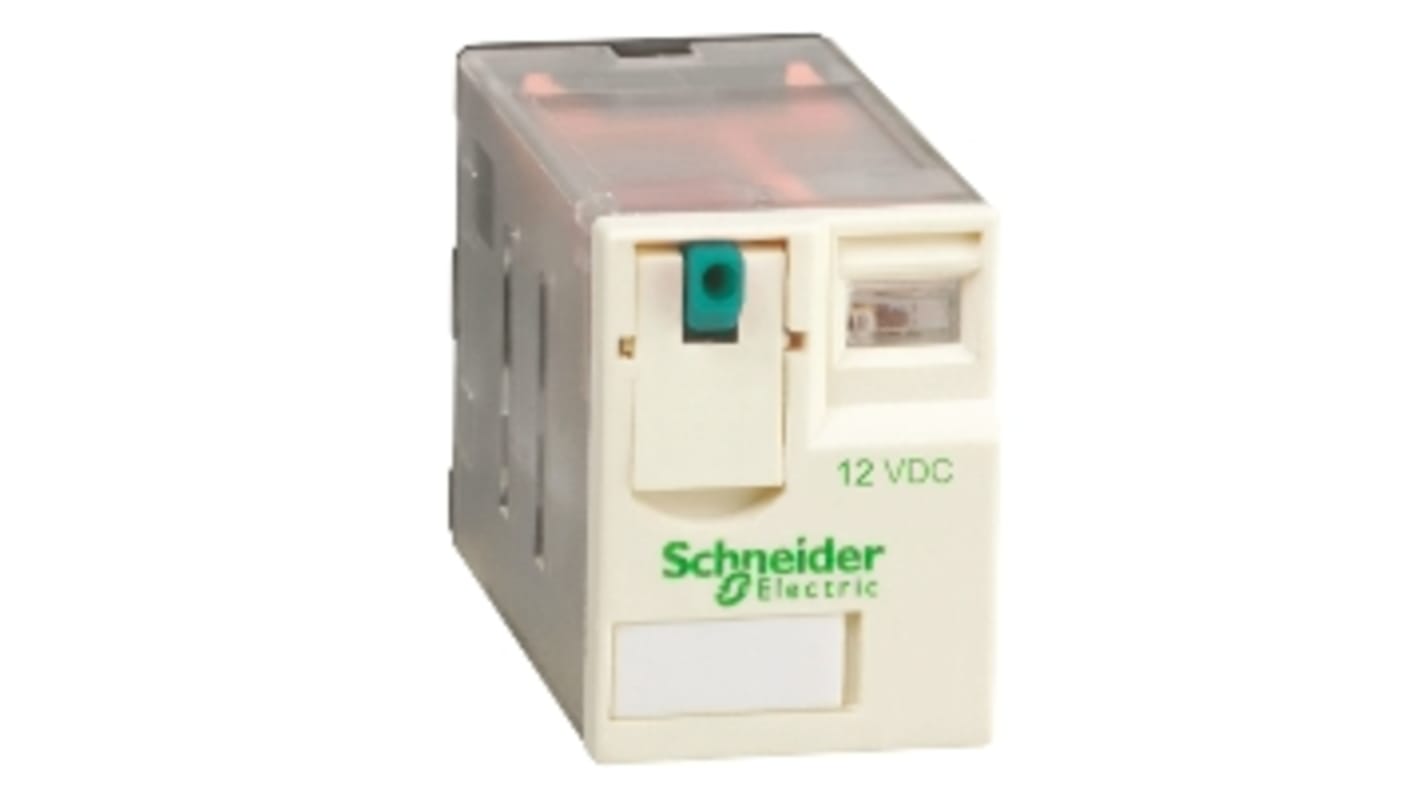

Schneider Electric Plug In Power Relay, 12V dc Coil, 3A Switching Current, 4PDT
- RS Stock No.:
- 884-1604
- Mfr. Part No.:
- RXM4GB1JD
- Brand:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
£10.31
(exc. VAT)
£12.37
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £10.31 |
| 5 - 9 | £10.03 |
| 10 + | £9.77 |
*price indicative
- RS Stock No.:
- 884-1604
- Mfr. Part No.:
- RXM4GB1JD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 12V dc | |
| Contact Configuration | 4PDT | |
| Mounting Type | Plug In | |
| Switching Current | 3A | |
| Number of Poles | 4 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V | |
| Length | 21mm | |
| Coil Resistance | 160Ω | |
| Coil Power | 900mW | |
| Maximum Operating Temperature | +55°C | |
| Height | 27mm | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL | |
| Contact Material | Gold Plated | |
| Life | 100000 cycles | |
| Depth | 47.7mm | |
| Maximum Switching Power AC | 750VA | |
| Maximum Switching Power DC | 84 W | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 12V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 3A | ||
Number of Poles 4 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Length 21mm | ||
Coil Resistance 160Ω | ||
Coil Power 900mW | ||
Maximum Operating Temperature +55°C | ||
Height 27mm | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL | ||
Contact Material Gold Plated | ||
Life 100000 cycles | ||
Depth 47.7mm | ||
Maximum Switching Power AC 750VA | ||
Maximum Switching Power DC 84 W | ||
- COO (Country of Origin):
- CN
RXM Series Miniature Relays without LED
The compact Zelio RXM miniature relays without LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC.
Range of miniature plug-in relays on base, RXZE2 type
Simple to use- no adjustment required for standard applcations
Easily integrated into current devices & can be adapted for all voltages
Test button and mechanical indicator of relay status
Bases for assembly on DIN rail or with screws to be ordered separately
Simple to use- no adjustment required for standard applcations
Easily integrated into current devices & can be adapted for all voltages
Test button and mechanical indicator of relay status
Bases for assembly on DIN rail or with screws to be ordered separately
