SE Relays Magnecraft Panel Mount Power Relay, 24V dc Coil, 50A Switching Current, DPDT

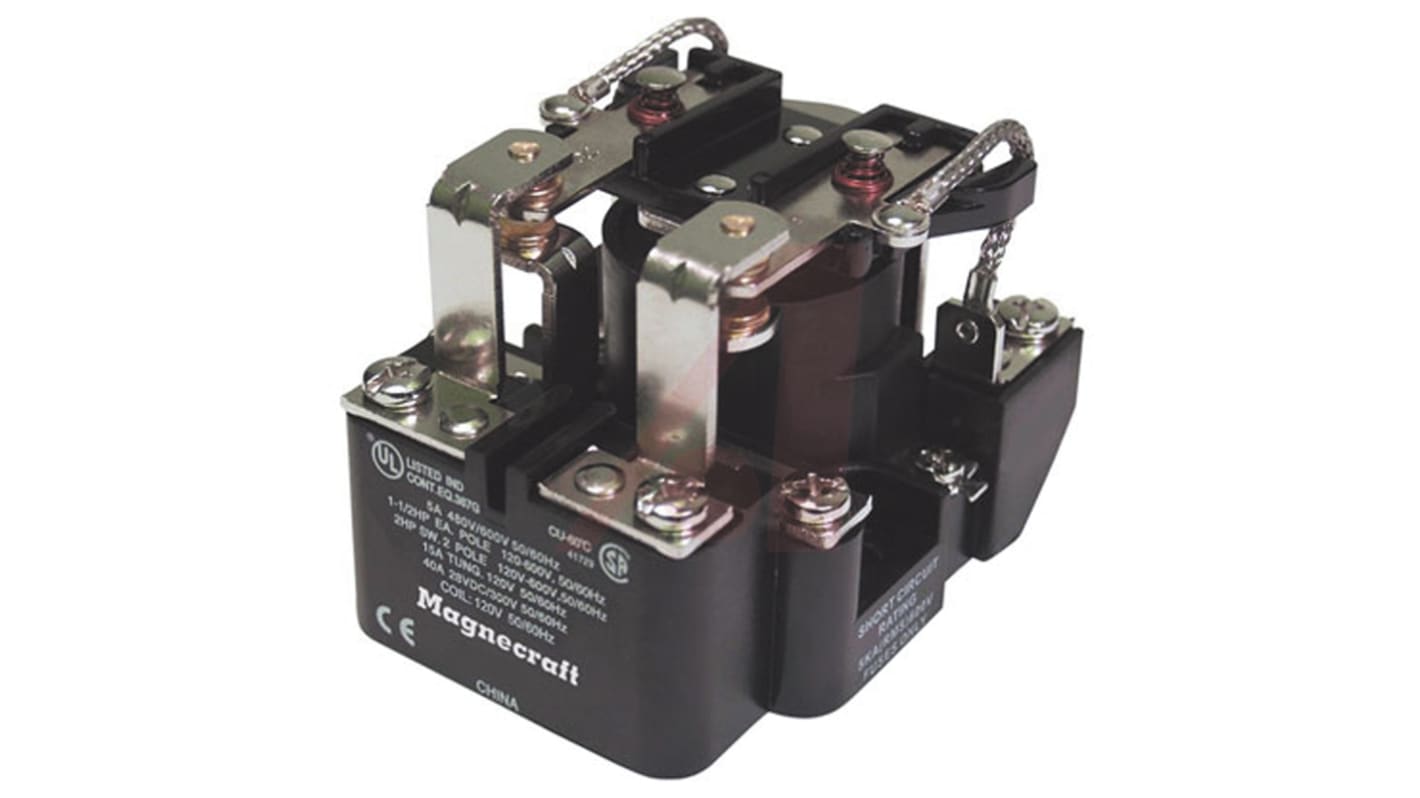

Image representative of range

View all Power Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
871-7576
Mfr. Part No.:
W199PX-13
Brand:
SE Relays Magnecraft
Find similar products by selecting one or more attributes.
Select all

Brand

SE Relays Magnecraft

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

Panel Mount

Switching Current

50A

Number of Poles

2

Latching

No

Terminal Type

Screw

Maximum Switching Voltage AC

600V

Maximum Switching Voltage DC

28V

Length

79.2mm

Coil Resistance

260Ω

Coil Power

4W

Life

6000 (Electrical) Operations

Height

58.67mm

Depth

63.5mm

Contact Material

Silver Alloy

Isolation Coil To Contact

2.2kV ac

Maximum Operating Temperature

+55°C

Series

W199

Minimum Operating Temperature

-40°C

Maximum Switching Power AC

1-1/2 hp

Application

Power

COO (Country of Origin):
CN

199 Series


The 199 series open type, heavy duty power relays offer high-capacity switching with high dielectric strength.

High-power contacts
Riveted construction
Blowout magnet option
RoHS compliant
