RS PRO PCB Mount Non-Latching Relay, 12V dc Coil, 2A Switching Current, 4PDT
- RS Stock No.:
- 819-8990
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£28.56
(exc. VAT)
£34.27
(inc. VAT)
- RS Stock No.:
- 819-8990
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 12V dc | |
| Contact Configuration | 4PDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 2A | |
| Number of Poles | 4 | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V | |
| Length | 20.32mm | |
| Standards Met | RoHS Compliant | |
| Depth | 15.24mm | |
| Contact Material | Gold Plated | |
| Maximum Switching Power DC | 60 W | |
| Maximum Switching Power AC | 62.5VA | |
| Application | Telecommunications | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 12V dc | ||
Contact Configuration 4PDT | ||
Mounting Type PCB Mount | ||
Switching Current 2A | ||
Number of Poles 4 | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V | ||
Length 20.32mm | ||
Standards Met RoHS Compliant | ||
Depth 15.24mm | ||
Contact Material Gold Plated | ||
Maximum Switching Power DC 60 W | ||
Maximum Switching Power AC 62.5VA | ||
Application Telecommunications | ||
- COO (Country of Origin):
- GB
C-MT4 Series Relay
Relay module to replace the obsolete Axicom MT4 / Siemens V23104 series of 4 pole telecom relays. The Cephos C-MT4 module dimensions are: 20.32 x 15.24mm, identical to the original MT4 / V23104 footprints.

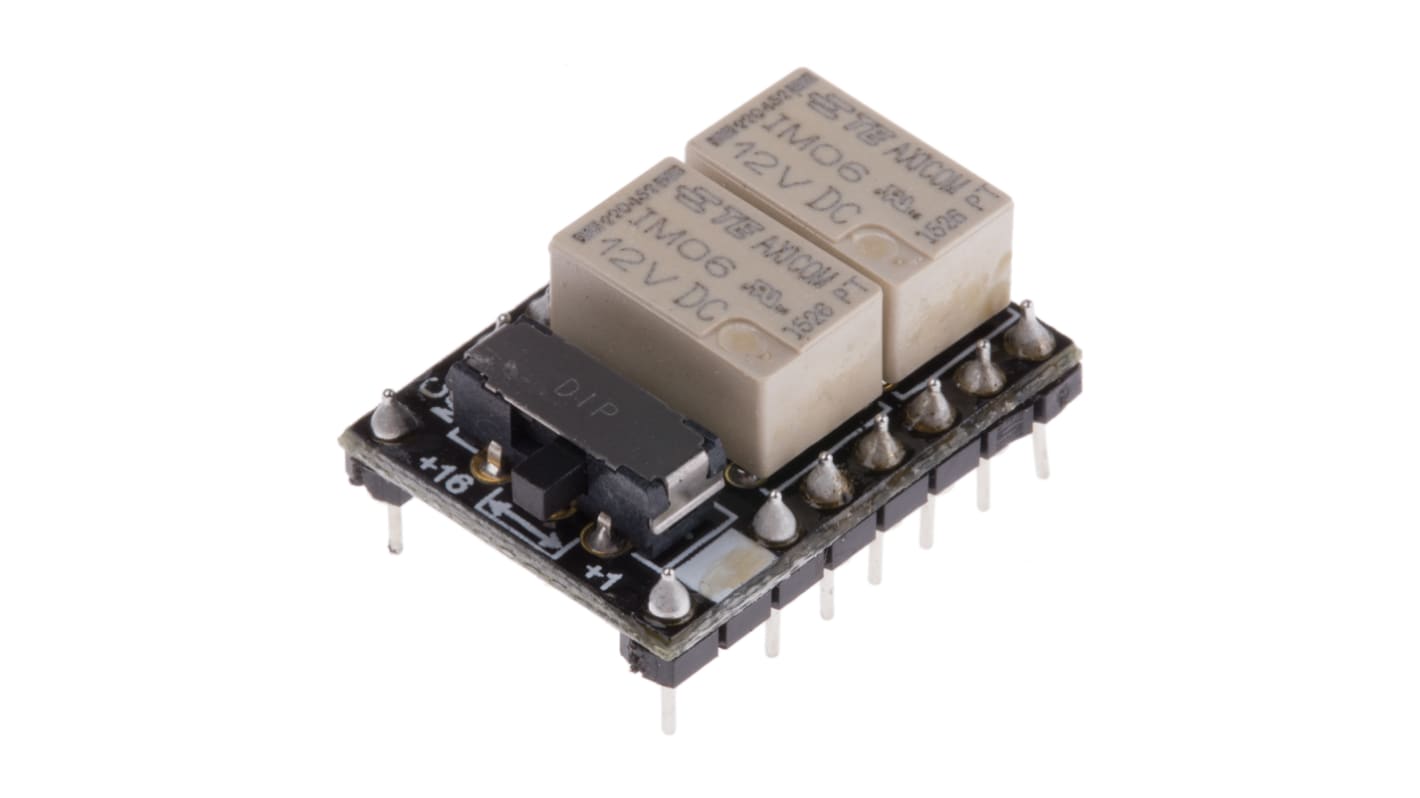

The C-MT4 replacement module consists of two IM series relays on a 0.8mm FR4 PCB with pinning to match the original MT4 together with a miniature slide switch to select the polarity of the IM series relay as the original MT4 / V 23104 relays were not polarised
The C-MT4 replacement module consists of two IM series relays on a 0.8mm FR4 PCB with pinning to match the original MT4 together with a miniature slide switch to select the polarity of the IM series relay as the original MT4 / V 23104 relays were not polarised
Direct replacement for the Axicom MT4-C93801, MT4-C93802, MT4-C93803 and Siemens V23104 relays
