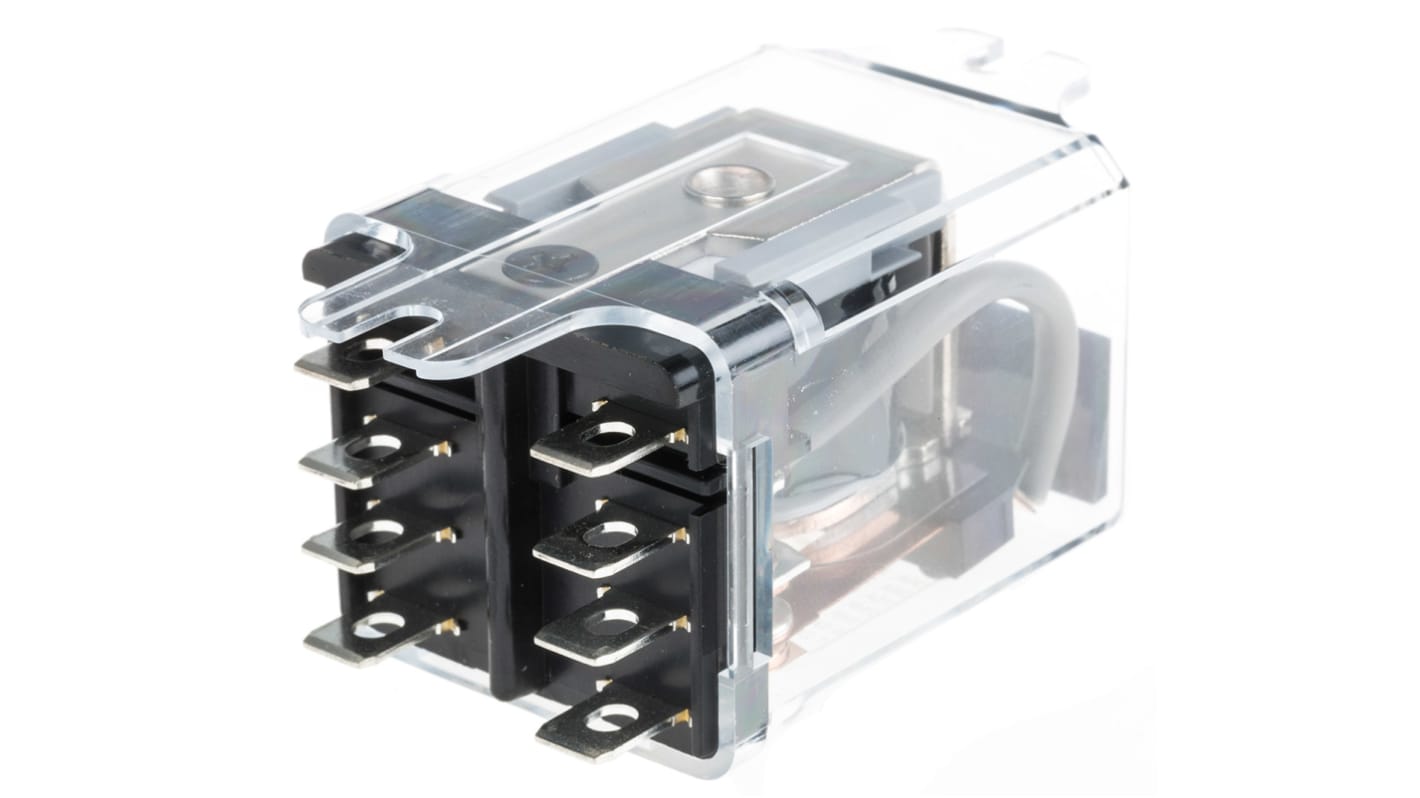

Schneider Electric Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, DPDT
- RS Stock No.:
- 814-8346
- Distrelec Article No.:
- 304-02-107
- Mfr. Part No.:
- 300XBXC1-24D
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 814-8346
- Distrelec Article No.:
- 304-02-107
- Mfr. Part No.:
- 300XBXC1-24D
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Flange Mount | |
| Switching Current | 30A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Maximum Switching Voltage AC | 600V | |
| Length | 38.89mm | |
| Coil Resistance | 300Ω | |
| Coil Power | 3.4W | |
| Isolation Coil To Contact | 2.5kV ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +55°C | |
| Life | 6000 Operations | |
| Height | 35.7mm | |
| Depth | 48.4mm | |
| Contact Material | Silver Alloy | |
| Standards Met | CSA, UL | |
| Maximum Switching Power AC | 3.4 VA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type Flange Mount | ||
Switching Current 30A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 600V | ||
Length 38.89mm | ||
Coil Resistance 300Ω | ||
Coil Power 3.4W | ||
Isolation Coil To Contact 2.5kV ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +55°C | ||
Life 6000 Operations | ||
Height 35.7mm | ||
Depth 48.4mm | ||
Contact Material Silver Alloy | ||
Standards Met CSA, UL | ||
Maximum Switching Power AC 3.4 VA | ||
Application Power | ||
- COO (Country of Origin):
- CN
Schneider Electric Non-Latching Relay, 2 Poles, 30A Switching Current - 300 Series - 300XBXC1-24D
This non-latching relay from Schneider Electric remains in a NO (normally on) position when current is passing through it. This makes it a good choice for keyboards and other devices that are pushbutton operated. The robust unit features an extended mechanical and electrical life for improved reliability – its polycarbonate enclosure offers protection against dust and moisture and make it better able to withstand everyday wear and tear. Solder terminals allow for a quick electrical connection that's strong enough to perform in harsh industrial environments.
Features & Benefits
• Reliable silver-alloy contacts with good electrical conductibility for improved energy transfer
• Wide operating temperature range of -40°C to +85°C for use in a broad range of environments
• Maximises packing efficiency in a control panel with space-saving dimensions of 38.89 (L) x 35.72 (H) x 48.42mm (D)
• Wide operating temperature range of -40°C to +85°C for use in a broad range of environments
• Maximises packing efficiency in a control panel with space-saving dimensions of 38.89 (L) x 35.72 (H) x 48.42mm (D)
Applications
• Medical devices
• Household appliances
• Telecommunication equipment
• Robotics
• Household appliances
• Telecommunication equipment
• Robotics
What are the most important factors to consider when choosing a relay?
There are several important factors to consider when choosing a relay. These include the coil voltage – if this is too high, it could damage the components. The coil power is also important and should match the power of the circuit you're using it in.
