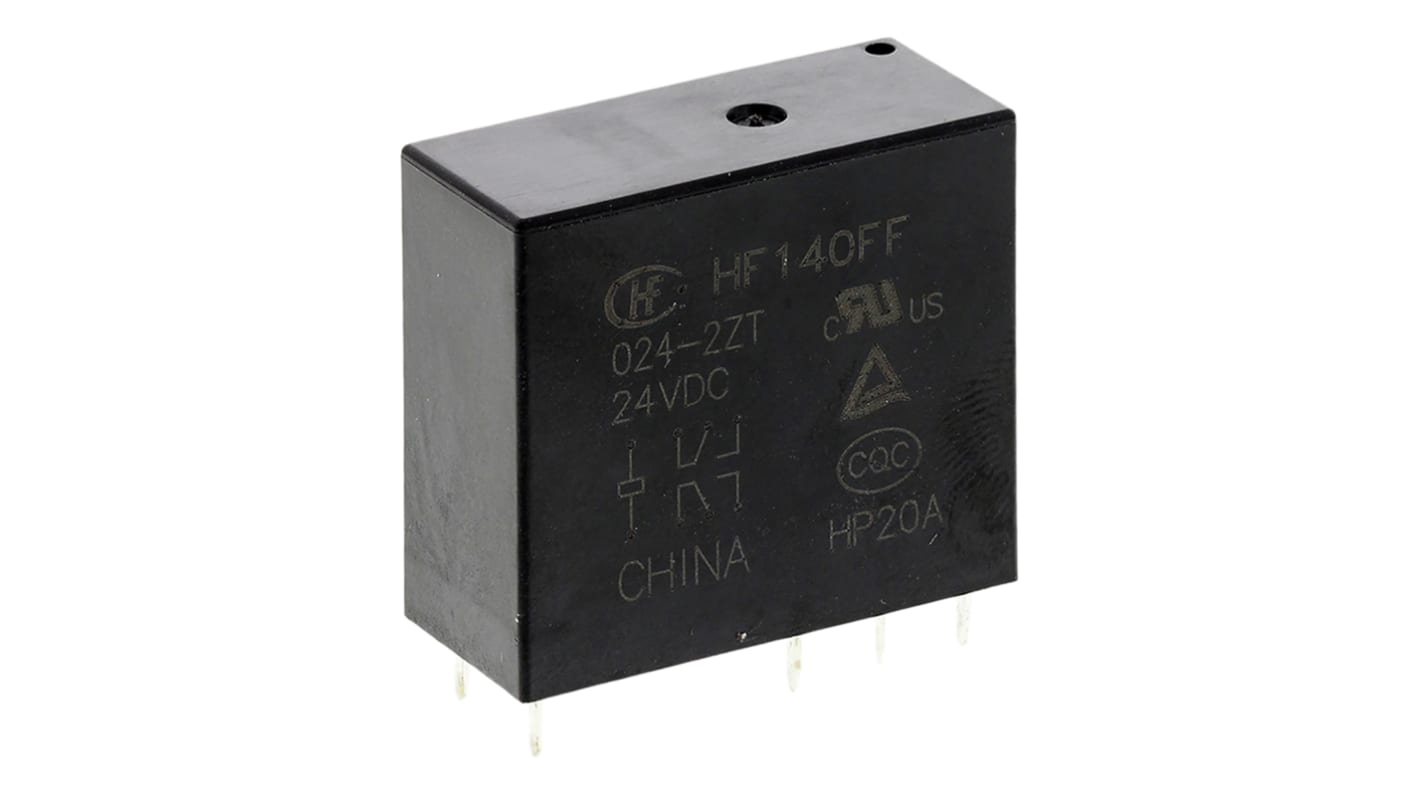

RS PRO PCB Mount Non-Latching Relay, 24V Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 800-4498
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 800-4498
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 2 | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 29mm | |
| Coil Resistance | 1.1 kΩ | |
| Coil Power | 530mW | |
| Life | 100000 (Electrical) Operations, 100000000 (Mechanical) Operations | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 5kV ac | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CQC, CULus, RoHS Compliant | |
| Contact Material | Silver Alloy | |
| Height | 26.3mm | |
| Depth | 13mm | |
| Maximum Switching Power DC | 240 W | |
| Maximum Switching Power AC | 2.5 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 30V dc | ||
Length 29mm | ||
Coil Resistance 1.1 kΩ | ||
Coil Power 530mW | ||
Life 100000 (Electrical) Operations, 100000000 (Mechanical) Operations | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 5kV ac | ||
Minimum Operating Temperature -40°C | ||
Standards Met CQC, CULus, RoHS Compliant | ||
Contact Material Silver Alloy | ||
Height 26.3mm | ||
Depth 13mm | ||
Maximum Switching Power DC 240 W | ||
Maximum Switching Power AC 2.5 kVA | ||
Application Power | ||
- COO (Country of Origin):
- CN
Miniature Intermediate Power Relays
Contacts: 2 Form C, DPDT
5 mm pinning
5 kV dielectric strength (between coil and contacts)
Surge voltage up to 10 kV (between coil and contacts)
5 mm pinning
5 kV dielectric strength (between coil and contacts)
Surge voltage up to 10 kV (between coil and contacts)
Approvals
UL (File no. E134517), TUV (File no. R50055991), CQC (File no. CQC02001001951)
